Model
2711P-K6M5D8

Item specifics

Brand
Allen Bradley
Warranty
365 Days
Product Line
PanelView Plus 6
Size
5.7 Inch
Supply
PanelView Plus 6 Membrane Keypad Switch
Parts
2711P-K6M5D8 Membrane Keypad Switch

Review

Description

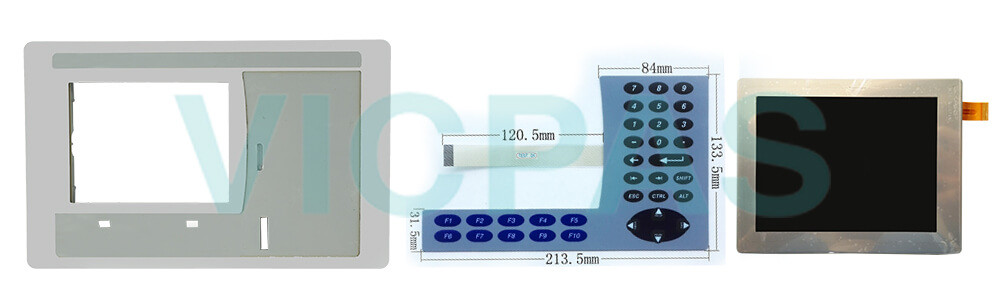

2711P-K6M5D8 PanelView Plus 6 Membrane Keyboard Keypad Switch LCD Display Plastic Case Cover Repair Replacement

Order each part separately is available

2711P-K6M5D8 PanelView Plus 6 Membrane Keyboard Keypad Switch LCD Display Plastic Case Cover Label Sticker Protection Board Bracket Gasket and Mounting Levers Repair Replacement

The Allen-Bradley 2711P-K6M5D8 PanelView Plus 6 HMI (Human-Machine-Interface) provides a convenient machine interface for monitoring appliances. It displays information graphically via a 5.7-inch color active matrix display with a 111mm x 84mm display area and 320 x 240-pixel (18-bit color graphics) resolution. The 2711P-K6M5D8 also has a display brightness of 300 cd/m2 Nits and it is designed with a non-replaceable CCFL backlight that lasts for 50,000 hours. The 2711P-K6M5D8 has a battery-backed real-time internal clock with ±2 minutes per month of accuracy. It is built with an NEC VR5532A MIPS CPU that has a processing speed of 350MHz. It has pre-loaded FactoryTalk View Studio for Machine Edition and it supports FactoryTalk View Studio for the ME software. The 2711P-K6M5D8 stores the user’s data and applications via its 64MB non-volatile user memory and it has a 64 MB PC100 SDRAM SODIMM volatile memory for application processes. It allows for the easy input of user settings and data by using its stainless steel domed keypads with functional (F1-F10), navigational, and alpha-numerical keys which are built to withstand an operating shock of 340G.


The 2711P-K6M5D8 connects to devices using a single 1 USB-A, V1.1 port, and it communicates using its base-configured RS-232 and the 10/100 Mbps Ethernet communication ports and it supports an “ADD-ON” Data Highway Communication module (DH-485) for enhanced network capacity. It has a non-isolated AC voltage power supply with an input range of 85-265V AC at 47-63Hz with a maximum power consumption of 60VA. The 2711P-K6M5D8 has an operating temperature range of 0-55 °C at 5-95% non-condensing relative humidity, and it can be stored at a temperature range of -25-70 °C. It is designed to resist an operational shock of 15G, and a vibration of 2G at 57-500Hz. The 2711P-K6M5D8 is c-UL, CE and UL-certified, and it weighs 930g (2.05lb) with dimensions of 167mm x 266mm x 98mm.


VICPAS supply Panelview Standard 6 2711P-K6M5D8 membrane keypad switch, Bracket, Label, LCD Display Panel, Plastic Case Body, Gasket, Protection Board, Sticker and Mounting Levers for repair replacement, make the HMI running. We provide a 1-year warranty of the most product, which include most of touch screen panel, membrane keypad, LCD display and protective case shell housing.





Specifications:

The table below describes the parameters of the 2711P-K6M5D8 PanelView Plus 6 membrane keyboard keypad switch.

Part Number: 2711P-K6M5D8
Product Line: PanelView Plus 6
Screen Diagonal: 14 in
Warranty: 365 Days Warranty
Input Power: 24 VDC
Software: Panelbuilder 32
Operating Temp: 32-131 F (0-55 C)
Input Type: Keypad
Communication: Remote I/O and RS-232 Printer Port
Display Dimensions: 10.0 x 7.5 in (255 x 191 mm)


Related PanelView Plus 6 Series Part No. :

PanelView Plus 6 HMI Description Inventory status
2711P-K4C5A8 Allen Bradley Panel Plus 6 Membrane Keypad In Stock
2711P-K4C5D8 Allen Bradley Panel View Plus 6 Keypad Repalcement In Stock
2711P-K4C20A8 PanelView Plus 6 Membrane Switch Replacement Kit In Stock
2711P-K4C20D8 PanelView Plus 6 Membrane Keyboard Keypad Repair In Stock
2711P-K4M5A8 PanelView Plus 6 Membrane Keypad Switch Repair Kit Available Now
2711P-K4M5D8 Allen Bradley PanelView Plus 6 Operator Panel Keypad Replacement In Stock
2711P-K4M20A8 PanelView Plus 6 Operator Keyboard Replacement Available Now
2711P-K4M20D8 Allen Bradley Panel View Plus 6 Keyboard Membrane In Stock
2711P-K6C5A8 PanelView Plus 6 Membrane Keyboard Repair Kit Plastic Shell LCD In Stock
2711P-K6C5A9 PanelView Plus 6 Membrane Keyboard Keypad LCD Display Case Available Now
2711P-K6C5D8 Allen Bradley Panel View Plus 6 Keypad Plastic Case LCD Display Screen In Stock
2711P-K6C5D9 PanelView Plus 6 Switch Membrane HMI Case LCD Display Screen In Stock
2711P-K6C20A8 PanelView Plus 6 Touch Screen Keypad Front Cover LCD Display Panel Available Now
2711P-K6C20A9 Allen Bradley PanelView Plus 6 Membrane Keyboard Plastic Case LCD Screen In Stock
2711P-K6C20D8 PanelView Plus 6 Membrane Keyboard Keypad Housing LCD Display Screen Available Now
2711P-K6C20D9 Allen Bradley Panel View Plus 6 Operator Panel Keypad Front Cover LCD In Stock
2711P-K6M5A8 Allen Bradley Panel View Plus 6 Keypad Plastic Shell LCD Screen In Stock
2711P-K6M5D PanelView Plus 6 Membrane Switch Plastic Case LCD Display In Stock
2711P-K6M5D8 PanelView Plus 6 Switch Membrane HMI Case LCD Display Screen In Stock

FAQ:

Question: What are the status indicators for 2711P-K6M5D8?

Answer: 2711P-K6M5D8 has two indicators: a green COMM indicator and a red fault indicator.


Question: What is the voltage rating of the 2711P-K6M5D8 Allen Bradley ?

Answer: The 2711P-K6M5D8 has a voltage rating of 85 to 264 Volts AC.


Question: Does the 2711P-K6M5D8 Panelview Plus 6 have a replacement backlight?

Answer: Yes, the 2711P-K6M5D8 has a replacement backlight, although different series have different replacement parts. 2711P-K6M5D8 has the following replacement part number: 2711-NL4, Series B: 2711-NL6, Series C: 2711-NL7, Series D, and Series E: 2711NL9, and for Series F: 2711-NL10.


Question: How many touch cells does 2711P-K6M5D8 have?

Answer: 2711P-K6M5D8 has 384 touch cells in 24 columns by 16 rows. The touch cell size is 33 x 37 pixels.


Question: What is the 2711P-K6M5D8 PanelView Plus 6 touch screen panel price?

Answer: Submit a fast quote, send VICPAS an email for best price.
