6AG1642-0BD01-2AX0 Siemens SIMATIC HMI TP177B 4" Touchscreen
- Model
- 6AG1642-0BD01-2AX0
Item specifics
- Warranty
- 365 Days
- Brand
- Siemens
- Product Line
- TP177B 4
- Supply
- Siemens TP177B HMI Touch Panel And Protecitve film
- Size
- 4 inch
- model
- 6AG1642-0BD01-2AX0
Review
Description

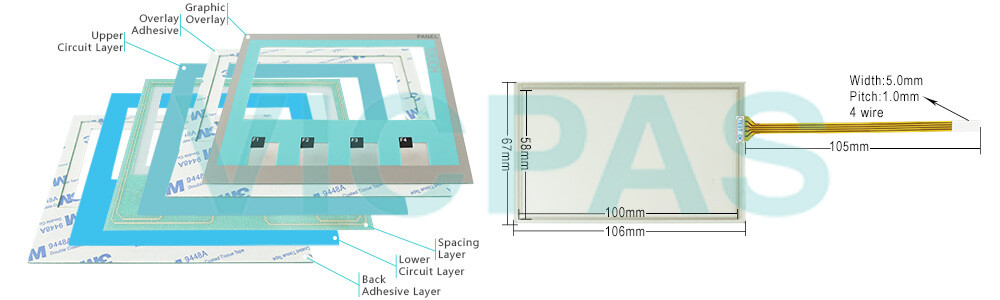

6AG1642-0BD01-2AX0 Siemens SIMATIC HMI TP177 4" Touch Screen Panel, Membrane Keypad, Plastic Shell, Power Supply Connector, Gasket, Mounting Clips, Screws and LCD Display Repair Replacement
Order each part separately is available
SIPLUS" "HMI TP 177B4" color PN/DP-10...+60°C with a conformal coating based on6AV6642-0BD01-3AX0 TFT 256 Color-16: 9-Display, MPI/PROFIBUS DP protocol RS485/RS422/USB interface Ethernet10/100 interface Printer interface slot configurable for MM Card with WinCC flexible 2008
Touch Panel TP 177B replaces the Touch Panel TP 070/TP 170micro. It can be mounted vertically to provide additional applications. This feature enables its use even when space is restricted. Rature ranges is presently not available.SIPLUS extreme is the product family with ruggedized and refined components on the basis of SIMATIC standard products.
Our new Micro Panels are tailored to applications with SIMATIC S7-200 Micro PLC and provide operating and monitoring functions for small-scale machines and plants. Shortconfiguration and commissioning times, and their configuration in WinCC flexible formhighlights of these panels. In addition, the panels support up to 32 configuration languages and five online languages, including the Asian and Cyrillic character sets

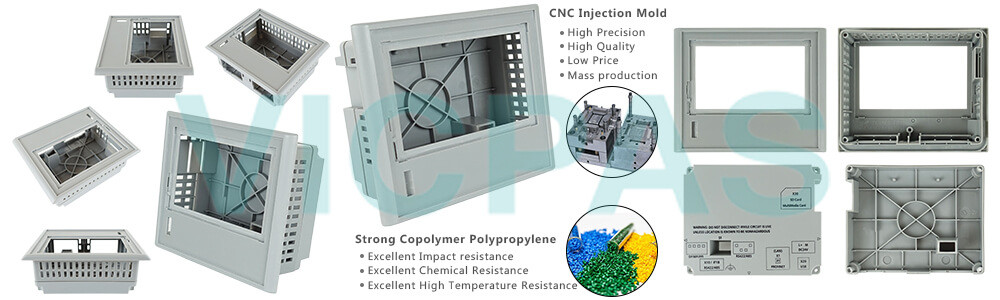

VICPAS supply 6AG1642-0BD01-2AX0 Siemens TP177 touch panel, Overlay, Mounting Clips, HMI Case, Power Supply Connector, Gasket, Screws and LCD display. All of them with VICPAS 365-day warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the 6AG1642-0BD01-2AX0 Siemens TP177 HMI Parts.
| Part Number : | 6AG1642-0BD01-2AX0 |
| Size | 4" |
| Display | TFT |
| Warranty: | 365 days Warranty |
| Product Line: | Siemens TP177 |
| Resolution: | 480 x 272; |
| Number of colors: | 256 |
| Control elements: | Touch screen and membrane keyboard |
| MTBF of Backlight: | 30 000 h |
| PLC Connection: | SIMATIC S7-200 |
Related Simatic TP177 Part No. :
| Siemens TP177 4" | Description | Inventory status |
| 6AG1642-0BD01-2AX0 | SIPLUS TP177B 4" color PN/DP | In Stock |
| 6AV6642-0BD01-3AX0 | TP177B 4" PN/DP COLOR | In Stock |
| 6AG1642-0BD01-4AX0 | SIPLUS TP177B 4" color PN/DP | In Stock |
| SIMATIC HMI TP177 4" | Description | Inventory status |
Siemens TP177 HMI Manuals PDF Download:
FAQ:
Question:What is the use of Siemens TP177 Protective membrane?
Answer:A protective membrane is available for the HMI device touch screens. The relevant orderinginformation is provided in the Siemens Catalog ST 80. The protective membrane is notincluded in the HMI device package.The self-adhesive membrane prevents the screen from being scratched and soiled. The matsurface of the membrane reduces reflections under unfavorable lighting conditions.The protective membrane can be removed without leaving any adhesive residue on thescreen.
Question: Which software options are available for the Siemens TP177?
Answer:"WinCC flexible 2004," for example, refers to the configuration software.The term "WinCC flexible" is used in a general context. The full name, for example"WinCC flexible 2004", is always used when it is necessary to differentiate betweendifferent versions of the configuration software.
Question: What is the 6AG1642-0BD01-2AX0 Siemens TP177 HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
