Model
6AG1642-0BA01-4AX0

Item specifics

Warranty
365 Days
Brand
Siemens
Product Line
SIPLUS HMI TP177B color PN/DP
Supply
Siemens TP177 HMI Touch Panel and Protecitve film
Size
5.7 inch
model
6AG1642-0BA01-4AX0
Parts
touchscreen, protective film, lcd display, plastic case housing

Review

Description

6AG1642-0BA01-4AX0 Siemens SIPLUS HMI TP177B color PN/DP Touch Screen Panel, Overlay, LCD Bracket, Mounting Clips, Power Supply Connector, LCD Gasket, Case Gasket, Plastic Cover, Screws and LCD Display Repair Replacement

Order each part separately is available

6AG1642-0BA01-4AX0 Siemens SIPLUS HMI TP177B color PN/DP Touch Screen Panel, Overlay, Plastic Shell, Power Supply Connector, Case Gasket, LCD Gasket, Mounting Clips, LCD Bracket, Screws and LCD Display Repair Replacement


6AG1642-0BA01-4AX0 SIPLUS HMI SIPLUS HMI TP177B color PN/DP for medial exposure based on 6AV6642-0BA01-1AX0


The 177 series of panels represents a further advance in the development of the well-known170 HMI devices. The new TP 177A, TP 177B and OP 177B panels make for more efficient use of text or graphic-based projects for simple to medium-level HMI operating and monitoring tasks in machines and plants. Projects with Asian and Cyrillic character sets can be configured, as usual. The ability to vertically mount the TP 177A and the non-volatilealarm buffer of the TP 177B offer new application possibilities. In addition, the TP 177B andOP 177B – depending on the models – provide interfaces for connecting to PROFIBUS andPROFINET.


The TP 177A, TP 177B and OP 177B panels offer quick commissioning times, large usermemory and high performance, and they are optimized for projects based on WinCC flexible.

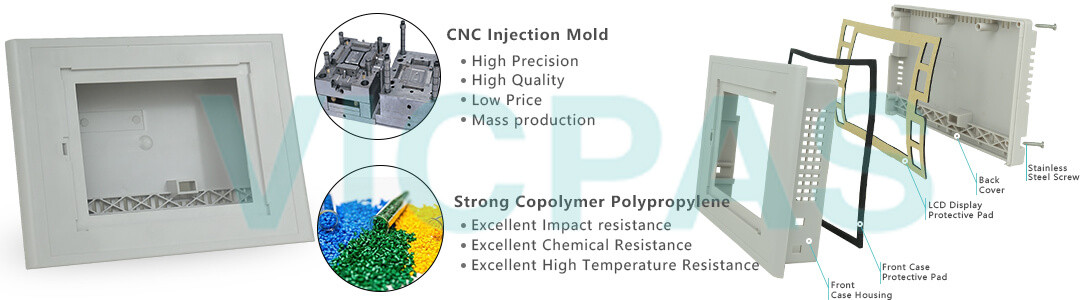

VICPAS supply 6AG1642-0BA01-4AX0 Siemens SIPLUS HMI TP177B color PN/DP touch panel, Overlay, Case Gasket, Enclosure, LCD Gasket, Mounting Clips, LCD Bracket, Power Supply Connector, Screws and LCD display. All of them with VICPAS 365 days warranty and support Urgent Worldwide Shipping.






Specifications:

The table below describes the parameters of the 6AG1642-0BA01-4AX0 Siemens SIPLUS HMI TP177B color PN/DP HMI Parts.

Part Number : 6AG1642-0BA01-4AX0
Size 5.7 inch;
Display STN
Warranty: 365 days Warranty
Product Line: Siemens TP177
Resolution: 320 x 240;
Number of colors: 256
Control elements: Touch screen
MTBF: 30 000 h
PLC Connection: SIMATIC S7-200


Related Simatic TP177 Part No. :

Siemens TP177 Description Inventory status
6AV6640-0CA11-0AX1 TOUCH PANEL TP177 MICRO In Stock
6AV6640-0CA11-0AX0 TP177 MICRO In Stock
6AV6642-0AA11-0AX1 TOUCH PANEL TP177A 6" In Stock
6AV6642-5BA10-0DU0 SIPLUS HMI TP177B COLOR PN/DP In Stock
6AV6642-0BC01-1AX0 TP177B DP MONO In Stock
6AG1642-0BC01-4AX1 SIPLUS TP177B mono DP In Stock
6AV6642-0BA01-1AX1 TP177B 6" PN/DP COLOR In Stock
6AV6642-0BC01-1AX1 TP177B 6" DP BLUE MODE In Stock
6AG1642-0BA01-4AX0 SIPLUS HMI TP177B color PN/DP In Stock
6AV6642-0BA01-1AX0 TP177B PN/DP COLOR In Stock
6AG1642-0BA01-4AX1 SIPLUS HMI TP177B COLOR PN/DP In Stock
6AV6642-0AA11-0AX0 TOUCH PANEL TP177A 6" In Stock
6AV6642-8BA10-0AA0 TP177B PN/DP COLOR INOX In Stock
SIMATIC HMI TP177 Description Inventory status

Siemens TP177 HMI Manuals PDF Download:

  • 6AG1642-0BA01-4AX0 Siemens TP177 datasheet pdf
  • Siemens Simatic TP177 Panel manual


  • FAQ:

    Question:What is the use of Siemens TP177 Protective membrane?

    Answer:A protective membrane is available for the HMI device touch screens. The relevant orderinginformation is provided in the Siemens Catalog ST 80. The protective membrane is notincluded in the HMI device package.The self-adhesive membrane prevents the screen from being scratched and soiled. The matsurface of the membrane reduces reflections under unfavorable lighting conditions.The protective membrane can be removed without leaving any adhesive residue on thescreen.


    Question: What is the dimension of the Siemens SIPLUS HMI TP177B color PN/DP Touchscrenn?

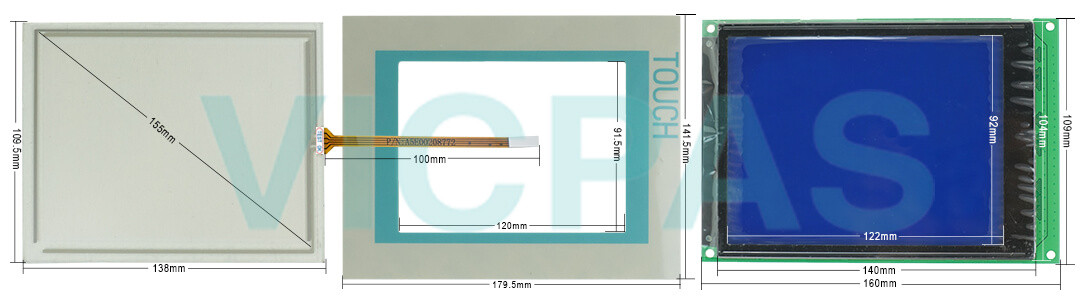

    Answer:The touchscreen of 6AG1642-0BA01-4AX0 SIMATIC TP177 is 5.7 inch,with 138 millimeter long and 109.5 millimeter wide


    Question: Which software options are available for the Siemens TP177?

    Answer:"WinCC flexible 2004," for example, refers to the configuration software.The term "WinCC flexible" is used in a general context. The full name, for example"WinCC flexible 2004", is always used when it is necessary to differentiate betweendifferent versions of the configuration software.


    Question: What is the 6AG1642-0BA01-4AX0 Siemens SIPLUS HMI TP177B color PN/DP HMI parts price?

    Answer: Submit a fast quote, send VICPAS an email for best price.
