Model
6av6545-0CA10-2AX0

Item specifics

Warranty
365 Days
Brand
Siemens
Product Line
TP270
Supply
Siemens TP270 HMI Touch Panel and Protecitve film
Size
5.7 inch
model
6av6545-0CA10-2AX0

Review

Description

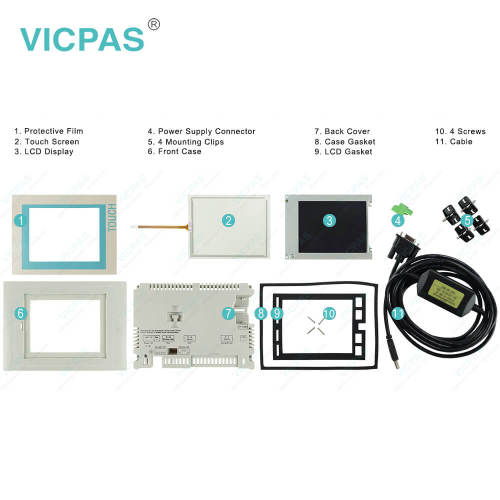

6AV6545-0CA10-2AX0 Siemens SIMATIC HMI TP270 6 Touch Screen Panel, Overlay, Mounting Clips, HMI Case, Power Supply Connector, Case Gasket, LCD Gasket, Screws and LCD Display Repair Replacement

Order each part separately is available

6AV6545-0CA10-2AX0 Siemens SIMATIC HMI TP270 Touch Screen Panel, Overlay, Power Supply Connector, Mounting Clips, Plastic Case, LCD Gasket, Case Gasket, Screws and LCD Display Repair Replacement


6AV6545-0CA10-2AX0 SIMATIC TOUCHPANEL TP170B COLOR STNCOLOR DISPLAY MPI-/PROFIBUS-DP INTERFACEPRINTER/RS232 INTERFACE SLOT FOR CF-CARDCONFIGURABLE WITH PROTOCOL/LITE FROM VERSIONV5.2+SP2


The Multi Panel MP 270B, Touch Panel TP 270 and Operator Panel OP 270 extend the product spectrum in the middle-performance range


The panels TP 270 and OP 270 are downgraded models and less expensive, but still provide convincing functionality. The HMI devices not only support the classic HMI applications (visualization with WinCC flexible) but also additional applications, such as process diagnostics (ProAgent).

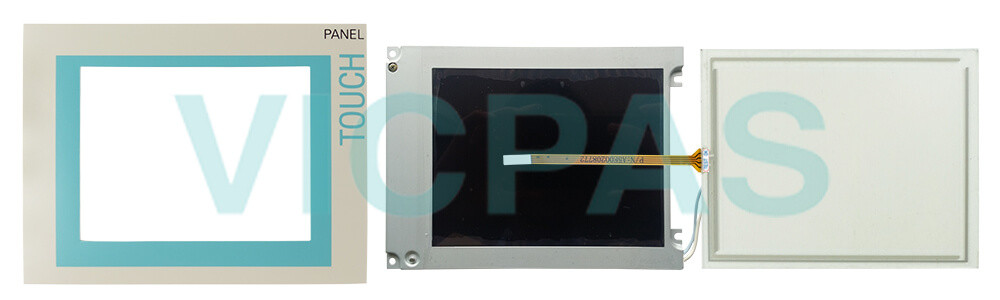

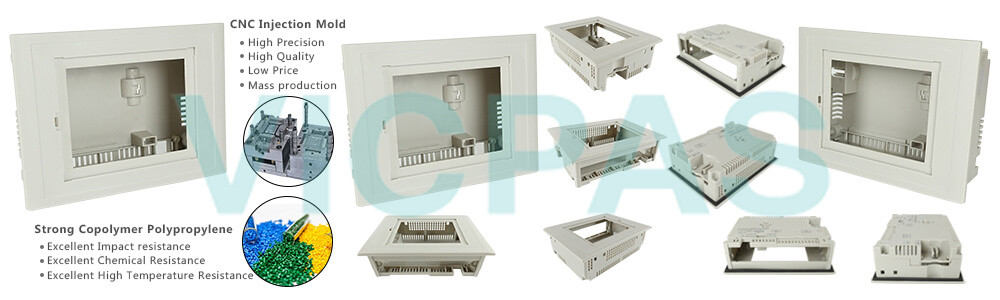

VICPAS supply 6AV6545-0CA10-2AX0 Siemens TP270 touch panel, Overlay, Case Gasket, LCD Gasket, Power Supply Connector, Plastic Cover Body, Mounting Clips, Screws and LCD display. All of them with VICPAS 365-day warranty and support Urgent Worldwide Shipping.






Specifications:

The table below describes the parameters of the 6AV6545-0CA10-2AX0 Siemens TP270 HMI Parts.

Part Number : 6AV6545-0CA10-2AX0
Size 5.7 inch;
Display STN
Warranty: 365 days Warranty
Product Line: Siemens TP270
Resolution: 320 x 240;
Number of colors: 256
Control elements: Touch screen
MTBF: 50 000 h
PLC Connection: SIMATIC S7-200


Related Simatic TP270 Part No. :

Siemens TP270 6" Description Inventory status
6AV6545-0CA10-0AX0 TP270 6 STN In Stock
6AV6545-0CA10-0AX1 TP270 6 In Stock
6AV6545-0CA10-2AX0 TP270 6 In Stock
SIMATIC HMI TP270 6" Description Inventory status

Siemens TP270 HMI Manuals PDF Download:

  • 6AV6545-0CA10-2AX0 Siemens TP270 datasheet pdf
  • Siemens Simatic TP270 Panel manual


  • FAQ:

    Question: What is the dimension of the Siemens TP270 Touchscrenn?

    Answer:The touchscreen of 6AV6545-0CA10-2AX0 SIMATIC TP270 is 5.7 inch,with 138 millimeter long and 109.5 millimeter wide


    Question: How to configure with the software WinCC flexible?

    Answer:In order to operate a machine or system using an HMI device, the user interface must be configured for the HMI device. This procedure is referred to as the "configuration phase".


    Question: What is the 6AV6545-0CA10-2AX0 Siemens TP270 HMI parts price?

    Answer: Submit a fast quote, send VICPAS an email for best price.
