Model
6AV6 545-0AA15-2AX0

Item specifics

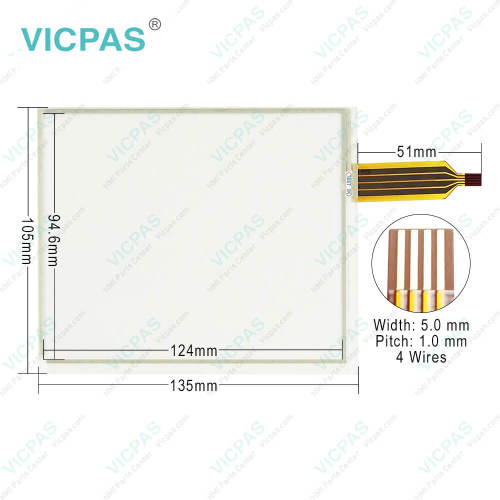

Touch screen tapes
Resistance touch screen
panel repair replacement
panel HMI replacement repair
Size
5.7 inch
Modle
6AV6 545-0AA15-2AX0
Brand
Siemens Simatic HMI
Warranty
365 days
Line
TP070 Touch Panel
Parts
supply touchscreen, lcd display, plastic case shell

Review

Description

6AV6545-0AA15-2AX0 Siemens SIMATIC HMI TP070 Touch Screen Panel, Plastic shell and LCD Display Repair Replacement

Order each part separately is available

6AV6545-0AA15-2AX0 Siemens SIMATIC HMI TP070 Touch Screen Panel, Plastic shell and LCD Display Repair Replacement


6AV6545-0AA15-2AX0 SIMATIC Touch Panel TP070 display Color STN-Color-Display MPI/PROFIBUS DP interface Printer/RS232 interface Slot for CF card configurable with ProTool/Lite as of Version V5.2+SP2


TP 070 Features
● 5.7" STN display; resolution of 320 x 240 pixels
● Rugged and compact; shallow mounting depth of 45 mm (device dimensions compatible to the TP 070)
● Multi-Master communication for the integration into networks
● Onboard MPI/PPI
● Alarm system with freely definable alarm classes and alarm history
● Password system
● Alarm indicator for displaying machine and system states
● 5 Languages (can be switched online), including Asian and Cyrillic
● Short configuration and commissioning times
● Service-friendly due to maintenance-free construction and long life of the display backlight


The SIMATIC Touch Panel TP 070B color panel from the SIPLUS extreme product range is available for substitution of the affected SIPLUS TP 070 color panel for applications under harsh ambient conditions. A SIPLUS version for use at extended temperature ranges is presently not available.SIPLUS extreme is the product family with ruggedized and refined components on the basis of SIMATIC standard products.


VICPAS supply 6AV6 545-0AA15-2AX0 Siemens TP070 touch panel, Overlay and LCD display. All of them with VICPAS 365 days warranty and support Urgent Worldwide Shipping.




  Contact Best Price



Specifications:

The table below describes the parameters of the 6AV6545-0AA15-2AX0 Siemens TP070 HMI Parts.

Part Number : 6AV6545-0AA15-2AX0
Size 5.7"
DisplaySTN Display (LCD)
Warranty: 365 days Warranty
Product Line:Siemens TP070
Resolution:320 x 240;
Color Depth: 4 Blue Levels
Touchscreen: Analog/resistive
MTBF of Backlight:approx. 50,000 h
PLC Connection: SIMATIC S7-200


Related Simatic TP070 Part No. :

Siemens 070 Description Inventory status
6AV6545-0AA10-0XA0 TP070 MICRO In Stock
6AV6545-0AA15-2AX0 SIPLUS HMI TP070 In Stock
SIMATIC HMI TP070 Description Inventory status

Siemens TP070 HMI Manuals PDF Download:

  • 6AV6545-0AA10-0XA0 Siemens TP070 datasheet pdf
  • Siemens Simatic TP070 Panel manual


  • FAQ:

    Question:How to install the TP070 HMI device?

    Answer:To complete the installation, four spring terminals are required from the accessories for the TP 070micro. The installation seal must be mounted on the HMI device. If the installation seal is damaged, order a replacement.


    Question: Which software options are available for the Siemens 6AV6545-0AA15-2AX0 TP070?

    Answer:WinCC Flexible/Sm@rtServiceThe Sm@rtService option enables you to access a remote HMI device from theHMI device or PC via Ethernet.


    Question: What is the 6AV6 545-0AA15-2AX0 Siemens TP070 HMI parts price?

    Answer: Submit a fast quote, send VICPAS an email for best price.
