6AG1545-0BC15-2AX0 Siemens SIMATIC TP170 B Touchscreen Panel
6AG1545-0BC15-2AX0 Siemens SIMATIC TP170 B Touchscreen Panel
6AG1545-0BC15-2AX0 Siemens SIMATIC TP170 B Touchscreen Panel
6AG1545-0BC15-2AX0 Siemens SIMATIC TP170 B Touchscreen Panel
6AG1545-0BC15-2AX0 Siemens SIMATIC TP170 B Touchscreen Panel
6AG1545-0BC15-2AX0 Siemens SIMATIC TP170 B Touchscreen Panel
Model
6AG1545-0BC15-2AX0

Item specifics

Warranty
365 Days
Brand
Siemens
Product Line
TP170
Supply
Siemens TP170 HMI Touch Panel And Protecitve film
Size
5.7 inch
model
6AG1545-0BC15-2AX0
Parts
Touch Panel Glass Lcd Display Protective Case

Review

Description

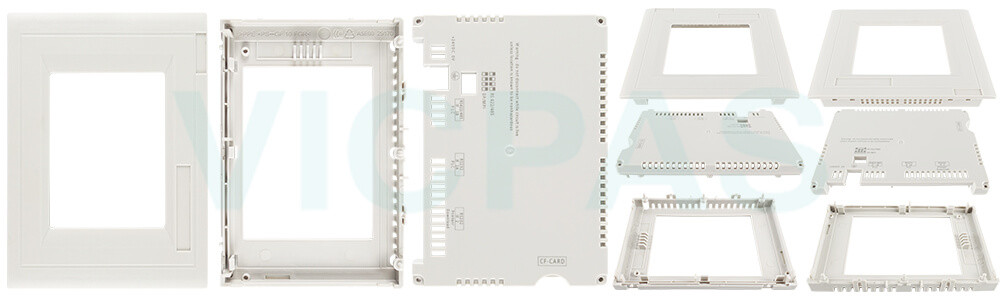

6AG1545-0BC15-2AX0 Siemens SIMATIC HMI TP170 Touch Screen Panel, Overlay, Plastic shell, Case Gasket, LCD Gasket, LCD Bracket, Power Supply Connector, Mounting Clips, Screws and LCD Display Repair

Order each part separately is available

6AG1545-0BC15-2AX0 Siemens SIMATIC HMI TP170 Touch Screen Panel, Overlay, Plastic shell, LCD Bracket, Mounting Clips, Power Supply Connector, LCD Gasket, Case Gasket, Screws and LCD Display Repair Replacement


6AG1545-0BC15-2AX0 SIPLUS HMI TP 170B Color -10...+50 °C based on 6AV6545-0BC15-2AX0


The SIPLUS TP 177B color panel from the SIPLUS extreme product range is available for substitution of the affected SIPLUS TP 170B color panel for applications under harsh ambient conditions. A SIPLUS version for use at extended temperature ranges is presently not available.SIPLUS extreme is the product family with ruggedized and refined components on the basis of SIMATIC standard products.


TP 170micro Features
● 5.7" STN display; resolution of 320 x 240 pixels
● Rugged and compact; shallow mounting depth of 45 mm (device dimensions compatible to the TP 070)
● Multi-Master communication for the integration into networks
● Onboard MPI/PPI
● Alarm system with freely definable alarm classes and alarm history
● Password system
● Alarm indicator for displaying machine and system states
● 5 Languages (can be switched online), including Asian and Cyrillic
● Short configuration and commissioning times
● Service-friendly due to maintenance-free construction and long life of the display backlight


VICPAS supply 6AG1545-0BC15-2AX0 Siemens TP170 touch panel, Overlay, Case Gasket, LCD Gasket, Mounting Clips, LCD Bracket, Power Supply Connector, Screws, Plastic Case Cover and LCD display. All of them with VICPAS 365 days warranty and support Urgent Worldwide Shipping.






Specifications:

The table below describes the parameters of the 6AG1545-0BC15-2AX0 Siemens TP170 HMI Parts.

Part Number : 6AG1545-0BC15-2AX0
Size 5.7"
Display STN Display (LCD)
Warranty: 365 days Warranty
Product Line: Siemens TP170
Resolution: 320 x 240;
Color Depth: 4 Blue Levels
Touchscreen: Analog/resistive
MTBF of Backlight : approx. 50,000 h
PLC Connection: SIMATIC S7-200


Related Simatic TP170 Part No. :

Siemens TP170 Description Inventory status
6AV6640-0CA01-0AX0 TP170 MICRO In Stock
6AG1545-0BC15-2AX0 SIPLUS HMI TP170B COLOR In Stock
6AV6545-0BA15-2AX0 TP170A TOUCH PANEL BLUE MODE STN-DISPLAY In Stock
6AV6545-0BB15-2AX0 TP170 TOUCH PANEL In Stock
6AV6545-0BC15-2AX0 TP170 TOUCH PANEL In Stock
SIMATIC HMI TP170 Description Inventory status

Siemens TP170 HMI Manuals PDF Download:

  • 6AG1545-0BC15-2AX0 Siemens TP170 datasheet pdf
  • Siemens Simatic TP170 Panel manual


  • FAQ:

    Question:How to install the TP170 HMI device?

    Answer:To complete the installation, four spring terminals are required from the accessories for the TP 170micro, TP 170A and TP 170B and six spring terminals are required for the OP 170B. The installation seal must be mounted on the HMI device. If the installation seal is damaged, order a replacement.


    Question: Which software options are available for the Siemens TP170?

    Answer:WinCC Flexible/Sm@rtServiceThe Sm@rtService option enables you to access a remote HMI device from theHMI device or PC via Ethernet.


    Question: What is the 6AG1545-0BC15-2AX0 Siemens TP170 HMI parts price?

    Answer: Submit a fast quote, send VICPAS an email for best price.
