Model
M2I TOPRD1220X

Item specifics

Brand
M2I
Size
12.1 inch
Warranty
365 Days
Product Line
M2I Premium/Standard/ATEX Model
Supply
TOPRD1220X Protective Film HMI Panel Screen
Shipping
2-4 workdays
Part Number
M2I Premium/Standard/ATEX Model TOPRD1220X

Review

Description

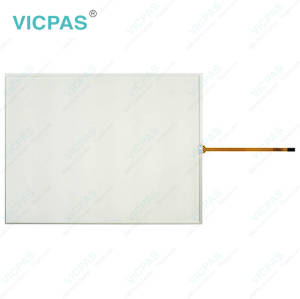

M2I Premium/Standard/ATEX Model TOPRD1220X Front Overlay Touch Digitizer Glass Replacement

Order each part separately is available

M2I Premium/Standard/ATEX Model TOPRD1220X Front Overlay Touch Glass Film Repair Replacement

Ground Wiring warning

1.The TOPRD1220X Protective Film Touch Screen Monitor product has enough anti-noise measure, so except that there are many noises. Specially, the ground is not needed.
2. The ground should be the exclusive ground. The ground should be type Class 3 ground (ground resistor is less than 1000).
3. When not doing the exclusive ground, do common ground.
4. Use the cable of M2I TOPRD1220X Touch Membrane Front Overlay more than 4 mm2. Put the point of the ground near product and shorten Ground line.


Cleaning the TOPRD1220X Protective Film Touch Screen Display

When the surface or frame of the display become dirty, spray the cleaning solution onto a soft cloth and wipe the device. Do not spray the cleaning solution directly onto the TOPRD1220X Touch Screen Film Front Overlay.


Periodic Check Points

Check the followings periodically for best condition of the TOPRD1220X Touch Screen Glass Protective Film.
Environment
a.Is the operating temperature within the allowable range (-10C~50C)?
b.Is the operating humidity of TOPRD1220X Protective Film Touch Membrane within the allowable range (10%~80%RH)?
c.Is the Surrounding pollution no corrosive gas?
Power
Is the input voltage within the change range (-15%~+10%)?
Related Items
a.Check the guarantee duration of LCD Backlight of TOPRD1220X Front Overlay Touch Screen Tablet by eye.
b.Check the touch pad there is no damage, scratch or pollution by eye.




Specifications:

The table below describes the parameters of the M2I TOPRD1220X Protective Film Touch Panel HMI Parts.

Ambient Humidity: 85% RH or less
Operation Temperature: 0°C ~ +50°C
Display Type: TFT Color
Screen Type: Analog Resistive Film
Operating Humidity: 0 ~ 90%
Part Number: TOPRD1220X
Product Line: Premium/Standard/ATEX Model
Brand: M2I
Storage Temperature: -10°C ~ +60°C
Warranty: 365 Days


Related M2I HMI Part No. :

M2I HMI Description Inventory status
TOPRD1010X M2I Premium/Standard/ATEX Model Touch Panel Front Overlay Replacement In Stock
TOPRD1020X M2I Premium/Standard/ATEX Model Protective Film HMI Panel Glass Repair Available Now
TOPRD1210S M2I Premium/Standard/ATEX Model Front Overlay Touch Membrane Replacement In Stock
TOPRD1510X M2I Premium/Standard/ATEX Model Touch Screen Display Front Overlay Repair In Stock
TOPRD1520X M2I Premium/Standard/ATEX Model Protective Film HMI Panel Screen Repair Available Now
TOPRP10D M2I Premium/Standard/ATEX Model Touch Digitizer Front Overlay Replacement In Stock
TOPRP20D M2I Premium/Standard/ATEX Model Touch Screen Film Protective Film Repair Available Now
TOPRT1210SD-Ex M2I Premium/Standard/ATEX Model Front Overlay Touch Digitizer Glass Replacement In Stock
M2I HMI Description Inventory status


M2I Premium/Standard/ATEX Model HMI Manuals PDF Download:

  • Industrial HMI Solution TOP
  • TOP Series Product Catalog
  • XTOP SERIES Installation Manual

  • FAQ:

    Question: What are the environment specifications of M2I Premium/Standard/ATEX Model TOPRD1220X Front Overlay Touch Screen Display?

    Answer:
    What are the environment specifications of M2I Premium/Standard/ATEX Model TOPRD1220X Front Overlay Touch Screen Display?


    Question: What are the front part names and specifications of TOPRD1220X?

    Answer: The front part names and specific cation of M2I Premium/Standard/ATEX Model TOPRD1220X are TFT 16M Color LCD, Analog Touch Panel and Front Cover Sheet for Damp Proof and Dust Proof.


    Question: What is M2I Premium/Standard/ATEX Model TOPRD1220X Touch Screen Tablet and Protective Film HMI parts price?

    Answer: Submit a fast quote, send VICPAS an email for best price.
