6ED1055-4MH08-0BA0 Keypad LCD Display Plastic Case
- Model
- 6ED1055-4MH08-0BA0
Item specifics
- Brand
- Siemens
- Warranty
- 12 Months
- Product Line
- Siemens TDE
- Supply
- Siemens TDE membrane keyboard lcd housing
- model
- 6ED1055-4MH08-0BA0
Review
Description

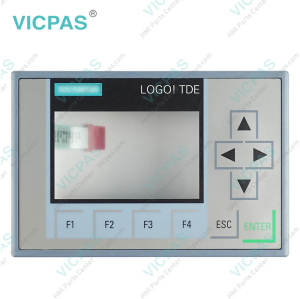

6ED1055-4MH08-0BA0 SIMATIC HMI LOGO! TDE Membrane Keyboard Plastic Case Shell LCD Display Panel

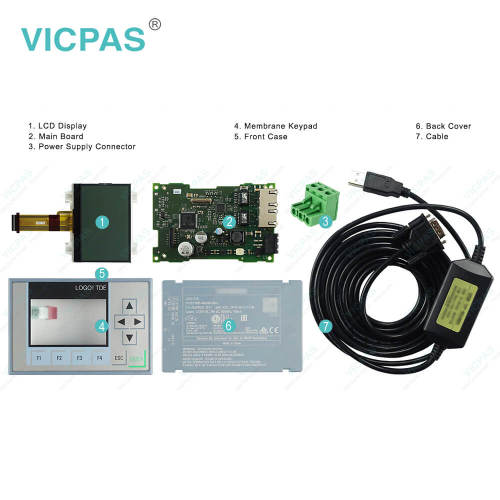

Order each part separately is available
6ED1055-4MH08-0BA0 Membrane Keypad Keyboard LCD Screen Plastic Case Cover IHM SIPLUS LOGO! TDE -25...+60°C start-up -20°C with conformal coating based on 6ED1055-4MH08-0BA1. 6-line, 3 background colors, 2 Ethernet ports, installation accessories for LOGO! 8
6ED1055-4MH08-0BA0 Keypad Switch LCD Display Plastic Shell HMI New Connectors
4 function blocks for keys LOGO! TDE
3 additional flags (M25, M26, M27)
6ED1055-4MH08-0BA0 Keyboard Membrane LCD Screen Enclosure New Special functions
Pulse Width Modulator (PWM)
Analog Math FB and a separate Error detection FB
6ED1055-4MH08-0BA0 Terminal Keypad LCD Display Panel Plastic Case Updated Special functions
The following FB´s support new features:
Message text
PI-controller
Operation hours counter
Weekly timer
Yearly timer
Analog watchdog
Up/down counter
Additionally, LSC V6.0 supports new reference parameters for many blocks.
Specifications:
The table below describes the parameters of the 6ED1055-4MH08-0BA0 Siemens LOGO! TDE HMI Parts.
| Part Number : | 6ED1055-4MH08-0BA0 |
| Number of lines: | 6 |
| Character sets: | 6 |
| Warranty: | 12-Months Warranty |
| Product Line: | Siemens LOGO! TD |
| Rated value (DC): | 24 V |
| Special characters: | 14 |
| System keys: | YES |
| Keyboard fonts: | US English |
| Controllable background colors | 3, white, orange, red |
Related Siemens Simatic LOGO! TDE Part No. :
| Siemens LOGO! TDE | Description | Inventory status |
| 6AG1055-4MH00-7BA1 | Siemens SIPLUS LOGO! TDE Terminal Keypad LCD Display Plastic Case Cover | In Stock |
| 6AG1055-4MH08-2BA0 | Siemens SIMATIC TED Keyboard Membrane Plastic Shell LCD Display Screen | In Stock |
| 6AG1055-4MH08-2BA1 | Siemens LOGO! TDE Membrane Keypad Enclosure LCD Display Replacement | Available Now |
| 6ED1055-4MH00-0BA1 | New LOGO! TDE Text Display Keypad Plastic Case LCD Display Panel Repair | Available Now |
| 6ED1055-4MH08-0BA0 | New LOGO! TDE Text Display Membrane Keypad Keyboard LCD Screen Housing | In Stock |
| 6ED1055-4MH08-0BA1 | Siemens LOGO! TDE Membrane Keypad Switch Plastic Cover LCD Screen Repair | Available Now |
| SIMATIC LOGO! TDE | Description | Inventory status |
Siemens LOGO! TDE series HMI Manuals PDF Download:
FAQ:
Question: What is the dimension of 6ED1055-4MH08-0BA0 Siemens LOGO! TDE Plastic Case Cover?
Answer:It is 128.2 millimeter x 86 millimeters x 38.7 millimeters.
Question: How to configure the Siemens LOGO! TDE 6ED1055-4MH08-0BA0?
Answer:The LOGO! TDE is a text display device that displays messages enabled by theS7-200 CPU. You do not have to configure or program the LOGO! TDE. The onlyoperating parameters stored in the LOGO! TDE are the address of the LOGO! TD, theaddress of the CPU, the baud rate, and the location of the parameter block. Theconfiguration of the LOGO! TDE is stored in a LOGO! TDE parameter block located in thevariable memory (V memory) of the CPU. The operating parameters of the LOGO! TD, such as language, update rate, messages, and message-enabled bits, arestored in the LOGO! TDE parameter block in the CPU.
Question: What is the 6ED1055-4MH08-0BA0 Siemens LOGO! TDE mebrane switch and shell HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
