6ED1055-4MH08-0BA1 Siemens LOGO! TDE Text Display
- Model
- 6ED1055-4MH08-0BA1
Item specifics
- Brand
- Siemens
- Warranty
- 6 Months
- Product Line
- Siemens LOGO! TDE
- Supply
- Siemens LOGO! TDE membrane keyboard
- Model
- 6ED1055-4MH08-0BA1
- Supply
- Plastic Case Cover LCD Display Panel
Review
Description
6ED1055-4MH08-0BA1 Siemens SIMATIC HMI LOGO! TDE Text display LCD Screen Membrane Keyboard Plastic Case Shell
Order each part separately is available
6ED1055-4MH08-0BA1 SIPLUS LOGO! TDE -10...+60°C start up 0°C with conformal coating based on 6ED1055-4MH08-0BA0 . Text Display, 6-line, 3 background colors, 2 Ethernet ports, installation accessories for LOGO! 8
LOGO! 6ED1055-4MH08-0BA1 Terminal Keypad LCD Display Panel Plastic Case Cover IHM Soft Comfort V6.0 together with the 6ED1055-4MH08-0BA1 hardware provides the following new features:
Support of 10 languages (EN, IT, NL, ES, FR, CN, DE, TR, RU, JP)
Backlight function for the 6ED1055-4MH08-0BA1 on-board display and LOGO! TD
Analog modem communication between a PC and LOGO! TDE 6ED1055-4MH08-0BA1 (upload, download, online-test)
Online status for LAD circuit programs
Display of PI controller analog output value in a trend view during simulation or online test
Method to delete user program with password in 6ED1055-4MH08-0BA1 over LOGO! Soft Comfort
Power-on screen for the 6ED1055-4MH08-0BA1 Keyboard Membrane Plastic Enclosure LCD Display Screen HMI

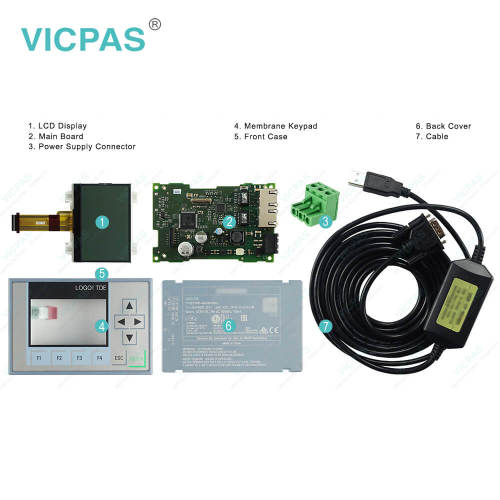

VICPAS supply 6ED1055-4MH08-0BA1 Siemens LOGO! TDE membrane keypad keyboard, lcd display panel and plastic case cover with 6 months warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the 6ED1055-4MH08-0BA1 Siemens LOGO! TDE HMI Parts.
| Part Number : | 6ED1055-4MH08-0BA1 |
| Number of lines: | 6 |
| Character sets: | 6 |
| Warranty: | 12-Months Warranty |
| Product Line: | Siemens LOGO! TDE |
| Rated value (DC): | 24 V |
| Special characters: | 14 |
| System keys: | YES |
| Keyboard fonts: | US English |
| Controllable background colors | 3, white, orange, red |
Related Siemens Simatic LOGO! TDE Part No. :
| Siemens LOGO! TDE | Description | Inventory status |
| 6AG1055-4MH00-7BA1 | Siemens SIPLUS LOGO! TDE Terminal Keypad LCD Display Plastic Case Cover | In Stock |
| 6AG1055-4MH08-2BA0 | Siemens SIMATIC TED Keyboard Membrane Plastic Shell LCD Display Screen | In Stock |
| 6AG1055-4MH08-2BA1 | Siemens LOGO! TDE Membrane Keypad Enclosure LCD Display Replacement | Available Now |
| 6ED1055-4MH00-0BA1 | New LOGO! TDE Text Display Keypad Plastic Case LCD Display Panel | Available Now |
| 6ED1055-4MH08-0BA0 | New LOGO! TDE Text Display Membrane Keypad Keyboard LCD Screen Housing | In Stock |
| 6ED1055-4MH08-0BA1 | Siemens LOGO! TDE Membrane Keypad Switch Plastic Cover LCD Screen Repair | Available Now |
| SIMATIC LOGO! TDE | Description | Inventory status |
Siemens LOGO! TDE series HMI Manuals PDF Download:
FAQ:
Question: How to program with 6ED1055-4MH08-0BA1 Siemens LOGO! TDE?
Answer:The configuration data of the LOGO!TDE is stored in the CPU of the S7-200. The message texts and theconfiguration parameters are created with the STEP 7-Micro/WIN V4 SP6 programming software. Additionalparameterization software is not required. The operating front design is configured with the Keypad Designer(component part of STEP 7-Micro/WIN V4 SP6).
Special data areas are reserved in the CPU of the S7-200 for data exchange with the LOGO!TDE. The LOGO!TDE accesses each of the required functions of the CPU direct via these data areas. User-friendly parameterizationtakes place via a dedicated LOGO!TDE Wizard in STEP 7-Micro/WIN V4 SP6.
Question: Which is the design of Siemens LOGO! TDE?
Answer:The LOGO!TDE is connected to the S7-200 using the supplied connecting cable. A separate power supply is not required.It is also possible to connect several LOGO!TDE to one S7-200.
Question: What is the 6ED1055-4MH08-0BA1 Siemens LOGO! TDE membrane switch and shell HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
Common misspellings:
6ED055-4MH08-0BA16ED1055-4MH8-0BA1
6ED0155-4MH08-0BA1
6ED1055-4M0H8-0BA1
6EDl055-4MH08-0BA1
6ED1055-4MH08-00BA1
