6ES7272-0AA30-0YA0 Membrane Keypad 6ES7272-0AA30-0YA1
- Model
- 6ES7272-0AA30-0YA0 TD200 6ES7272-0AA30-0YA1
Item specifics
- Brand
- Siemens
- Warranty
- 6 Months
- Product Line
- Siemens TD 200C
- width
- 137.5mm
- height
- 65.5mm
- Supply
- Siemens TD200C membrane keyboard
- model
- 6ES7272-0AA30-0YA0 TD200 6ES7272-0AA30-0YA1
Review
Description

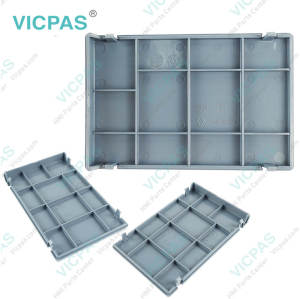

6ES7272-0AA30-0YA0 Membrane Keypad 6ES7272-0AA30-0YA1 Siemens SIMATIC HMI TD200C Text display Membrane Keyboard, Power Supply Connector, Screws, Plastic Case Shell Repair Replacement
Order each part separately is available
SIMATIC 6ES7272-0AA30-0YA0 6ES7272-0AA30-0YA1 S7, TD 200 text display for S7-200, 2-line, with cable (2.5m) and installation accessories, Configuration: with STEP 7-Micro/WIN without ATEX approval, BLANK FOR PRODUCING CUSTOMIZED FRONT LAYOUTS AMOUNT: SEE TECHNICAL DATA
The Text Display TD 200 is the optimum solution for all operating and monitoring tasks of the S7-200. The TD 200 permits interventions into the control program (e.g. to change target values) or to set inputs and outputs .
The following is a list of TD 200 features:
• Displays messages read from the S7-200 CPU.
• Allows adjustment of designated program variables.
• Provides ability to force/unforce I/O points.
• Provides ability to set the time and date for CPUs that have real-time clock
• 2 line LCD display (20 chars/line ASCII)
• 8 programmable keys
• 1 PPI interface (RS 485).
The TD 200 receives its power either from the S7-200 CPU through the TD/CPUcable or from a separate power supply.
VICPAS supply 6ES7272-1AF00-7AA0 Siemens TD200C membrane switch, Screws, Power Supply Connector and Plastic Case with 6 months warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the 6ES7272-0AA30-0YA0 Membrane Keypad 6ES7272-0AA30-0YA1 Siemens TD200 Text Display Parts.
| Part Number : | 6ES7272-0AA30-0YA0 / 6ES7272-0AA30-0YA1 |
| Number of lines: | 2 |
| Character size: | 5 mm |
| Warranty: | 6-Months Warranty |
| Product Line: | Siemens TD200 |
| Rated value (DC): | 24 V |
| Number of digital outputs: | 16 |
| System keys: | YES |
| Keyboard fonts: | US English |
| Number of analog outputs | 2 |
Related Siemens Simatic TD200C Part No. :
| Siemens TD200C | Description | Inventory status |
| 6AG1272-1AA10-2YA1 | SIPLUS S7-200 TD200C | In Stock |
| 6AG1272-0AA30-2YA0 | SIPLUS S7-200 TD200 | In Stock |
| 6ES7272-1AA10-0YA1 | TD200C CUSTOMIZABLE TEXT DISPLAY,2 LINES | Available Now |
| 6ES7272-1AF00-7AA0 | TD200C FRONT FILM, BLANK | Available Now |
| 6ES7272-1AA10-0YA0 | TD200C CUSTOMIZABLE TEXT DISPLAY,2 LINES | Available Now |
| SIMATIC TD200C | Description | Inventory status |
Siemens TD200C series HMI Manuals PDF Download:
FAQ:
Question: What is the dimension of 6ES7272-0AA30-0YA0 Membrane Keypad 6ES7272-0AA30-0YA1 Siemens TD200C membrane switch?
Answer:It is 137.5 millimeter long and 65.5 millimeters wide.
Question: Which software Support for Configuring a TD 200 ?
Answer:Some programming packages include a configuration utility for entering theparameter block and messages for the TD 200. For example, version 1.2.1 ofSTEP 7-Micro/DOS uses Utility 24 for configuring the TD 200. STEP 7-Micro/WINprovides a “wizard” that makes it easy to configure the parameter block and themessages in the data memory area of the S7-200 CPU (see Chapter 2). Refer toyour programming software and its documentation to determine whether itsupports a TD 200 configuration utility.
Question: What is the 6ES7272-0AA30-0YA0 Membrane Keypad 6ES7272-0AA30-0YA1 Siemens TD200C mebrane switch and shell HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
