Model
6ES7272-1AA10-0YA1

Item specifics

Brand
Siemens
Warranty
6 Months
Product Line
Siemens TD 200C
width
137.5mm
height
65.5mm
Supply
Siemens TD200C membrane keyboard
model
6ES7272-1AA10-0YA1

Review

Description

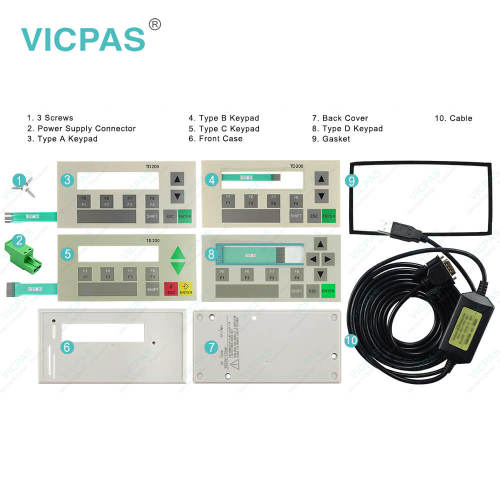

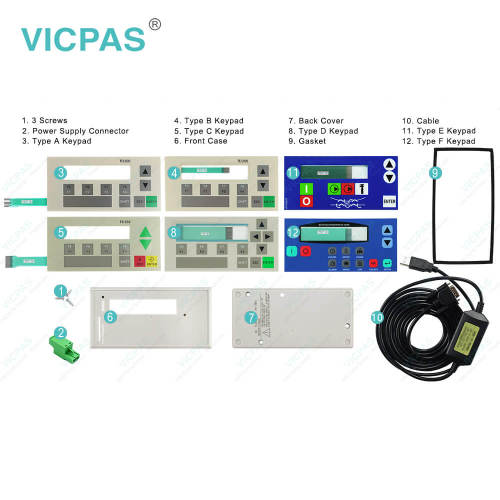

6ES7272-1AA10-0YA1 Siemens SIMATIC HMI TD200C Text display Membrane Keyboard, Screws, Power Supply Connector, Plastic Case Shell Repair Replacement

Order each part separately is available

6ES7272-1AA10-0YA1 Siemens SIMATIC HMI TD200C Text display Membrane Keyboard Plastic Case Shell Repair Replacement
6ES7272-1AA10-0YA1 Siemens SIMATIC HMI TD200C Text display Membrane Keyboard Plastic Case Shell Repair Replacement

6ES7272-1AA10-0YA1 SIMATIC S7-200, TD200C ADJUSTABLE Text Display for S7-200, 2-line, with cable (2.5m) and installation accessories, Configuration: with STEP 7-Micro/WIN without ATEX approval


The Text Display 200 (TD 200) is a text display and operator interface for theS7-200 family of programmable logic controllers. This manual uses the termsprogrammable logic controller and S7-200 CPU (or CPU) interchangeably.

The following is a list of TD 200 features:
• Displays messages read from the S7-200 CPU.
• Allows adjustment of designated program variables.
• Provides ability to force/unforce I/O points.
• Provides ability to set the time and date for CPUs that have real-time clock
The TD 200 receives its power either from the S7-200 CPU through the TD/CPUcable or from a separate power supply.


VICPAS supply 6ES7272-1AA10-0YA1 Siemens TD200C membrane switch, Power Supply Connector, Screws and Housing with 6 months warranty and support Urgent Worldwide Shipping.





Specifications:

The table below describes the parameters of the 6ES7272-1AA10-0YA1 Siemens TD200C HMI Parts.

Part Number : 6ES7272-1AA10-0YA1
Number of lines: 2
Character size: 5 mm
Warranty: 6-Months Warranty
Product Line: Siemens TD200C
Rated value (DC): 24 V
Number of digital outputs: 16
System keys: YES
Keyboard fonts: US English
Number of analog outputs 2


Related Siemens Simatic TD200C Part No. :

Siemens TD200C Description Inventory status
6AG1272-1AA10-2YA1 SIPLUS S7-200 TD200C In Stock
6AG1272-0AA30-2YA0 SIPLUS S7-200 TD200 In Stock
6ES7272-1AA10-0YA1 TD200C CUSTOMIZABLE TEXT DISPLAY,2 LINES Available Now
6ES7272-1AF00-7AA0 TD200C FRONT FILM, BLANK Available Now
6ES7272-1AA10-0YA0 TD200C CUSTOMIZABLE TEXT DISPLAY,2 LINES Available Now
SIMATIC TD200C Description Inventory status

Siemens TD200C series HMI Manuals PDF Download:

  • 6ES7272-1AA10-0YA1 SIMATIC HMI TD200C datasheet pdf
  • Siemens Simatic TD200C series HMI operator panel keypad manual


  • FAQ:

    Question: What is the dimension of 6ES7272-1AA10-0YA1 Siemens TD200C membrane switch??

    Answer:It is 137.5 millimeter long and 65.5 millimeters wide.


    Question: How to configure the Siemens TD200C ?

    Answer:The TD 200 is a text display device that displays messages enabled by theS7-200 CPU. You do not have to configure or program the TD 200. The onlyoperating parameters stored in the TD 200 are the address of the TD 200, theaddress of the CPU, the baud rate, and the location of the parameter block. Theconfiguration of the TD 200 is stored in a TD 200 parameter block located in thevariable memory (V memory) of the CPU. The operating parameters of theTD 200, such as language, update rate, messages, and message-enabled bits, arestored in the TD 200 parameter block in the CPU.


    Question: What is the 6ES7272-1AA10-0YA1 Siemens TD200C mebrane switch and shell HMI parts price?

    Answer: Submit a fast quote, send VICPAS an email for best price.
