6AV3017-1NE30 Siemens SIMATIC TD17 Membrane Keyboard
- Model
- 6AV3017-1NE30
Item specifics
- Brand
- Siemens
- Product Line
- Siemens TD17
- Warranty
- 180 Days
- width
- 229.8mm
- height
- 88mm
- Supply
- Siemens TD series membrane keyboard shell
- model
- 6AV3017-1NE30
Review
Description

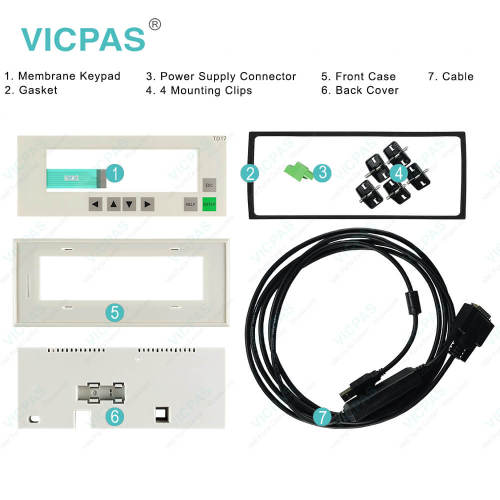

6AV3017-1NE30 Siemens SIMATIC HMI TD17 Membrane Keyboard Switch, Gasket, Mounting Clips, Enclosure, Power Supply Connector Repair Replacement
Order each part separately is available
6AV3017-1NE30 Siemens Text display TD17 LC display, LED-backlit 4x 20/8x 40 lines x characters for SIMATIC S5, 505, S7, M7 Native drivers, PROFIBUS -DP12
With text display TD17, you can visualize the operating states, malfunctions current process values of a connected PLC. The Text Display features a number of standard functions. The displays and operation of the device can be optimized by the configuration to meet the requirements of the process. The TD17 is suitable for installation in cabinets and consoles.
Before the TD17 can be commissioned, it has to be prepared for its job of visualizing data from the PLC; in other words, it has to be configured. This means that you have to create data areas in the PLC memory in your configuration which can be used by the TD to communicate with the PLC.
VICPAS supply 6AV3017-1NE30 Siemens TD17 membrane switch, Gasket, Power Supply Connector, Mounting Clips and Plastic Cover with 6 months warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the 6AV3017-1NE30 Siemens TD17 HMI Parts.
| Part Number : | 6AV3017-1NE30 |
| Programming: | STEP 7 V5.2 + SP1 |
| Firmware version: | V2.0.12 |
| Warranty: | 180 Days Warranty |
| Product Line: | Siemens TD17 |
| Rated value (DC): | 24 V |
| Number of digital outputs: | 16 |
| Design as touch screen: | No |
| Keyboard fonts: | US English |
| Number of analog outputs | 2 |
Related Siemens Simatic TD17 Part No. :
| Siemens TD17 | Description | Inventory status |
| 6AV3017-1NE30-0AX1 | TD17 TEXT DISPLAY | In Stock |
| 6AV3017-1NE30-0AX0 | TD17 TEXT DISPLAY | In Stock |
| 6AV3017-1NE30 | TD17 TEXT DISPLAY | Available Now |
| SIMATIC TD17 | Description | Inventory status |
Siemens TD17 series HMI Manuals PDF Download:
FAQ:
Question: What is the dimension of 6AV3017-1NE30 Siemens TD17 membrane switch??
Answer:It is 229.8 millimeter long and 88 millimeters wide.
Question: How to configure 6AV3017-1NE30 Simatic TD17 with Protool ?
Answer:The configuration for your TD17 is created on a computer (PC or PU) usingthe ProTool configuration software under Microsoft Windows. Once theconfiguration is ready, it is downloaded to the TD. For this you have to connectyour computer to the TD. After the configuration has been downloaded,you have to connect the TD to the PLC..
Question: What is the 6AV3017-1NE30 Siemens TD17 mebrane switch and shell HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
