Cutler Hammer 1785K PMPS 1700 PanelMate 92-01877-03 Cutler Hammer 1785K PMPS 1700 PanelMate 92-01877-06 Keypad Touchscreen
- Model
- Cutler Hammer 1785K PMPS 1700 PanelMate 92-01877-03 Cutler Hammer 1785K PMPS 1700 PanelMate 92-01877-06
Item specifics
- Product Line
- Cutler-Hammer Panelmate
- Warranty
- 1 Year
- Shipping Time
- 3-5 Days
- Supply Parts
- Terminal Keypad Touch Screen Tablet
- Environment
- Free From Corrosive Gases
- Touch Type
- Resistive
Review
Description

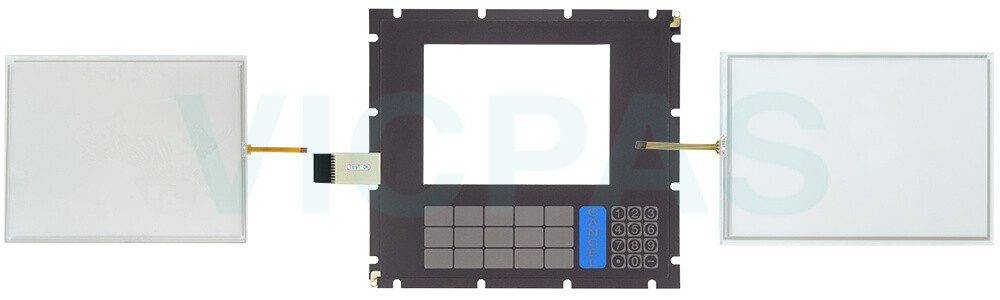

Eaton Cutler Hammer 1785K PMPS 1700 PanelMate 92-01877-03 Cutler Hammer 1785K PMPS 1700 PanelMate 92-01877-06 Touch Screen Panel Switch Membrane Repair
Order each part separately is available
1. Never use foreign objects to activate Eaton Panelmate Cutler Hammer 1785K PMPS 1700 PanelMate 92-01877-03 Cutler Hammer 1785K PMPS 1700 PanelMate 92-01877-06 Switch Membrane Touch Screen Film. Use a hand, gloved hand or stylus. Foreign objects (such as a screwdriver) may cause damage to the touchscreen or scratch the front panel reducing visibility of the display.
2. Use a light touch to activate the touchscreen. Touchscreen activation does not require the same force necessary to activate a mechanical switch.
3. Disconnect Cutler Hammer Panels Cutler Hammer 1785K PMPS 1700 PanelMate 92-01877-03 Cutler Hammer 1785K PMPS 1700 PanelMate 92-01877-06 Touch Digitizer Membrane Keypad from the power outlet before cleaning. Use a damp cloth. Do not use liquid or spray detergents for cleaning.
4. Do not remove or insert the CompactFlash memory card while the PanelMate ePro PS unit is powered up. Doing so may cause damage to the CompactFlash memory and/or processor board.
5. Keep this equipment away from condensing humidity.
6. Put Cutler-Hammer Cutler Hammer 1785K PMPS 1700 PanelMate 92-01877-03 Cutler Hammer 1785K PMPS 1700 PanelMate 92-01877-06 Operator Keyboard HMI Touch Glass on a reliable surface during installation. Dropping it or letting it fall may cause damage.
7. The openings on the enclosure are for air convection cooling. Protect the equipment from overheating. DO NOT COVER THE OPENINGS.
8. Always install the unit in a vertical orientation for proper cooling.
9. Make sure the voltage of the power source is correct before connecting the equipment to the power outlet.
10. Position the power cord so that people cannot step on it. Do not place anything over the power cord.
11. All cautions and warnings on the equipment should be noted.
Specifications:
The table below describes the parameters of Eaton Cutler Hammer 1785K PMPS 1700 PanelMate 92-01877-03 Cutler Hammer 1785K PMPS 1700 PanelMate 92-01877-06 Keypad Membrane Touch Panel.
| Storage Temperature: | -20 °C ... +60 °C |
| Operating Temperature: | 0 °C ... +50 °C |
| Shipping Time: | 3-5 Days |
| Light Transmission: | Above 75% |
| Environment: | Free From Corrosive Gases |
| Product Line: | Cutler-Hammer Panelmate |
| Brand: | Vicpas |
| Cooling Method: | Natural Air Cooling |
| Relative Humidity: | 95% |
| Warranty: | 365 Days |
Related Eaton Cutler-Hammer Panelmate Part No. :
| Cutler-Hammer Panelmate HMI | Description | Inventory status |
| Cutler-Hammer Panelmate HMI | Description | Inventory status |
Eaton Cutler-Hammer Panelmate Manuals PDF Download:
FAQ:
Question: What is the Offline Mode Menu used for?
Answer: The Offline Mode Menu is a built-in utility interface that allows users to access diagnostic, setup, and maintenance functions on the PanelMate unit. In Offline Mode, users can perform operations such as keypad or touchscreen testing, display adjustment, system diagnostics, and other troubleshooting tasks without affecting normal machine operation.
For keypad units, Offline Mode can be entered by pressing the upper two control buttons simultaneously after power-up diagnostics are completed. For touchscreen units, Offline Mode can be accessed by pressing the lower-right corner of the touchscreen during startup.
Question: What is the price of Eaton Cutler Hammer 1785K PMPS 1700 PanelMate 92-01877-03 Cutler Hammer 1785K PMPS 1700 PanelMate 92-01877-06 Operator Keyboard Touch Screen Display?
Answer: Submit a fast quote, send VICPAS an email for best price.
