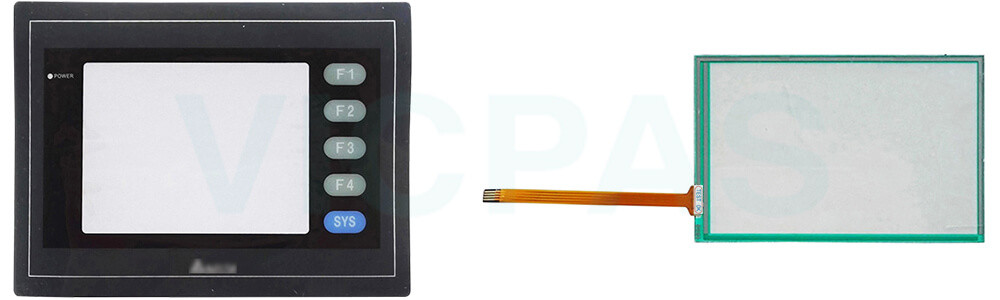

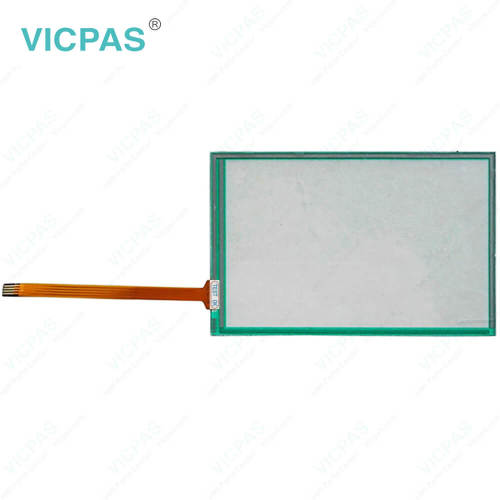

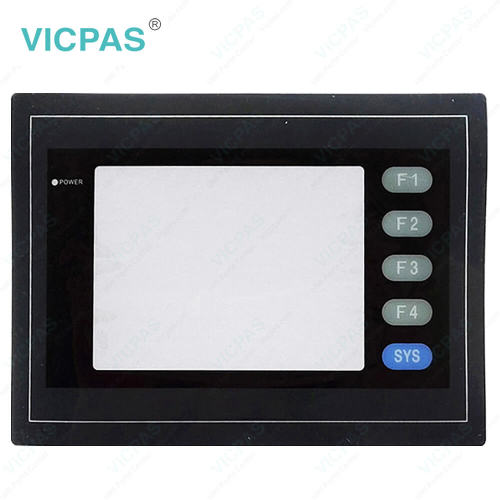

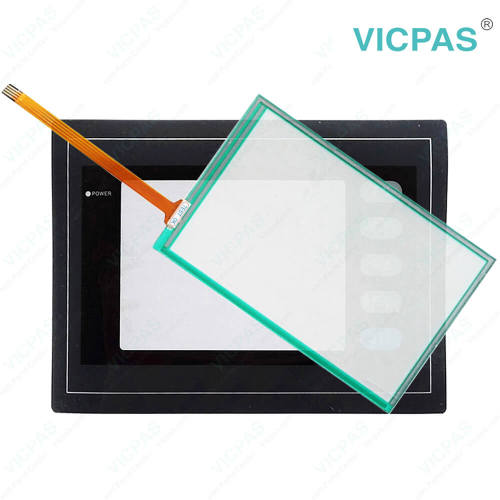

HMI04CU HMI04BU HMI04GU Front Overlay Touch Screen Display Replacement
- Model
- HMI04CU HMI04BU HMI04GU
Item specifics
- Product Line
- Cutler-Hammer Panelmate
- Warranty
- 1 Year
- Shipping Time
- 3-5 Days
- Supply Parts
- Touch Screen Tablet Protective Film
- Environment
- Free From Corrosive Gases
- Size
- 4''
Review
Description
Eaton HMI04CU HMI04BU HMI04GU Protective Film Touch Screen Monitor Repair
Order each part separately is available
1. Never use foreign objects to activate Eaton Panelmate HMI04CU HMI04BU HMI04GU Touch Digitizer Glass Front Overlay. Use a hand, gloved hand or stylus. Foreign objects (such as a screwdriver) may cause damage to the touchscreen or scratch the front panel reducing visibility of the display.
2. Use a light touch to activate the touchscreen. Touchscreen activation does not require the same force necessary to activate a mechanical switch.
3. Disconnect Eaton Cutler Hammer HMI04CU HMI04BU HMI04GU Protective Film Touch Screen Tablet from the power outlet before cleaning. Use a damp cloth. Do not use liquid or spray detergents for cleaning.
4. Do not remove or insert the CompactFlash memory card while the PanelMate ePro PS unit is powered up. Doing so may cause damage to the CompactFlash memory and/or processor board.
5. Keep this equipment away from condensing humidity.
6. Put Cutler Hammer Panels HMI04CU HMI04BU HMI04GU HMI Touch Glass Front Overlay on a reliable surface during installation. Dropping it or letting it fall may cause damage.
7. The openings on the enclosure are for air convection cooling. Protect the equipment from overheating. DO NOT COVER THE OPENINGS.
8. Always install the unit in a vertical orientation for proper cooling.
9. Make sure the voltage of the power source is correct before connecting the equipment to the power outlet.
10. Position the power cord so that people cannot step on it. Do not place anything over the power cord.
11. All cautions and warnings on the equipment should be noted.
Specifications:
The table below describes the parameters of Eaton Cutler-hammer Eaton HMI04CU HMI04BU HMI04GU Protective Film Touch Panel.
| Size: | 4'' |
| Operating Temperature: | 0 °C ... +50 °C |
| Shipping Time: | 3-5 Days |
| Storage Temperature: | -20 °C ... +60 °C |
| Environment: | Free From Corrosive Gases |
| Product Line: | Cutler-Hammer Panelmate |
| Brand: | Vicpas |
| Cooling Method: | Natural Air Cooling |
| Relative Humidity: | 95% |
| Warranty: | 365 Days |
Related Eaton Cutler-Hammer Panelmate Part No. :
| Cutler-Hammer Panelmate HMI | Description | Inventory status |
| Cutler-Hammer Panelmate HMI | Description | Inventory status |
Eaton Cutler-Hammer Panelmate Manuals PDF Download:
FAQ:
Question: What is the Offline Mode Menu used for?
Answer: The Offline Mode Menu is a built-in utility interface that allows users to access diagnostic, setup, and maintenance functions on the PanelMate unit. In Offline Mode, users can perform operations such as keypad or touchscreen testing, display adjustment, system diagnostics, and other troubleshooting tasks without affecting normal machine operation.
For keypad units, Offline Mode can be entered by pressing the upper two control buttons simultaneously after power-up diagnostics are completed. For touchscreen units, Offline Mode can be accessed by pressing the lower-right corner of the touchscreen during startup.
Question: Do I need to press harder when operating the touchscreen with gloves?
Answer: No. Eaton HMI04CU HMI04BU HMI04GU Touch Membrane Front Overlay is designed for both finger and gloved operation and does not require strong actuation force like a mechanical switch. A light touch provides the same response as a heavy press, helping ensure comfortable and reliable operation.
