Eaton cutler-hammer PN 63-00741-00 REV Cutler Hammer 1785K-PMPP-1700 92-01943-00 Cutler Hammer 1785K PMPP 1700 92-01943-01 Touchpad Keyboard
- Model
- Eaton cutler-hammer PN 63-00741-00 REV Cutler Hammer 1785K-PMPP-1700 92-01943-00 Cutler Hammer 1785K PMPP 1700 92-01943-01
Item specifics
- Product Line
- Cutler-Hammer Panelmate
- Warranty
- 1 Year
- Shipping Time
- 3-5 Days
- Supply Parts
- Touch Screen Film Membrane Switch
- Environment
- Free From Corrosive Gases
- Touch Type
- Resistive
Review
Description

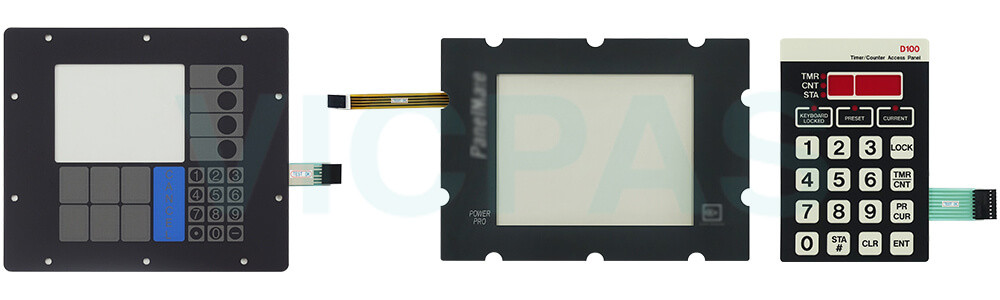

Eaton cutler-hammer PN 63-00741-00 REV Cutler Hammer 1785K-PMPP-1700 92-01943-00 Cutler Hammer 1785K PMPP 1700 92-01943-01 Keypad Membrane Touch Screen Glass Repair
Order each part separately is available
If Eaton Cutler Hammer Eaton cutler-hammer PN 63-00741-00 REV Cutler Hammer 1785K-PMPP-1700 92-01943-00 Cutler Hammer 1785K PMPP 1700 92-01943-01 Membrane Keyboard Touch Screen Film does not function at all or it is unresponsive, first check the integrity of the cable and connectors to ensure they are properly connected and not damaged. It is recommended to perform a Keypad Test to further diagnose the issue. Select Keypad Test and press the control button labeled “Execute”. As each key is pressed, it will be identified on the display screen, allowing you to verify whether it is sending signals correctly to the PanelMate unit. Be sure to test all keys, and press the
Specifications:
The table below describes the parameters of Eaton cutler-hammer PN 63-00741-00 REV Cutler Hammer 1785K-PMPP-1700 92-01943-00 Cutler Hammer 1785K PMPP 1700 92-01943-01 Touch Digitizer Operator Panel Keypad.
| Shipping Time: | 3-5 Days |
| Cooling Method: | Natural Air Cooling |
| Warranty: | 365 Days |
| Storage Temperature: | -20 °C ... +60 °C |
| Brand: | Vicpas |
| Operating Temperature: | 0 °C ... +50 °C |
| Environment: | Free From Corrosive Gases |
| Product Line: | Cutler-Hammer Panelmate |
| Relative Humidity: | 95% |
| Protection: | IP65 |
Related Eaton Cutler-Hammer Panelmate Part No. :
| Cutler-Hammer Panelmate HMI | Description | Inventory status |
| Cutler-Hammer Panelmate HMI | Description | Inventory status |
Eaton Cutler-Hammer Panelmate Manuals PDF Download:
FAQ:
Question: What is important when reinstalling the PanelMate unit after replacing Eaton cutler-hammer PN 63-00741-00 REV Cutler Hammer 1785K-PMPP-1700 92-01943-00 Cutler Hammer 1785K PMPP 1700 92-01943-01 Touch Panel Membrane Switch?
Answer: After replacing a damaged touchscreen or membrane keypad, proper installation is important to ensure reliable sealing and stable operation. When tightening the mounting nuts, avoid both under-tightening and over-tightening. The fasteners should be tightened enough to create a proper seal, but excessive force may strip the threads or damage the gasket. For best installation results, using a torque wrench is recommended when reinstalling the PanelMate unit.
Question: How can I adjust the display contrast on the PanelMate unit?
Answer: Units with grayscale or dual-scan color displays support software-controlled contrast adjustment. To adjust the contrast, place the unit in Run Mode, then go to Get Page → More → Setup Page → Adjust Contrast. Use the Lighter and Darker control buttons to achieve the desired display effect. After adjustment, press Save Setting to keep the new contrast level, or press Cancel to return to the previous setting. The unit will restore the last saved contrast setting after power cycling.
Common misspellings:
Eaton cutler-hanmer PN 63-00741-00 REVEaton cutler-hammer PN 63-007411-00 REV
Eaton cutler-hammer PN 36-00741-00 REV
Cuttler Hammer 1785K-PMPP-1700 92-01943-00
Cutler Hammer 1785-PMPP-1700 92-01943-00
Cutler Hammer 1785K-PMPMP-1700 92-01943-00
Cutler Hammer 1785K PMPP 1700 91-01943-01
Cutler Hammer 1785K PMPP 100 92-01943-01
Cutler Hammer 1785K PMPP 1700 92-01943-00
