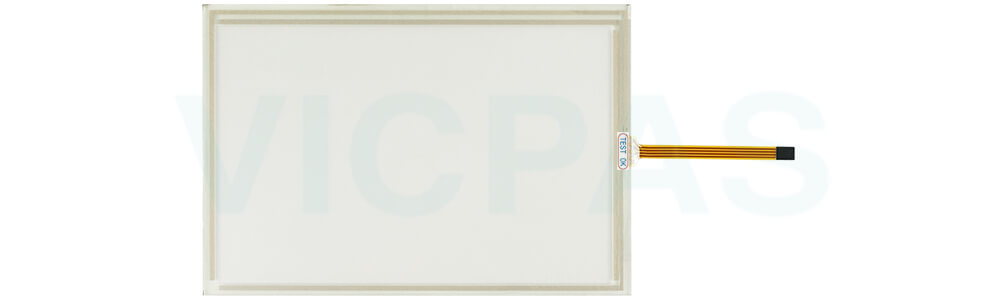

HMI06CU HMI Touch Glass Replacement
- Model
- HMI06CU
Item specifics
- Product Line
- Cutler-Hammer Panelmate
- Warranty
- 1 Year
- Shipping Time
- 3-5 Days
- Supply Parts
- Touch Digitizer Glass
- Environment
- Free From Corrosive Gases
- Size
- 6''
Review
Description
Eaton HMI06CU Touch Screen Tablet Repair
Regular maintenance is essential to keep your Eaton Cutler Hammer HMI06CU Touch Screen Monitor operating in optimal condition. The surface of the unit should be cleaned as needed using a common non-abrasive cleaning product to maintain clear visibility and proper HMI06CU Touch Screen Glass performance. It is also recommended to perform system health checks every 3 to 6 months, including Display Tests and Membrane Keypad Tests, to ensure all functions are working correctly, or it will do damage to Eaton Panelmate HMI06CU Touch Screen Monitor.
In industrial environments, especially where dust is present, the unit should ideally be installed in a closed enclosure. If the device is exposed, accumulated dust on internal circuit boards should be carefully removed using forced air on a periodic basis. Always disconnect power before performing any internal cleaning.
In addition, regular inspection of Cutler Hammer Panels HMI06CU Touch Digitizer Glass is recommended. If any signs of wear, damage, or reduced responsiveness are detected, timely replacement is advised to maintain reliable operation.
Specifications:
The table below describes the parameters of Eaton HMI06CU Touch Membrane.
| Shipping Time: | 3-5 Days |
| Operating Temperature: | 0 °C ... +50 °C |
| Storage Temperature: | -20 °C ... +60 °C |
| Relative Humidity: | 95% |
| Product Line: | Cutler-Hammer Panelmate |
| Environment: | Free From Corrosive Gases |
| Brand: | Vicpas |
| Cooling Method: | Natural Air Cooling |
| Size: | 6'' |
| Warranty: | 365 Days |
Related Eaton Cutler-Hammer Panelmate Part No. :
| Cutler-Hammer Panelmate HMI | Description | Inventory status |
| Cutler-Hammer Panelmate HMI | Description | Inventory status |
Eaton Cutler-Hammer Panelmate Manuals PDF Download:
FAQ:
Question: How do I adjust the display contrast?
Answer: Units equipped with grayscale or dual-scan color displays feature software-controlled contrast adjustment.To adjust the contrast, follow these steps:
1)Place the unit in Run Mode
2)Select the Get Page control button from the default control buttons
3)Select the More control button
4)Select the Setup Page control button
5)Select the Adjust Contrast control button and use the Lighter and Darker control buttons to adjust the display's contrast.
To save the new setting, press the Save Setting control button.To revert to the previous contrast setting, press the Cancel key.The unit will return to the last saved contrast level after power is cycled to the unit.
Question: What should I do if HMI06CU Touch Screen Panel are not responding?
Answer: First, check the integrity of the cable and connectors to ensure all connections are secure and undamaged. Loose or damaged cables may cause the membrane keyboard and LCD Screen to stop responding properly. You can also use the Membrane Keyboard Test function to verify whether the keys are sending signals correctly to the PanelMate unit. This diagnostic test helps identify whether the issue is related to the keypad itself or the system connection. If the membrane keyboard still does not function properly after troubleshooting, replacing the damaged membrane keypad may be necessary.
