LXM05BD10M2 Motion Servo Drive Membrane Switch
- Model
- LXM05BD10M2
Item specifics
- Brand
- Schneider
- Warranty
- 365 Days
- Supply
- LXM05BD10M2 Membrane keypad keyboard
- Supply
- Schneider LXM05BD10M2 Terminal Keypad Replacement
- Product Line
- Schneider Lexium 05
Review
Description

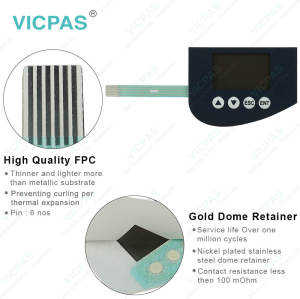

Schneider Lexium 05 LXM05BD10M2 Keypad Membrane Switch Repair Replacement
Schneider LXM05BD10M2 Membrane Keyboard-Compact Control for Seamless Automation
The Schneider Motion Servo Drive Lexium 05 LXM05BD10M2 Membrane Keyboard Keypad, available through VICPAS, is a streamlined interface solution designed to operate Lexium series servo drives intuitively. Featuring a minimalist four-button layout, this LXM05BD10M2 Switch Membrane enables quick setup and real-time monitoring in space-constrained industrial environments. Its tactile membrane design ensures durability against dust, moisture, and frequent use, making it ideal for robotics, conveyor systems, and CNC machinery.
Engineered for reliability, the Lexium 05 Motion Servo Drive LXM05BD10M2 Operator Keyboard supports CANopen and Modbus communication protocols, ensuring seamless integration into diverse automation networks. The plug-and-play design minimizes installation downtime, while its compact form factor complements drive units without occupying excessive panel space. Backed by Schneider’s industrial-grade quality standards, this keypad delivers consistent performance in temperatures ranging from 0°C to 50°C. Trust VICPAS to provide genuine components with expert technical support.
Specifications:
The table below describes the parameters of the LXM05BD10M2 Schneider Membrane Keypad Switch.
| Part Number: | LXM05BD10M2 |
| Response Time: | <= 10 ms |
| Nominal Power: | 0.75 kW at 4 kHz |
| Warranty: | 365 Days Warranty |
| Supply Frequency: | 50/60 Hz - 5...5 % |
| Range of Product: | Lexium 05 |
| Operating Temp.: | 0 °C to 50 °C |
| Storage Temp.: | -25 °C to 70 °C |
| Overvoltage Category: | III |
| Linearity Error: | < +/- 0.5 % |
Related Schneider Motion Servo Drive Part No. :
| Schneider Lexium 05 | Description | Inventory status |
| LXM05BD10M2 | Schneider LXM05 Operator Keyboard Replacement | In Stock |
| LXM05BD10M3X | Schneider Lexium 05 HMI Operator Panel Keypad | In Stock |
| LXM05BD14N4 | Motion Servo Drive Keyboard Membrane Repair | Available Now |
| LXM05BD57N4 | Schneider Motion Servo Drive Switch Membrane | In Stock |
| LXM05CD10M2 | Lexium 05 Schneider HMI Terminal Keypad Repair | Available Now |
| LXM05CD10M3X | Schneider Lexium 05 Keyboard Membrane Repair | In Stock |
| LXM05CD14N4 | Schneider Motion Servo Drive Keypad Replacement | In Stock |
| LXM05CD17M3X | Schneider LXM05 Membrane Keypad Overlay Repair | In Stock |
| LXM05CD22N4 | Motion Servo Drive Schneider HMI Keypad Membrane | Available Now |
| LXM05CD34N4 | Schneider Motion Servo Drive Operator Keyboard | Available Now |
| LXM05CD57N4 | Schneider LXM05 Keyboard Membrane Replacement | In Stock |
| Schneider LXM05 | Description | Inventory status |
Schneider LXM05B HMI Manuals PDF Download:
FAQ:
Question: Is the keyboard of the LXM05BD10M2 unit replaceable?
Answer: Yes, the membrane keypad of LXM05BD10M2 can be replaceable.
Question: What are the general conditions for the use of residual current devices?
Answer: Where the installation regulations require upstream protection by
means of a residual current device (residual current device, RCD), a residual current device of "Type A" can be used on a single-phase drive with connection between N and L. In all other cases, "Type B" must be used.
The following characteristics must be taken into consideration here:
• Filtering of high-frequency currents.
• Delay which can prevent triggering as a result of interference capacities which may be loaded when switching on. This delay is not possible with 30-mA protective switches. In this case, use protective switches which are not sensitive to unintentional triggering, for example a series s.i (super-immunised) residual current device with increased noise immunity (manufactured by Merlin Gerin).
If the system consists of several drives, it is necessary to use a residual current device for each drive.
