Schneider ATS48C11Y ATS48C14Y ATS48C17Y Operator Panel Keypad
- Model
- ATS48C11Y ATS48C14Y ATS48C17Y
Item specifics
- Brand
- Schneider
- Warranty
- 365 Days
- Supply
- ATS48C11Y ATS48C14Y ATS48C17Y Membrane Switch
- Range of product
- Schneider ATS48
Review
Description

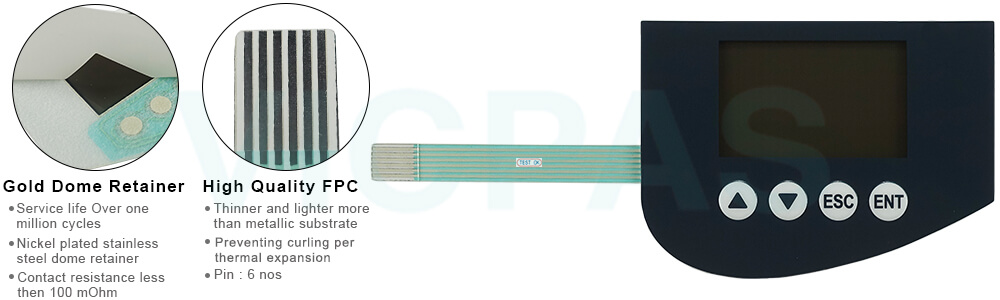

Schneider Altistart 48 ATS48C11Y ATS48C14Y ATS48C17Y Switch Membrane Repair Kit
VICPAS offers a high-quality terminal keypad replacement tailored for Schneider Altistart 48 series soft starters, specifically compatible with models ATS48C11Y ATS48C14Y ATS48C17Y. Designed for reliable performance and direct integration, this replacement keypad enables essential on-starter control functions such as motor start/stop, parameter adjustment, and fault reset.
Crafted from industrial-grade materials, the ATS48C11Y ATS48C14Y ATS48C17Y Keyboard Membrane is built to withstand the rigors of daily frequent use and harsh environments—including fan systems, water pump stations, and material handling lines. Its responsive multi-button layout provides intuitive navigation of soft starter settings, while the low-profile membrane surface offers resistance to dust, oil, and vibration.
With a standard FPC ribbon connector, the Altistart 48 ATS48C11Y ATS48C14Y ATS48C17Y Control keypad enables plug-and-play installation with no firmware changes. A practical, cost-effective alternative to OEM parts, it extends legacy soft starter lifespan, reduces maintenance costs, and ensures full compatibility and reliable operation.
Specifications:
The table below describes the parameters of the Altistart 48 ATS48C11Y ATS48C14Y ATS48C17Y Membrane Keyboard Keypad.
| Brand: | Schneider |
| Operating Temp.: | -10 °C to 40 °C, without derating |
| Storage Temp.: | -25 °C to 70 °C |
| Relative Humidity: | 0-95% non-condensing |
| Range Compatibility: | Altistart 48 |
| Supply Frequency: | 50...60 Hz - 10...10 % |
| Warranty: | 365 Days Warranty |
| Phase: | 3 phase |
Related Schneider Altistart 48 Series Part No. :
| Schneider Altistart 48 | Description | Inventory status |
| Schneider ATS48 | Description | Inventory status |
Schneider ATS48 HMI Manuals PDF Download:
FAQ:
Question: What are the common symptoms of a faulty keypad on Altistart 48 soft starters?
Answer: Typical signs include unresponsive buttons, inconsistent input response, display not showing feedback, or inability to start/stop the motor via keypad. In such cases, replacing the keypad often resolves the issue without replacing the entire drive.
Question: Are there any special applications for the ATS 48 soft start/soft stop device?
Answer: Yes. The ATS48 soft start/soft stop units can be used in applications outside the standard characteristics, but this generally requires derating by at least one power rating.
Examples of applications outside the standard characteristics include:
⦁ Higher number of starts per hour
⦁ Motor thermal protection settings above class 10 (e.g., class 20 or class 30)
⦁ Applications requiring high starting torque or higher starting current
⦁ Certain ambient temperatures: For ambient temperatures between +40 °C/+104 °F and +60 °C/+140 °F, derate the nominal current of the Altistart by 2.2% for each additional degree.
⦁ Certain altitudes: For altitudes between 1,000 m/3,280 ft and 2,000 m/6,562 ft, derate the nominal current of the Altistart by 1% for each additional 100 m/328 ft.
