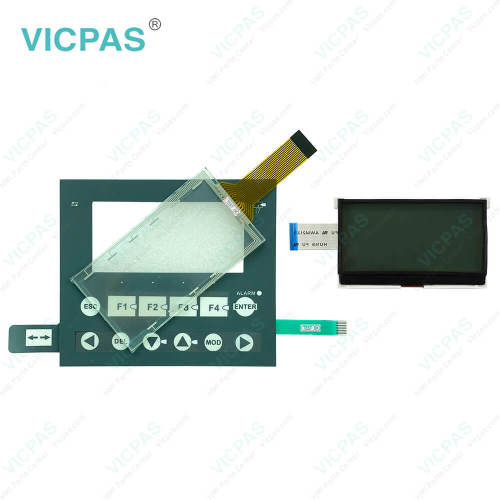

XBTRT511 Schneider Magelis Membrane Keypad Switch
- Model
- XBTRT511
Item specifics
- Brand
- Schneider
- Warranty
- 365 Days
- Product Line
- Schneider Magelis XBT RT series
- Supply
- XBTRT511 Operator Panel Keypad
- Model
- XBTRT511
Review
Description

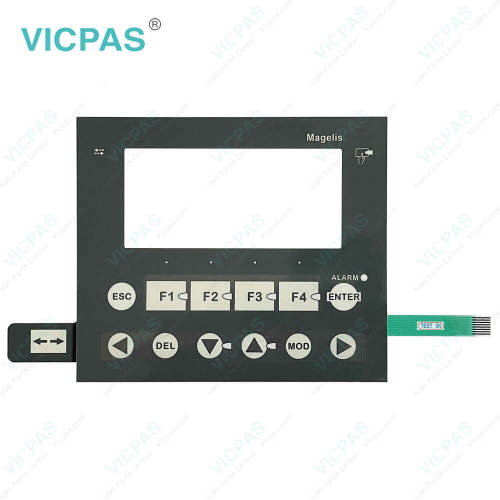

Schneider Magelis HMI XBTRT511 Membrane Keyboard Keypad Repair Part
Order each part separately is available
The XBTRT511 Mmebrane Keypad Keyboard terminal polls the missing equipment (usually a PLC) every 5 seconds. All the configured PLCs in an application should be connected. A missing equipment is therefore considered to be a temporary problem, i.e., the PLC or XBTRT511 Terminal keypad HMI is temporarily disconnected, and communication will resume as soon as the connection is re-established. In this arrangement, degraded communication performance is considered acceptable.
XBTRT511 Keypad Membrane terminals are delivered with 2 insert label sheets providing the following label types to assign different texts or symbols to the keys:
service key labels
function key labels
touch key labels
blank labels
VICPAS supply XBTRT511 Magelis Schneider Operator Panel Keypad with 365 Days warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the XBTRT511 Magelis Schneider Membrane Keyboard Keypad.
| Part Number: | XBTRT511 |
| Display device: | Green backlit LCD |
| Data Entry: | Via keypad |
| Warranty: | 365 Days Warranty |
| Material: | Polyester or Polycarbonate |
| Rated Voltage: | DC 5V 1mA |
| Operating Temp.: | -10℃～+80℃ |
| Storage Temp.: | -20℃～+70℃ |
| Conductive Trace: | Silver or Copper |
| Life Cycle: | 5 Million Cycles(up to) |
Related Magelis Schneider XBT N/R/RT Series Part No. :
| Schneider XBT N/R/RT | Description | Inventory status |
| XBTN200 | Schneider Mgelis XBT N Operator Keyboard Repair | In Stock |
| XBTN400 | Schneider Mgelis XBT N Membrane Keypad Keyboard | In Stock |
| XBTN401 | Magelis HMI XBT N Schneider Keyboard Membrane Replacement | Available Now |
| XBTN410 | Magelis Schneider XBT N Switch Membrane Repair | In Stock |
| XBTNREQ3841G3 | XBT N Schneider Magelis HMI Terminal Keypad | Available Now |
| XBTNU400 | Schneider Magelis XBT N Keyboard Membrane Repair | In Stock |
| XBTPREQ3675G1 | Schneider Terminals Membrane Keypad Keyboard | In Stock |
| XBTR400 | Schneider Magelis XBT R Switch Membrane Repair | In Stock |
| XBTR410 | Schneider XBT R Membrane Keypad Replacement | Available Now |
| XBTR411 | Magelis Schneider XBT R HMI Switch Membrane Repair | Available Now |
| XBTRT500 | Magelis XBT RT Keyboard Membrane Replacement | In Stock |
| XBTRT511 | Schneider Magelis XBT RT HMI Switch Membrane Repair | Available Now |
| Magelis XBT N/R/RT | Description | Inventory status |
Schneider XBT HMI Manuals PDF Download:
FAQ:
Question: What is the display resolution of XBTRT511 Keyboard Membrane?
Answer: The Schneider Terminal XBTRT511 Keyboard Membrane Terminal display is 122 x 32 pixels
Question: How to connect Schneider Magelis XBT RT500 to a PC?
Answer: XBTRT500 terminals can be connected to a PC in 2 different ways:
via the serial port of the PC using the Schneider cable XBT Z945 and the adaptor XBTZRT999
via the USB port of the PC using the Schneider cables XBT Z925 and TSXCUSB485
Connecting XBT RT500 to a serial port of a PC using the Schneider cable XBT Z945 and the adaptor XBT ZRT999
