Model
6AV6644-5AB10-0BS0

Item specifics

Warranty
Days
Brand
Siemens
Product Line
MP377 15
Supply
Siemens MP377 15 HMI Touch Panel Protective Film
Size
15 inch
model
6AV6644-5AB10-0BS0

Review

Description

6AV6644-5AB10-0BS0 Siemens SIMATIC HMI Multi Panel MP377 15 Touchscreen Panel Glass, Plastic Cover, Mounting Clips, Power Supply Connector, LCD Display, Case Gasket and Overlay Repair Replacement

Order each part separately is available

6AV6644-5AB10-0BS0 Siemens SIMATIC HMI Multi Panel MP377 15 Touchscreen Panel Glass, Power Supply Connector, Mounting Clips, Case Gasket, LCD Display, HMI Case and Overlay Repair Replacement


6AV6644-5AB10-0BS0 SIPLUS HMI MP 377 15 inch Touch for medial exposure based on 6AV6644-0AB01-2AX0


The 6AV6644-5AB10-0BS0 Multi Panel MP 377 is an innovative further development of the 370 series. Alongside the familiar 12" and 15" display sizes, a Multi Panel with 19" touch screen has also been added to the range. The distinguishing feature of the HMI devices is that they satisfy ever-increasing demands for technical innovations – especially as far as the display,


The new Multi Panel MP 377 has a TFT display with 64 k colors and enhanced performance levels over the previous devices. The new Multi Panel MP 377 is based on MicrosoftWindows CE 5.0. Compared with previous devices, its multimedia functionality has been greatly extended. Integration of the Microsoft Media Player allows the MP 377 to play videos. Internet Explorer 6.0 for pocket PCs is pre-installed on the HMI devices and extends the ways in which web pages can be displayed. Word documents, Excel spreadsheets and PDF documents can be displayed with Microsoft Viewer.


The user memory has been extended and a remanent maintenance-free message bufferintegrated. A remanent memory area for PLC data is provided to support WinAC MP 2007. Thanks to the wide range of devices, you get to use the device that is suited to you. The 6AV6644-5AB10-0BS0 MP 377 offers a variety of application uses, high performance and a favorable cost/performance ratio.

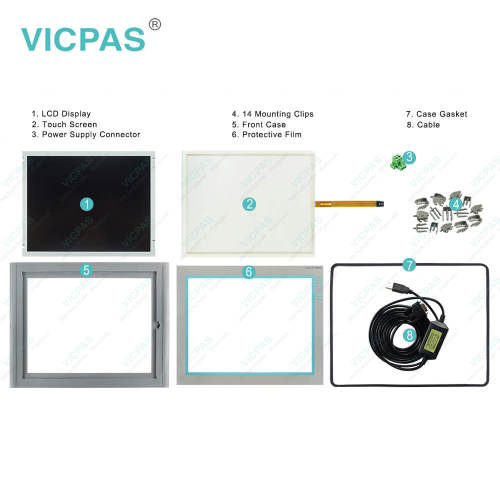

VICPAS supply 6AV6644-5AB10-0BS0 Siemens MP377 15 touch panel glass, protective film, Mounting Clips, LCD Display Panel, Power Supply Connector, Case Gasket and Enclosure. All of them with VICPAS 365-day warranty and support Urgent Worldwide Shipping.






Specifications:

The table below describes the parameters of the 6AV6644-5AB10-0BS0 Siemens MP377 HMI Parts.

Part Number : 6AV6644-5AB10-0BS0
Screen diagonal: 15 in
Design of display: TFT
Warranty: 365 days Warranty
Product Line: Siemens MP377 15
Active power input, typ.: 36 W
MTBF backlighting (at 25 °C): 50 000 h
Number of colors: 65 536
Mounting position: vertical
Type of supply voltage DC


Related Simatic MP377 15 Part No. :

Siemens MP377 15 Description Inventory status
6AV6644-0CB01-2AX0 MP377-15 In Stock
6AV6644-0AB01-2AX0 SIMATIC MP 377 15" TOUCH Available Now
6AV6644-2AB01-2AX0 SIMATIC MP 377 15" TOUCH Available Now
6AV6652-4GA01-0AA0 MP377-15 In Stock
6AG1644-0AB01-4AX0 SIPLUS_MP377_15"_Touch Available Now
6AV6644-8AB20-0AA1 MP 377 DAYLIGHT Available Now
6AV6644-5AB10-0BJ0 MP377-15 In Stock
6AV6644-5AB10-0BS0 SIMATIC MP 377 15" TOUCH In Stock
SIMATIC HMI MP377 15 Description Inventory status

Siemens MP377 HMI Manuals PDF Download:

  • 6AG1644-0AB01-4AX0 Siemens SIMATIC MP377 15 datasheet pdf
  • Siemens Simatic MP377 Panel manual


  • FAQ:

    Question: What is the dimension of Siemens MP377 15 6AV6644-5AB10-0BS0 touch panel??

    Answer:The Siemens MP377 TouchScreen is 15-inch.It is 332 millimeter long and 259 millimeters wide.


    Question: How to update the Siemens MP377 operating system?

    Answer:A compatibility conflict may occur when transferring a project to the HMI device. This iscaused by different versions of the configuration software used and the HMI device imageavailable on the HMI device. If there are different versions, the transfer is aborted. Amessage indicating a compatibility conflict is displayed on the configuring PC.

    There are two ways to match the versions:

  • ●Update the HMI device image if the project was created with the most recent version ofthe configuration software
  • ●Transfer a matching version of the HMI device image if you do not want to adapt theproject for the HMI device to the most recent version of the configuration software for theproject

  • Question: What is the 6AV6644-5AB10-0BS0 Siemens MP377 HMI parts price?

    Answer: Submit a fast quote, send VICPAS an email for best price.
