6AV6644-0AB01-2AX0 Siemens Touch Screen HMI Part Kit

Group Simatic Multi Panel
Min. Order 1 piece
Terms of Payment Western Union, MoneyGram, T/T, Paypal, PayPal, Credit Card
Update Time 2019-11-15
Item specifics
Warranty365 Days
Product LineMP377 15
SupplySiemens MP377 15 HMI Touch Panel Protective Film
Size15 inch

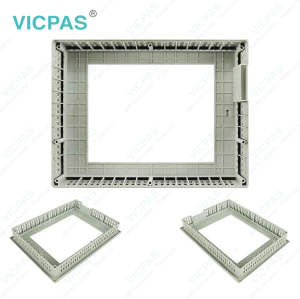

6AV6644-0AB01-2AX0 Siemens SIMATIC HMI Multi Panel MP377 15 Touchscreen Panel Glass, Protective Film and Plastic Cover Repair Replacement

Siemens 6AV6644-0AB01-2AX0 SIMATIC MP 377 15" Touch Multi Panel, Windows CE 5.0 15" color TFT display 12 MB configuration memory configurable from WinCC flexible 2007

The new Multi Panel MP 377 6AV6644-0AB01-2AX0 HMI has a TFT display with 64 k colors and enhanced performancelevels over the previous devices. The new Multi Panel MP 377 is based on MicrosoftWindows CE 5.0. Compared with previous devices, its multimedia functionality has beengreatly extended.

6AV6644-0AB01-2AX0 Operator Interface Terminal, 15-inch, Color, Touchscreen, Intel CPU, 12MB Configuring Memory, 1 x RS-422/485 Interface Port (MPI/DP/PPI), 2 x 10/100 Mbps RJ-45 Ethernet Ports (PROFINET), 1 x SD / Multi Media Card Slot, 1 x CF Card Slot, 2 x USB Ports, 1024x768 TFT LCD with 65K Colors, Line In/Micro and Line Out Ports, Windows CE Operating System, configurable with WinCC Flexible 2007 and higher, 24V DC Power

Integration of the Microsoft Media Player allows the MP 377 to play videos.Internet Explorer 6.0 for pocket PCs is pre-installed on the HMI devices and extends theways in which web pages can be displayed.

VICPAS supply 6AV6644-0AB01-2AX0 Siemens MP377 15 touch panel and overlay. All of them with VICPAS 365 days warranty and support Urgent Worldwide Shipping.

  Contact Best Price


The table below describes the parameters of the 6AV6644-0AB01-2AX0 Siemens MP377 15 HMI Parts.

Part Number : 6AV6644-0AB01-2AX0
Screen diagonal: 15 in
Design of display:TFT
Warranty: 365 days Warranty
Product Line:Siemens MP377 15
Display type:TFT, 65536 colors
Resolution (WxH in pixel): 1024 x 768
Number of colors: 65 536
Touch screen:Analog, resistive
MTBF backlighting: 50000 hours(at 25 °C)

Related Simatic MP377 15 Part No. :

Siemens MP377 15 Description Inventory status
6AV6644-0CB01-2AX0 MP377-15 In Stock
6AV6644-0AB01-2AX0 SIMATIC MP 377 15" TOUCH Available Now
6AV6652-4GA01-0AA0 MP377-15 In Stock
6AG1644-0AB01-4AX0 SIPLUS_MP377_15"_Touch Available Now
SIMATIC HMI MP377 15 Description Inventory status

Siemens MP377 HMI Manuals PDF Download:

  • 6AV6644-0AB01-2AX0 Siemens SIMATIC MP377 15 datasheet pdf
  • Siemens Simatic MP377 Panel manual

  • FAQ:

    Question: How to clean Siemens 6AV6644-0AB01-2AX0 MP377 15 Touch HMI Touchscreen?

    Answer:The HMI touch screen can be cleaned when it is switched on and a project is running. An operating element must be available in the project with which the clean screen can be called up.

    Once the clean screen is activated, touch screen operation is locked for a configuredperiod of time. The time the touch screen is locked can be set between 5 and 30 seconds.The time remaining for the lockout is indicated by a progress bar.


    Unintentional responses

    When cleaning the touch screen, an unintentional response in the controller can betriggered by touching keys.

    Always open the clean screen or switch off the HMI device before you clean the touchscreen while the system is running!

    Once the period for the clean screen has passed, operations are again possible. Avoid datainadvertent operations.

    Cannot be operated when the clean screen is active

    When the clean screen is active, operations on the HMI device are not possible.

    Wait for the period for the clean screen to lapse. Then you can operate the plant again with the HMI device.

    Question: How to make your Simatic MP377 15 HMI look new by protective foil ?

    Answer:Protective foil is available for the Siemens Siamtic HMI device touch screens, make it look new one.

    The self-adhesive protective foil prevents the screen from being scratched and soiled. The matt surface of the protective foil reduces reflections where lighting is poor. The protective foil can be removed without leaving any adhesive residue on the screen.


    Applying and removing the protective foil

    Always switch off the HMI device before applying the protective foil. Otherwise, there is a risk that functions are inadvertently activated. This also applies to remove the protective foil.

    Never use sharp or pointed objects such as a knife to remove the protective foil. You might otherwise damage the touch screen.

    Question: What is the dimension of Siemens MP377 15 touch panel??

    Answer:The Siemens MP377 TouchScreen is 15-inch.It is 332 millimeter long and 259 millimeters wide.

    Question: What is the 6AV6644-0AB01-2AX0 Siemens MP377 HMI parts price?

    Answer: Submit a fast quote, send VICPAS an email for best price.
