Model
6AV6643-0CB01-1AX0

Item specifics

Brand
Siemens
Line
Multi Panel MP277 8''
Warranty
365 days
Status
In Stock
Size
8.4 inch
Model
6AV6643-0CB01-1AX0
Accessories
Touchscreen, lcd display, protective film, plastic case

Review

Description

6AV6643-0CB01-1AX0 Siemens MP277 8'' Touchscreen Panel Glass, Protective Film, LCD Display and plastic case for Repair Replacement

Order each part separately is available

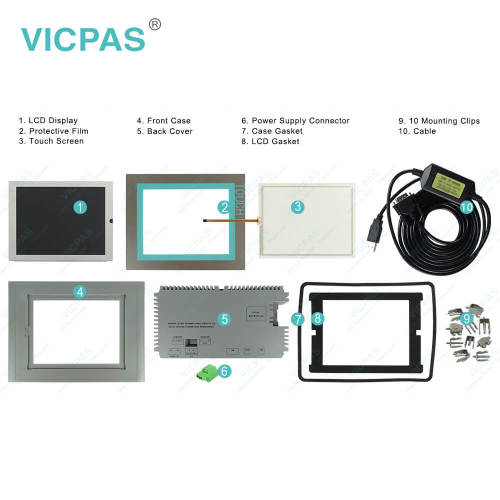

6AV6643-0CB01-1AX0 Siemens SIMATIC HMI Multi Panel  MP277 8 plastic case, touchscreen, front overlay, LCD Display, Screws, LCD Gasket, Case Gasket, Power Supply Connector, Mounting Clips Repair Replacement

The touch screen of the HMI device can be cleaned when it is switched on and a project is running. An operating element must be available in the project with which the clean screen can be called. Once the clean screen is activated, the touch screen operation is locked for a configured period of time. The time the touch screen is locked can be set between 5 and 30 seconds. The time remaining for the lockout is indicated by a progress bar.


VICPAS supply 6AV6643-0CB01-1AX0 Siemens MP277 8" touch panel, overlay, LCD display, plastic case, Mounting Clips, Power Supply Connector, LCD Gasket, Case Gasket, Screws. All of them with VICPAS 365 days warranty and support Urgent Worldwide Shipping.


The HMI device MP 277 8" Touch 6AV6643-0CB01-1AX0  is available in two enclosure models with different product versions. The product version is indicated on the back of the HMI device. SIMATIC MP 277 8" Touch Multi Panel with retentive memory 8" TFT display 6 MB configuration memory configurable with WinCC flexible 2005 Standard SP1.






Specifications:

The table below describes the parameters of the 6AV6643-0CB01-1AX0 Siemens MP277 HMI Parts.

Part Number : 6AV6643-0CB01-1AX0
Screen diagonal: 8.4 in
Design of display: TFT
Warranty: 365 days Warranty
Product Line: Siemens MP277 8
Active power input, typ.: 12 W
MTBF backlighting (at 25 °C): 50 000 h
Number of colors: 65 536
Mounting position: vertical
Type of supply voltage DC


Related Simatic MP277 8 Part No. :

Siemens Multi Panel MP277 8 Description Inventory status
6AV6643-0CB01-1AX0 MP277 8" TOUCH In Stock
6AV6643-0CB01-1AX1 SIMATIC MP 277 8" TOUCH Available Now
6AV6643-0CB01-1AX2 SIMATIC MP 277 8" TOUCH In Stock
6AV6643-0CB01-1AX5 MP 277 8 In Stock
6AV6643-5CB00-0ND1 SIMATIC MP 277 8" Touch Multi Panel In Stock
6AV6643-5CB10-0HW0 SIMATIC MP 277 8″ TOUCH MULTI PANEL Available Now
6AV6652-3MB01-0AA0 SIMATIC Multi Panel MP277-8 Available Now
6AV6652-3MC01-1AA0 SIMATIC MP277-8 Available Now
SIMATIC Multi Panel Description Inventory status

Siemens MP277 HMI Manuals PDF Download:

  • Siemens HMI MP277-8 6AV6643-0CB01-1AX0 Operating Instructions
  • Siemens Simatic MP277 Panel manual
  • Siemens Simatic MP 277 8 Touch manual


  • FAQ:

    Question: How to setting the Siemens MP277-8 HMI 6AV6643-0CB01-1AX0's Date and Time?

    Answer:
    1. Select the appropriate time zone for the HMI device in the "Time Zone" selection box.
    How to setting the Siemens MP277-8 HMI 6AV6643-0CB01-1AX0's Date and Time?
    2. Touch the "Apply" button to confirm your entry.The time of day shown in the "Current Time" field is adjusted correspondingly to the selected time zone.
    3. Set the date in the selection box.
    4. Set the current time of day in the "Current Time" text box.
    5. If you want to switch from standard time to daylight saving time, select the "Daylight saving time currently in effect" check box.When you press the "Apply" button, the time is brought forward by one hour.
    6. If you want to switch from daylight saving time to standard time, deactivate the "Daylight saving time currently in effect" check box.When you press the "Apply" button, the time is brought back by one hour.
    7. Confirm your entries.The dialog box closes.The settings for the date and time of day have now been changed.


    Question: What is the 6AV6643-0CB01-1AX0 Siemens MP277 HMI parts price?

    Answer: Submit a fast quote, send VICPAS an email for best price.


    Question: How to change MP 277 8" 6AV6643-0CB01-1AX0 E-mail Setting?

    Answer:You have opened the "WinCC Internet Settings" dialog box with the "WinCC Internet Settings" icon.
    1. Specify the SMTP server. – Select the "Use the default of the project file" option button if you want to use the SMTP server configured in the project. – Deactivate the "Use the default of the project file" option button if you do not want to use the SMTP server configured in the project. – Specify the required SMTP server.
    2. Enter the name for the sender in the "Name of sender" text box.
    3. Enter the e-mail account for your e-mail in the "E-mail address of sender" text box. Some e-mail providers only allow you to send mail if you specify the e-mail account. The "E-mail address of sender" text box can remain empty if your e-mail provider allows you to send mail without checking the account.
    4. If you want to save the e-mail settings, press the "Advanced" button.
     How to change MP 277 8" 6AV6643-0CB01-1AX0 E-mail Setting?
    5. Confirm your entries.
    The dialog box closes.
    The e-mail settings have been changed.
