ATS48C48Y ATS48C59Y ATS48C66Y ATS48C79Y Membrane Keypad
ATS48C48Y ATS48C59Y ATS48C66Y ATS48C79Y Membrane Keypad
Model
ATS48C48Y ATS48C59Y ATS48C66Y ATS48C79Y

Item specifics

Brand
Schneider
Warranty
365 Days
Supply
Altistart 48 Soft Starter Operator Panel Keypad
Model
ATS48C48Y ATS48C59Y
Model
ATS48C66Y ATS48C79Y
Range of product
Schneider ATS48

Review

Description

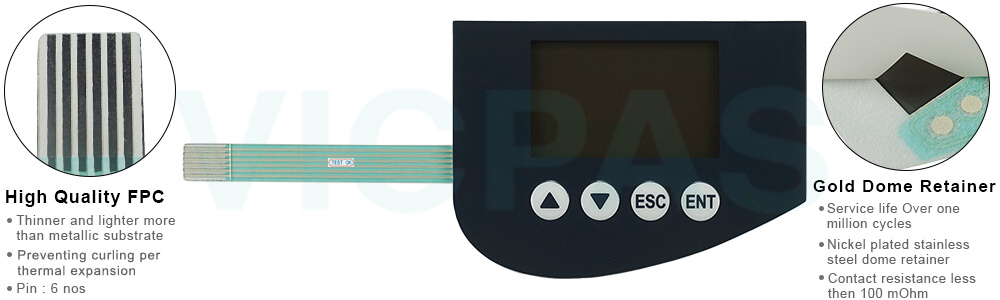

Altistart 48 ATS48C48Y ATS48C59Y ATS48C66Y ATS48C79Y Operator Keyboard Repair Replacement


Schneider HMI ATS48C48Y ATS48C59Y ATS48C66Y ATS48C79Y Terminal Keypad Repair Kit

Compatible with Schneider Altistart 48 soft starters, this VICPAS replacement ATS48C48Y ATS48C59Y ATS48C66Y ATS48C79Y Keyboard Membrane combines industrial-grade durability with intuitive user operation. Engineered to complement the core performance of Altistart 48, it supports smooth torque-controlled acceleration and deceleration for 2-1200 HP (3-900 kW) three-phase asynchronous motors, seamlessly complementing its six thyristor power configuration and patented Torque Control System™ (TCS). Even without speed feedback, it assists in delivering constant starting and stopping rates independent of motor loading.


Whether used in normal or heavy duty applications with three-phase voltages 208 to 690 V, 50/60 Hz, the ATS48C48Y ATS48C59Y ATS48C66Y ATS48C79Y Keypad Membrane Switch ensures seamless integration with the machine: Its intuitive interface allows easy configuration of motor thermal overload protection (Class 30, Class 25, Class 20 for severe duty, Class 15, Class 10 for standard duty, Class 10 A, and sub-class 2) to adapt to specific application needs. In pumping scenarios, it aids the TCS in eliminating long start/stop times, hydraulic transients, and check valve slamming associated with traditional "pump version" voltage ramp soft starts.


Featuring plug-and-play compatibility with no firmware modification or additional tools required, the ATS48C48Y ATS48C59Y ATS48C66Y ATS48C79Y Membrane Keyboard Keypad perfectly leverages the high-performance algorithms of Altistart 48: It simplifies setup processes, enhances the soft starter’s robustness through precise parameter configuration, and ultimately reduces installation and maintenance costs while extending equipment lifespan.




Specifications:

The table below describes the parameters of the ATS48 Soft Starter ATS48C48Y ATS48C59Y ATS48C66Y ATS48C79Y Switch Membrane.

Part Number: ATS48C48Y ATS48C59Y
Relative Humidity: <= 95 %, non-condensing
Physical Interface: RS485 multidrop
Warranty: 365 Days Warranty
Part Number: ATS48C66Y ATS48C79Y
Range of Product: Altistart 48
Operating Temp.: -10 °C to 40 °C, without derating
Storage Temp.: -25 °C to 70 °C


Related Schneider Altistart 48 Series Part No. :

Schneider Altistart 48 Description Inventory status
Schneider ATS48 Description Inventory status


Schneider ATS48 HMI Manuals PDF Download:

  • Altistart 48 Soft Starters for Asynchronous Motors
  • Altivar Soft Starter ATS48 to ATS480 Substitution Manual

  • FAQ:

    Question: What is the Schneider ATS48C48Y ATS48C59Y ATS48C66Y ATS48C79Y Operator Panel Keypad HMI price?

    Answer: Submit a fast quote, send VICPAS an email for best price.


    Question: What functions does the ATS48C48Y ATS48C59Y ATS48C66Y ATS48C79Y Terminal Keypad provide?

    Answer: The keypad allows the operator to start/stop the motor, monitor real-time status, display operating parameters, and access fault/error codes for troubleshooting.


    Question: What payment options are available?

    Answer: We accept various payment methods, including PayPal, credit cards, and bank transfers.
