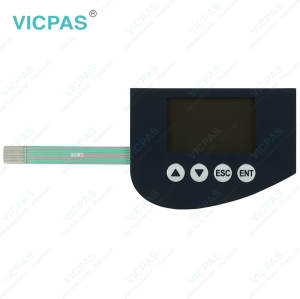

XBTR410 Magelis Schneider Membrane Keypad Switch
XBTR410 Magelis Schneider Membrane Keypad Switch
Model
XBTR410

Item specifics

Brand
Schneider
Warranty
365 Days
Product Line
Schneider Magelis XBT R series
Supply
XBTR410 Operator Panel Keypad
Model
XBTR410

Review

Description

Schneider Magelis HMI XBTR410 Membrane Keyboard Keypad Repair Part


Schneider Magelis HMI XBTR410 Membrane Keyboard Keypad Repair Kit

The XBTR410 Mmebrane Keypad Keyboard terminal polls the missing equipment (usually a PLC) every 5 seconds. All the configured PLCs in an application should be connected. A missing equipment is therefore considered to be a temporary problem, i.e., the PLC or XBTR410 Terminal keypad HMI is temporarily disconnected, and communication will resume as soon as the connection is re-established. In this arrangement, degraded communication performance is considered acceptable.


XBTR410 Keypad Membrane terminals are delivered with an insert label sheet providing the following label types to assign different texts or symbols to the keys:
 function key labels
 blank labels


VICPAS supply XBTR410 Magelis Schneider Operator Panel Keypad with 365 Days warranty and support Urgent Worldwide Shipping.





Specifications:

The table below describes the parameters of the XBTR410 Magelis Schneider Membrane Keyboard Keypad.

Part Number: XBTR410
Display device: Green backlit LCD
Data Entry: Via keypad
Warranty: 365 Days Warranty
Material: Polyester or Polycarbonate
Rated Voltage: DC 5V 1mA
Operating Temp.: -10℃~+80℃
Storage Temp.: -20℃~+70℃
Conductive Trace: Silver or Copper
Life Cycle: 5 Million Cycles(up to)


Related Magelis Schneider XBT N/R/RT Series Part No. :

Schneider XBT N/R/RT Description Inventory status
XBTN200 Schneider Mgelis XBT N Operator Keyboard Repair In Stock
XBTN400 Schneider Mgelis XBT N Membrane Keypad Keyboard In Stock
XBTN401 Magelis HMI XBT N Schneider Keyboard Membrane Replacement Available Now
XBTN410 Magelis Schneider XBT N Switch Membrane Repair In Stock
XBTNREQ3841G3 XBT N Schneider Magelis HMI Terminal Keypad Available Now
XBTNU400 Schneider Magelis XBT N Keyboard Membrane Repair In Stock
XBTPREQ3675G1 Schneider Terminals Membrane Keypad Keyboard In Stock
XBTR400 Schneider Magelis XBT R Switch Membrane Repair In Stock
XBTR410 Schneider XBT R Membrane Keypad Replacement Available Now
XBTR411 Magelis Schneider XBT R HMI Switch Membrane Repair Available Now
XBTRT500 Magelis XBT RT Keyboard Membrane Replacement In Stock
XBTRT511 Schneider Magelis XBT RT HMI Switch Membrane Repair Available Now
Magelis XBT N/R/RT Description Inventory status


Schneider XBT HMI Manuals PDF Download:

  • Schneider MAGELiS® Operator Terminals Guide
  • Schneider MAGELiSä XBT Operator Interface Brochure
  • Magelis™ XBTN and XBTR Small Panels PDF
  • Schneider Magelis_XBTN_XBTNU400 Product Datasheet
  • Magelis Schneider XBT N_R_RT Compact Display Units User Manual

  • FAQ:

    Question: How to connect Schneider Magelis XBT N410 / N401 / NU400 / R410 / R411 to a PC?

    Answer: XBT N410 / N401 / NU400 / R410 / R411 terminals can be connected to a PC in 2 different ways:
     via the serial port of the PC using the Schneider cable XBT Z915
     via the USB port of the PC using the Schneider cables XBT Z925 and TSXCUSB485
    How to connect Magelis Schneider Terminal XBT N200 / N400 / R400 to a PC?
    How to connect Schneider Magelis XBT N410 / N401 / NU400 / R410 / R411 to a PC?


    Question: What is the display resolution of XBT R410 Keyboard Membrane?

    Answer: The Schneider Terminal XBT-R410 Keyboard Membrane Terminal display is 122 x 32 pixels
