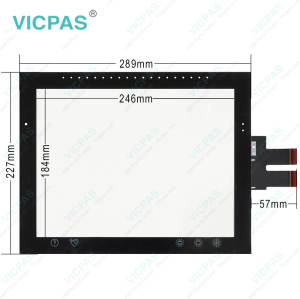

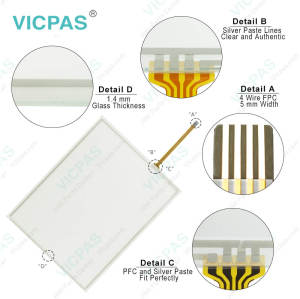

Trimble Slate Touch Digitizer Glass Replacement
- Model
- Trimble Slate
Item specifics
- Brand
- Trimble
- Warranty
- 365 Days
- Product Line
- Trimble series
- Supply
- Trimble Slate Touch Panel
- Size
- 12.1 inch
- Model
- Trimble Slate
Review
Description
Trimble Slate Touch Screen Tablet Repair Replacement Kit.
Order each part separately is available
The Trimble® Trimble Slate is an in-cab touchscreen display that provides affordable guidance, steering and precision agriculture functionality. The Trimble Slate Touch screen panel glass includes a built-in GPS receiver that you can upgrade to receive GLONASS satellite signals. The Trimble Slate Touch Panel is used in agricultural applications to maximize efficiency in activities such as planting, spraying, spreading and strip tilling.
VICPAS supply Trimble Slate Trimble Touchscreen glass with 365 Days warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the Trimble Slate HMI Panel Glass.
| Part Number: | Trimble Slate |
| Screen diagonal: | 4.3 in |
| Warranty: | 365 Days |
| Product Line: | Trimble Series |
| Input Power: | +24 VDC +/-20% |
| Resolution: | 320 x 240 dot |
| Storage Temperature: | -20°C to 60°C |
| Display Size: | STN |
Related Trimble Series Part No. :
| Trimble HMI | Description | Inventory status |
| Trimble FMX FM-1000 | Trimble Membrane Keypad Touchscreen Repair | In Stock |
| Trimble Slate | Trimble Keyboard Membrane Touch Screen Monitor | In Stock |
| Trimble T10 Tablet | Touch Screen Glass Operator Keyboard Trimble | Available Now |
| Trimble TCU3 | Trimble Touch Digitizer Glass Membrane Switch | In Stock |
| Trimble TCU5 | Trimble Touch Screen Panel Keypad Membrane | In Stock |
| Trimble TSC2 AMT98636 | Trimble Touch Screen Glass Membrane Keyboard | In Stock |
| Trimble TSC3 AMT10476 | Touch Digitizer Glass Trimble Membrane Keypad | Available Now |
| Trimble TSC7 | Trimble Membrane Keyboard Keypad Replacement | In Stock |
| Trimble YUMA 2 Rugged | Terminal Keypad HMI Panel Glass Trimble Repair | Available Now |
| Trimble HMI | Description | Inventory status |
Trimble Series HMI Manuals PDF Download:
FAQ:
Question:How to install the Trimble Slate?
Answer:
1. Use the supplied screws to firmly attach the diamond-shaped mounting plate to the display:
3. Select a position in the cab for the display. Hold the display in the selected location and check that it is easily accessible form the driver’s seat.
4. Use the provided bolts to attach the bar mount to the cab.
5. Attach the other end of the RAM mount to the ball on the bar mount and then tighten the screw.
6. Connect the display to a power source.
