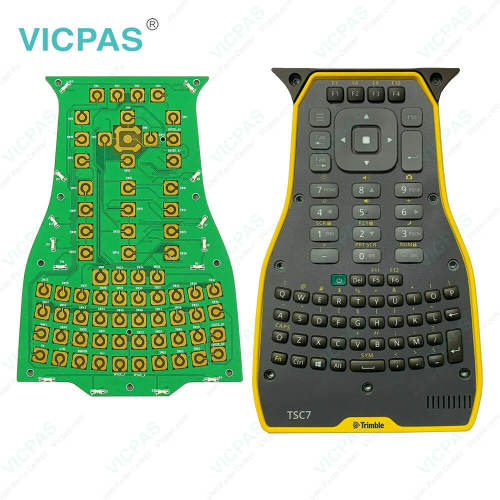

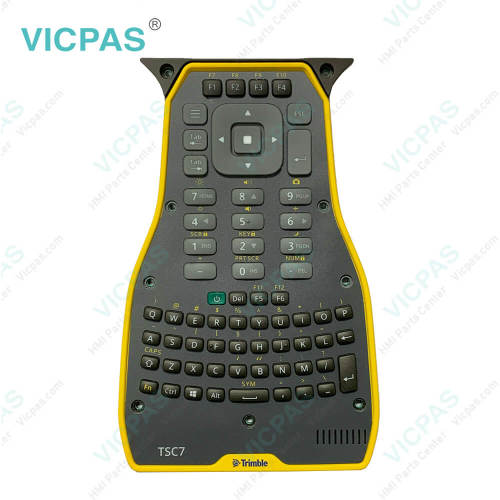

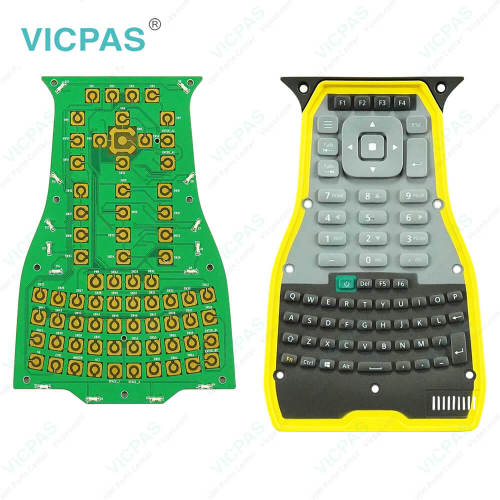

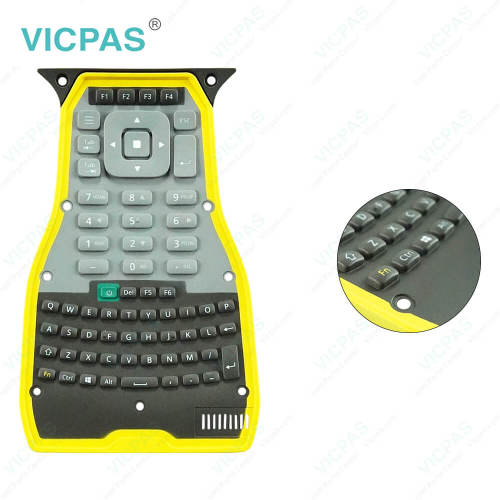

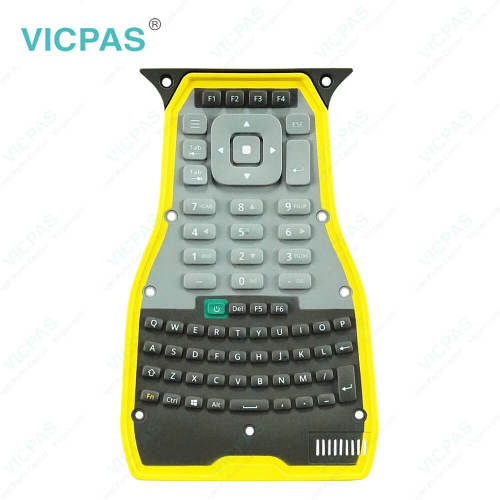

Trimble TSC7 Membrane Keyboard Keypad Replacement
- Model
- Trimble TSC7
Item specifics
- Brand
- Trimble
- Warranty
- 365 Days
- Product Line
- Trimble TSC7 series
- Supply
- Trimble TSC7 Membrane Keypad Switch Repair Parts
- Size
- 7 inch
- Model
- Trimble TSC7
Review
Description
Trimble TSC7 Membrane Keypad Repair Replacement Kit.
VICPAS supply TSC7 Trimble Membrane Keyboard Keypad with 365 Days warranty and support Urgent Worldwide Shipping. To make the TSC7 keypad easier to use, you can configure the modifier keys as Sticky Keys. When enabled, the modifier keys “stick down” when pressed so that they do not have to be held while the other TSC7 key is pressed.
Your TSC7 controller can be easily operated with the touchscreen (using your fingers, a stylus, or a glove), an onscreen keypad, or the full built-in keypad. Use the Touch Control app on the device to select or switch between any of the touchscreen input methods. You can type on the TSC7 device using the TSC7 touchscreen keypad. To access the onscreen keypad, tap in a text field, or tap the keypad icon in the taskbar. To hide the TSC7 keypad, tap anywhere out of the text field, or tap the keypad icon again.
Specifications:
The table below describes the parameters of the Trimble TSC7 Membrane Keypad.
| Part Number: | TSC7 |
| Display Type: | STN |
| Warranty: | 365 Days |
| Product Line: | Trimble TSC7 Series |
| Input Power: | +24 VDC +/-20% |
| Storage Temperature: | -20°C to 60°C |
| Screen diagonal: | 7 in |
Related Trimble Series Part No. :
| Trimble HMI | Description | Inventory status |
| Trimble FMX FM-1000 | Trimble Membrane Keypad Touchscreen Repair | In Stock |
| Trimble Slate | Trimble Keyboard Membrane Touch Screen Monitor | In Stock |
| Trimble T10 Tablet | Touch Screen Glass Operator Keyboard Trimble | Available Now |
| Trimble TCU3 | Trimble Touch Digitizer Glass Membrane Switch | In Stock |
| Trimble TCU5 | Trimble Touch Screen Panel Keypad Membrane | In Stock |
| Trimble TSC2 AMT98636 | Trimble Touch Screen Glass Membrane Keyboard | In Stock |
| Trimble TSC3 AMT10476 | Touch Digitizer Glass Trimble Membrane Keypad | Available Now |
| Trimble TSC7 | Trimble Membrane Keyboard Keypad Replacement | In Stock |
| Trimble YUMA 2 Rugged | Terminal Keypad HMI Panel Glass Trimble Repair | Available Now |
| Trimble HMI | Description | Inventory status |
Trimble Series HMI Manuals PDF Download:
FAQ:
Question: What is the dimension of Trimble TSC7 Membrane Keyboard Keypad?
Answer:The dimension of TSC7 Trimble Terminal Keypad is 7 inch.
Question: How to installing the Trimble TSC7 batteries?
Answer:
1. Turn the battery latch 90° clockwise or anticlockwise until the flat edge aligns with a battery opening.
NOTE – You can use a coin or the top of the stylus to do this.
2. Insert a battery, then turn the battery latch 180° until the flat edge aligns with the second battery opening.
3. Insert a second battery.
4. Turn the battery latch 90° back to the center position to lock both batteries in place.
