ATS22C11Q ATS22C11S6 ATS22C11S6U Membrane Switch Repair
ATS22C11Q ATS22C11S6 ATS22C11S6U Membrane Switch Repair
Model
ATS22C11Q ATS22C11S6 ATS22C11S6U

Item specifics

Brand
Schneider
Warranty
365 Days
Supply
ATS22C11Q ATS22C11S6 Operator Keyboard
Supply
ATS22C11S6U Keypad Membrane Replacement
Product Line
Schneider ATS22

Review

Description

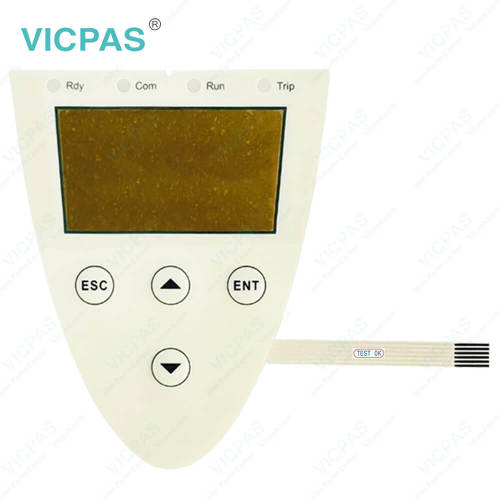

Schneider Altistart 22 ATS22C11Q ATS22C11S6 ATS22C11S6U Terminal Keypad Repair Replacement


Altistart 22 ATS22C11Q ATS22C11S6 ATS22C11S6U Keypad Membrane Switch Repair Kit

Compatible with Schneider Altistart 22 ATS22C11Q ATS22C11S6 ATS22C11S6U soft starters, this VICPAS replacement membrane keypad combines industrial-grade durability with intuitive user operation. Optimized for soft start/soft stop control of asynchronous motors in equipment such as fans, pumps, and conveyors, it ensures seamless integration with ATS22C11Q ATS22C11S6 ATS22C11S6U and long-term reliable performance.


The ATS22C11Q ATS22C11S6 ATS22C11S6U control keypad features plug-and-play compatibility with no firmware modification or additional tools/software required, perfectly leveraging the cost-effective advantages of the Altistart 22 series: it reduces installation costs by matching the soft starter’s optimized size and integrated bypass function to shorten wiring time; alleviates stress on power distribution systems by minimizing current spikes and voltage drops during motor startup; and cuts machine running costs by reducing mechanical stress on components.


VICPAS supplies replacement Schneider ATS22C11Q ATS22C11S6 ATS22C11S6U Operator Panel Keypads with a 12-month warranty and offers urgent worldwide shipping.




Specifications:

The table below describes the parameters of the Altistart 22 Schneider ATS22C11Q ATS22C11S6 ATS22C11S6U Operator Keyboard.

Brand: Schneider
Connector Type: RJ45
Warranty: 365 Days Warranty
IP Degree of Protection: IP20
Range of Product: Altistart 22
Operating Temp.: -10 °C to 40 °C, without derating
Storage Temp.: -25 °C to 70 °C
Relative Humidity: 0…95 % non-condensing


Related Schneider Altistart 22 Series Part No. :

Schneider Altistart 22 Description Inventory status
ATS22C11Q Schneider ATS22 Membrane Keypad Switch Repair In Stock
ATS22C11S6 Altistart 22 Schneider Membrane Keypad Overlay In Stock
ATS22C11S6U Schneider ATS 22 Operator Keypad Replacement Available Now
ATS22C14Q ATS22 Schneider HMI Membrane Keyboard Repair In Stock
ATS22C14S6 Schneider Altistart 22 Soft Starter Terminal Keypad Available Now
ATS22C14S6U Schneider Altistart 22 Keyboard Membrane Repair In Stock
ATS22C17Q Schneider Terminals Membrane Keypad Keyboard In Stock
ATS22C17S6 Schneider Altistart 22 Operator Keyboard Repair In Stock
ATS22C17S6U Altistart 22 Schneider Terminal Keypad Replacement Available Now
ATS22C21Q Altistart 22 Schneider HMI Switch Membrane Repair Available Now
ATS22C21S6 Schneider Altistart 22 Membrane Keyboard Keypad In Stock
ATS22C21S6U Schneider Operator Panel Keypad HMI Replacement In Stock
ATS22C25Q ATS22 Soft Starter Front Panel Keypad Replacement Available Now
ATS22C25S6 Schneider Altistart 22 Membrane Keyboard Keypad In Stock
ATS22C25S6U Schneider ATS22 Keypad Membrane Switch Repair Available Now
Schneider ATS22 Description Inventory status


Schneider ATS22 HMI Manuals PDF Download:

  • Altistart 22 Soft Start - Soft Stop Unit User Manual
  • Altistart 22 Soft Start - Soft Stop Units Catalog

  • FAQ:

    Question: Is the keyboard of the ATS22C11Q ATS22C11S6 ATS22C11S6U unit replaceable?

    Answer: Yes, the keypad membrane of ATS22C11Q ATS22C11S6 ATS22C11S6U soft starters can be replaceable.


    Question: What is RTU mode?

    Answer: The transmission mode used is RTU mode. The frame contains no message header byte, nor end of message bytes.
    It is defined as follows:
    RTU
    The data is transmitted in binary code.
    CRC16: cyclical redundancy check.
    The end of the frame is detected on a silence greater than or equal to 3 characters.
