MULTIVAC 5D5500.48 Provit 5500 Touch Screen Panel Overlay

Model: MULTIVAC 5D5500.48

Item specifics

Touch screen panel type: Resistance touch screen

Brand: B&R

Warranty: 1 Year VICPAS Warranty

Model: B&R Provit 5500 MULTIVAC 5D5500.48

Shipping: DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX

Review

Description

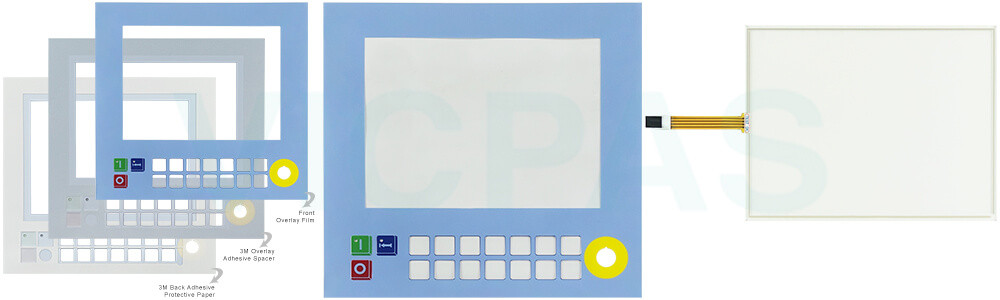

B&R Provit 5500 MULTIVAC 5D5500.48 Front Overlay Touch Panel Replacement

Order each part separately is available

Provit 5500 MULTIVAC 5D5500.48 Protective Film Touchscreen Glass

When mounting the Provit 5500 MULTIVAC 5D5500.48 display unit on the controller unit (standard mounting) the Provit 5500 MULTIVAC 5D5500.48 display is fastened on the controller with the six screws included in the delivery. The B&R Provit 5500 MULTIVAC 5D5500.48 FPD and touch screen connection cables for standard installation are included in the delivery. The B&R Provit 5500 MULTIVAC 5D5500.48 touch screen cable is connected to a controller's RS232 interface.

All of the B&R Provit 5500 MULTIVAC 5D5500.48 IPC's basic functions are implemented on the mainboard. These mainly include:
• Processor socket
• Chipset
• 2nd level cache
• DRAM socket
• Plug for the bus unit (power supply, ISA, PCI and IDE buses)
• Super I/O controller (COM1, COM2, LPT1, external FDD interface, PS/2 mouse, keyboard controller, USB interfaces, system clock)
• VGA controller (with CRT and FPD connection)
• Status LEDs
• Battery
• Reset button
• Recovery mode jumper
• MTC maintenance controller (Panelware module operation, keyboard operation, Panellink FPD interface, temperature monitoring with fan control)

Contact Best Price

Specifications:

The table below describes the parameters of the MULTIVAC 5D5500.48 Provit 5500 Touchscreen Panel Protective Film.

Part Number:	MULTIVAC 5D5500.48
Product Line:	Provit 5500
Screen Diagonal:	in
Warranty:	365 Days Warranty
Input Power:	24 VDC

Display Type:	TFT color
Mounting Position:	Vertical
Input Type:	Touchscreen
Serial Interface Type:	RS232
Storage:	-20 to 60°C

Related B&R HMI Series Part No. :

B&R Provit	Description	Inventory status
B and R Provit	Description	Inventory status

FAQ:

Question: How can the B&R Provit 5500 MULTIVAC 5D5500.48 lifespan of backlights be extended?

Answer:
• Set the display brightness to the lowest value that is still comfortable for the eyes
• Use dark images
• Reducing the brightness by 50% can result in an approximate 50% increase of the half-brightness time.

Question: How to change the B and R Provit 5500 MULTIVAC 5D5500.48 power supply?

Answer:
1. Disconnect the power supply.
2. Unlock fuse holders by turning the slotted bolt in the direction of arrow
How to change the B and R Provit 5500 MULTIVAC 5D5500.48 power supply?
3. Remove the fuse holder.
4. Remove the old fuse from the fuse holder.
5. Insert the new fuse.
6. Replace the fuse holder. It can be fastened by using a flat head screwdriver in the opposite direction of the arrow.
7. Reconnect the power supply.

Question: What measures can be taken against preventing after-image effect in Provit 5500 MULTIVAC 5D5500.48 LCD/TFT monitors?

Answer: There is no total solution; however, measures can be taken to significantly reduce this effect:
• Avoid static pictures or screen content
• Use screen savers (moving) when the display is not in use
• Frequent picture change
• Shut off the display when not in use
Turning off the background lighting (backlight) does not influence the prevention of the afterimage effect.
