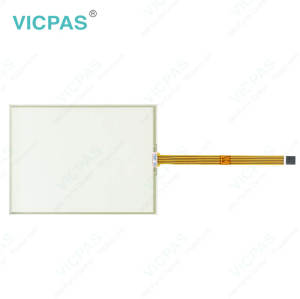

B&R 5D2300.03 Provit 2000 Touch Screen Panel Glass
B&R 5D2300.03 Provit 2000 Touch Screen Panel Glass
B&R 5D2300.03 Provit 2000 Touch Screen Panel Glass
B&R 5D2300.03 Provit 2000 Touch Screen Panel Glass
Model
5D2300.03

Item specifics

Brand
B&R
Size
9.4 inch
Warranty
1 Year VICPAS Warranty
Model
B&R Provit 2000 5D2300.03
Shipping
DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX

Review

Description

B&R Provit 2000 5D2300.03 Touch Screen Panel Repair Replacement

Provit 2000 Touch Screen Panel

Provit 2000 5D2300.03 BIOS stands for "Basic Input Output System". 5D2300.03 BIOS setup is the most basic standardized connection between the user and the system. Elite BIOS from Award Software is used on the IPC2001. The Setup program lets you modify basic system configuration settings. The settings are then stored in Flash PROM and a dedicated battery-backed memory, called CMOS RAM, which retains the information when the power is turned off. Elite BIOS on the IPC 2001 is a customized version of an industry-standard BIOS for IBM PC AT-compatible personal computers. It supports Intel x86 and compatible processors. The Provit 2000 5D2300-03 BIOS provides critical low-level support for the central processing unit, memory and I/O subsystems. 5D2300.03 BIOS has been customized by adding important, but nonstandard, features such as virus or password protection, power management, and detailed fine-tuning of the chipset controlling the system. The following information is intended to guide you through the process of configuring your system using Setup.


VICPAS supply B and R Provit 2000 5D2300.03 touchscreen panel for repair replacement, make the HMI running. We provide a 365 days VICPAS warranty of the most product, which include most of touch screen panel, membrane keypad, protective film, LCD display and protective case shell housing.


Complete compatibility to the IPC2000 controller was given high priority when developing the new IPC2001. The 5D2300-03 mechanical dimensions, electrical properties and software (BIOS) make it possible to run existing application software without having to make additional changes.
• The most important differences as compared to the IPC2000 are:
• Better computing power using new processors with built-in math processor (80486DX2-66 MHz, 80486DX5-133 MHz)
• Faster graphics controller (65550) with local bus interface and 1 MByte video memory
• More memory (8 to 32 MByte, for e.g. MS-Windows® 95, MS-Windows® NT, etc.)
• ISA Adapter for a 16 Bit ISA card
• Integral battery voltage monitoring
• Backup of CMOS Setup data in FPROM



  Contact Best Price


Specifications:

The table below describes the parameters of the 5D2300.03 Provit 2000 Touchscreen Panel.

Part Number : 5D2300.03
Product Line:Provit 2000
Screen diagonal9.4 in
Warranty: 365 Days Warranty
Input Power24 VDC
Display Type:TFT color
Mounting position: Vertical
Input Type: Touchscreen
Serial interface Type:RS232
Storage -20 to 60°C


Related Provit Series Part No. :

B&R Provit Description Inventory status
5D2300.02 B&R Provit 2000 Touch Screen Hmi Repair In Stock
5D2300.03 Provit 2000 B and R Touch Digitizer Glass Available Now
5D2500.01 B&R Provit 2500 Operator Keyboard Repair In Stock
5D2500.02 Provit 2500 B and R HMI Terminal Keypad Available Now
5D2500.10 Provit 2500 B and R 2500 Keyboard Membrane In Stock
5D2500.22 B&R Provit 2500 Membrane Keyboard In Stock
5D2500.36 B&R Provit 2500 HMI Membrane Keypad Repair In Stock
5D2500.41 B and R Provit 2500 Membrane Keyboard Keypad Available Now
5D2500.47 B&R Provit 2500 Membrane Switch Repair Available Now
5D2510.01 Provit 2500 B&R Keyboard Membrane Replacement In Stock
5D2510.10 B and R Provit 2500 Operator Panel Keypad In Stock
5D2510.22 Provit 2500 B and R Keypad Membrane Available Now
5D2519.01 B&R Provit 2500 Switch Membrane Repair In Stock
5D2519.02 Provit 2500 B and R Membrane Keyboard Keypad In Stock
5D2519.08 B&R Provit 2500 Membrane Keypad Switch Repair In Stock
B and R Provit Description Inventory status

B&R Provit Manuals PDF Download:

  • B&R Provit 2000 User's Manual
  • B&R PROVIT 2000 User's Manual Display Kits
  • B&R PROVIT 2000 User's Manual 10.4-in Display Kit

  • FAQ:

    Question: How to upgrade B&R Provit 2000 5D2300.03 BIOS Software?

    Answer: The following steps should be carried out to upgrade or save 5D2300.03 BIOS:
    • Create bootable media.
    How to upgrade B&R Provit 2000 5D2300.03 BIOS Software?<br />
    • Copy the contents of the *.zip file to the bootable media. If the B&R upgrade was already added when the bootable media was created using the B&R Embedded OS Installer, then this step is not necessary.
    • Connect the bootable media to the Power Panel and reboot the device.
    • The following start menu will be shown after booting.
    How to upgrade B&R Provit 2000 5D2300.03 BIOS Software?<br />
    How to upgrade B&R Provit 2000 5D2300.03 BIOS Software?<br />
    • The system must be rebooted after a successful upgrade.


    Question: What is the procedure of creating a bootable USB flash drive for B&R 5D2300.03 upgrade files?

    Answer:
    • Connect the USB flash drive to the PC.
    • If the drive list is not refreshed automatically, the list must be updated using the command Drives > Refresh.
    • Mark the desired USB flash drive in the drive list.
    • Change to the Action tab and select Install a B&R Update to a USB flash drive as type of action.
    • Enter the path to the MS-DOS operating system files. If the files are part of a ZIP archive, then click on the button By ZIP file.... If the files are stored in a directory on the hard drive, then click on the button By folder....
    • In the B&R Upgrade text box, it's also possible to enter the path to the ZIP file for the B&R Upgrade Disk and select the file.
    • Click on the Start action button in the toolbar.


    Question: What is the B&R Provit 2000 5D2300.03 touch screen panel price?

    Answer: Submit a fast quote, send VICPAS an email for best price.

    Common misspellings:

    5D230.03

    5D2300.3

    5D230.003

    5D2300.o3

    55D2300.03
