PH41230101 Rev.B Touch Screen LCD Display Screen Repair
- Model
- PH41230101 Rev.B
Item specifics
- Brand
- John Deere
- Warranty
- 365 Days
- Product Line
- PH41230101 Rev.B
- Supply

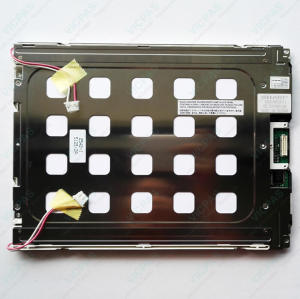

- PH41230101 Rev.B LCD Display Panel
- Supply
- PH41230101 Rev.B Touchscreen Repair
- Parts
- Touch Screen Panel LCD Display
- Diagonal screen size
- 8.4'' touchscreen
Review
Description
Supply John Deere PH41230101 Rev.B Touchscreen Panel LCD Display for Repair
VICPAS supply touch screen panel and Lcd display for John Deere PH41230101 Rev.B repair replacement, all of them are brand new with 365 days VICPAS warranty.
The John Deere PH41230101 Rev.B provides the latest update and improved operating experience for legacy John Deere machines and mixed-fleet operators loaded with benefits such as documentation and variable-rate application functionality included in base price of the display, easy setup and startup of operations, documentation and setup data exchange with John Deere Operations Center through Wireless Data Transfer (WDT) and the ability to precisely map and operate Section Control for up to 255 sections for all ISOBUS implements.
The Gen 4 Universal Display can be set to one of two profiles, administrator or operator. The administrator profile is always set to the full access group. This group allows unlimited access to all of the featurcanlity to lock and unlock features in the operator profile.
ON-SCREEN HELP AND DIAGNOSTIC TEXT
There are a number of different ways to get meaningful on-screen help when navigating the Gen 4 Universal Display. The help icon is located on the default shortcut bar on the bottom of the run page. This icon gives detailed information of all contents of the operating system. Simply select the help icon and navigate to the information section that is needed.
Additionally, application-based help is also available in all locations of the Gen 4 Universal Display. Simply click on the {i} icon available on the title bar to see more information on the application currently being used.
Diagnostic text and information throughout the operating system is available for better understanding of whether applications are operating as directed.
More information about John Deere PH41230101 Rev.B downland the PH41230101 Rev.B operator's Manual PDF
Specifications:
The table below describes the parameters/Specifications of the PH41230101 Rev.B Touchscreen Panel Glass LCD Display.
| Part Number: | PH41230101 Rev.B |
| Product Line: | John Deere |
| Screen diagonal | 8.4'' |
| Warranty: | 365 Days Warranty |
| Input Power | 24 VDC |
| Patient type: | Adult, paediatric |
| Inspiration time: | 0.2 to 10 s |
| Input Type: | Touchscreen |
| Power consumption | Typically approx. 125 W |
| Digital output | RS 232 C interface |
Related John Deere Monitor Series Part No. :
| John Deere Monitor | Description | Inventory status |
| John Deere GS2 1800 Display | 7" TFT color touch screen, RS232 (9-pin) connectors, RJ 45 Ethernet connectors | In Stock |
| John Deere GreenStar 2100 Display | 10.4" TFT LCD color touch screen, via two RS 232 C interfaces | Available |
| John Deere GreenStar 2600 Monitor | 10.4” TFT color touch screen, RJ 45 Ethernet & 2 external RS232 (9-pin)connectors, | In Stock |
| John Deere 2630 monitor | Deere 2630 monitor Display Touch Screen Panel Keypad | In Stock |
| John Deere 4200 Display | 8.4 TFT color touch screen, via an RS 232 C interface | Available |
| GreenStar 4240 Universal Display | 8.4 TFT colour touch screen, Valve response time T0…90 ≤ 5 ms | In Stock |
| John Deere 4640 Universal Display | TFT colour touch screen, Digital output and input via an RS 232 C interface | Contact |
| John Deere Display | Description | Inventory status |
John Deere GreenStar 2100 Monitor Manual Brochure PDF Download:
FAQ:
Question: How to use Screen Protector in John Deere PH41230101 Rev.B?
Answer: The use of a screen protector is recommended to prevent wear to the touchscreen surface. Screen protector kits, made specifically for GS2 displays, can be purchased through your local John Deere dealer.
Screen protector has been preinstalled on the touch panel of your display. Removing the protector reduces the sunlight readability of the display. Please see the instructions for replacement when necessary.
Question: How to get started with John Deere PH41230101 Rev.B?
Answer: The PH41230101 Rev.B is primarily used as an operator interface for guidance and documentation applications.
The primary navigational point of the display is the touchscreen which allows the operator to input information by touching the screen. The 4240 monitors can also use the display control which allows the use of input buttons and a thumb wheel.
GreenStar Basics SoftwareThe display comes standard with a basic software features:
- • Manual Guidance
- • Documentation (field and harvest)
- • OnScreen Mapping
- • Prescriptions
- • ISOBUS VT functionality
When connected to a GPS receiver, the system allows the operator to drive a vehicle with the aid of GPS. When combined with an optional AutoTrac activation, and vehicle steering kit, the system can automatically guide the machine through the field.
Documentation can be used to record data tied to GPS coordinates. On some machines, rates, yield, implement width, or other information is recorded from the vehicle CAN Bus. The displays can also be connected to certain third-party control units to record rate information. This data is collected on the compact flash card and can be unloaded into desktop software to produce maps and reports of field activities.
Question: What is the John Deere PH41230101 Rev.B touchscreen LCD Screen price?
Answer: Submit a fast quote, send VICPAS an email for best price.
