PH41208508-B-P0A1B-102B Touch Screen Panel Repair
- Model
- PH41208508-B-P0A1B-102B
Item specifics
- Brand
- John Deere
- Warranty
- 365 Days
- Product Line
- PH41208508-B-P0A1B-102B display
- Supply
- PH41208508-B-P0A1B-102B touchscreen
- Diagonal screen size
- touch screen panel repair
Review
Description

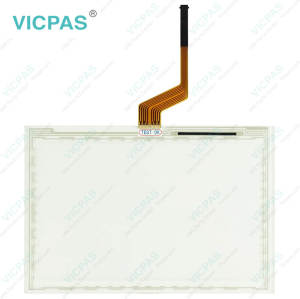

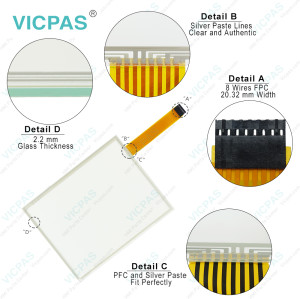

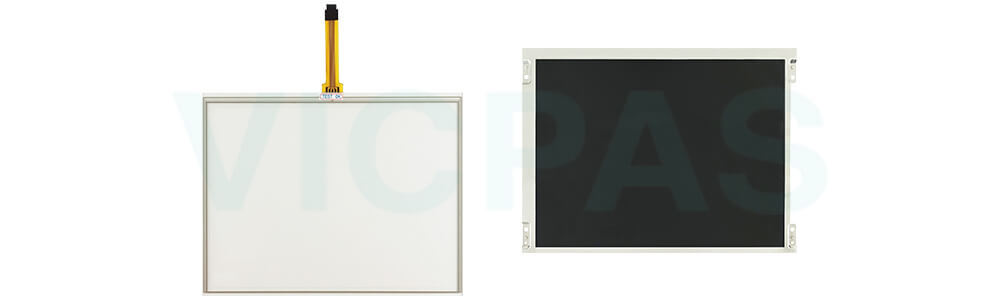

Supply John Deere PH41208508-B-P0A1B-102B Touchscreen Panel LCD Display for Repair Replacement
VICPAS supply touch screen panel and Lcd display for John Deere PH41208508-B-P0A1B-102B Monitor Display repair replacement, all of them are brand new with 365 days VICPAS warranty.
PH41208508-B-P0A1B-102B touch panel size: inch; other general size is 3.0'' to 22'' ; adopt to panel display device, the touchscreen warranty 365 days and fully test before shipment. PH41208508-B-P0A1B-102B touch membrane touch times are more than 1 million touches, touch panel temperature operating range: -10° C ~ 60° C. touch screen display Resistance 300Ω < X Axis <900Ω, 200Ω < Y Axis <800Ω (Varies with different size); hmi touchscreen power supply: USB or RS232. PH41208508-B-P0A1B-102B HMI touch glass operation system including : Linux / DOS / Windows ME/95/98 / NT4.0/XP/2000/Mac OS etc.
Specifications:
The table below describes the parameters/Specifications of the John Deere GreenStar 3 GS3 2630 Monitor Display Touchscreen Panel Glass LCD Display.
| Part Number : | PH41208508-B-P0A1B-102B |
| Product Line: | John Deere |
| Screen diagonal | 3‘’-22'' |
| Warranty: | 365 Days Warranty |
| Input Power | 24 VDC |
| Operating Temperature Range: | -20° to 70° C (-4° to 158° F) |
| Storage Temperature Range: | -40° to 85° C (-40° to 185° F) |
| Input Type: | Touchscreen |
| Format | Windows FAT or FAT32. |
| Connectivity | USB 2.0 |
FAQ:
Question:How to save The John Deere PH41208508-B-P0A1B-102B Display touchscreen setting and data?
Answer: Documentation data is saved continuously to permanent memory as it is recorded. Guidance lines are saved when the field setting is changed. Map data and some settings are saved only when the display is powered down or a data backup is performed.
Option 1. Turn the vehicle key switch to shut down vehicle and wait for the Status LED to turn black.
Option 2. Insert a USB and Backup data.
Answer: The display will turn on and off with the vehicle key switch.
Turn ON the display
1. Turn vehicle key switch directly to the Run position.
IMPORTANT: Do NOT allow the display to boot up with the key in Accessory Mode and then crank the engine.
NOTE: Implement controllers may take several minutes to load (if connected).
Turn OFF the display
1. Turn vehicle key switch to shut down vehicle and wait for the display to save settings.
IMPORTANT: Never pull the power plug without first turning off the vehicle key switch. Data loss could occur.
NOTE: The display requires a constant power source, so that it can save data and settings to permanent memory after the key is switched off. The Status LED is amber while the display saves data and settings.
Putting the Display in Standby
Use Standby mode only when the display is not being used for any operations. Standby mode will dim the display, mute tracking tones, suppress GPS alerts, and signal some implements to go into Standby mode.
Question:How to use Screen Protector in PH41208508-B-P0A1B-102B Display touchscreen?
Answer:The use of a screen protector is recommended to preventwear to the touchscreen surface. Screen protector kits,made specifically for PH41208508-B-P0A1B-102B displays, can be purchasedthrough your local John Deere dealer.
Screen protector has been preinstalled on the touch panel of your display. Removing protector reduces thesunlight readability of the display. Please see instructions for replacement when necessary.
Question: What is the John Deere PH41208508-B-P0A1B-102B Monitor touchscreen keypad price?
Answer: Submit a fast quote, send VICPAS an email for best price.
