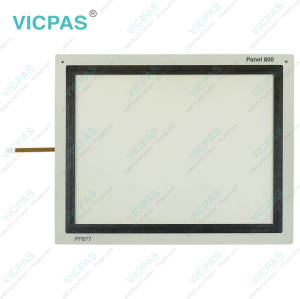

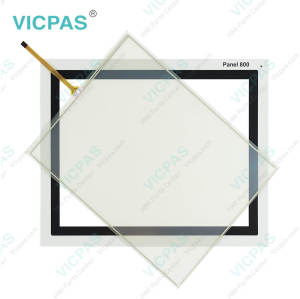

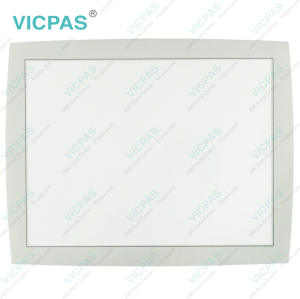

PP877K 3BSE069274R1 Touch Screen Membrane Keypad Repair
- Model
- PP877K 3BSE069274R1
Item specifics
- Warranty
- 365 Days
- Product Line
- HMI Panel 800
- Supply
- Membrane Switch and Resistive Touch Panel
- Shipping
- 2-3 workdays
- Size
- 10.4 inches
- Part Number
- PP877K 3BSE069274R1
Review
Description
HMI Panel 800 PP877K 3BSE069274R1 Membrane Keyboard Keypad Touch Membrane Replacement
PP877K 3BSE069274R1 Operator Keyboard Touchscreen Glass Panel 800 Feature:
Easy to use
A fully deployable PP877K 3BSE069274R1 Touch Digitizer Operator Panel Keypad HMI with comprehensive and integrated templates and libraries for every conceivable process. The Panel Builder tool, with familiar Microsoft® Windows® environment along with multiple language support results in remarkably quick, easy and efficient engineering.
Robust and reliable technology
PP877K 3BSE069274R1 Keyboard Membrane Touch Screen Monitor Panel 800 is constructed in a strong yet lightweight die-cast, powder-coated aluminum housing. IP65/IP66 front casing withstands wet, dusty and demanding environments. Operating temperatures ranging between -30℃ to 70℃ with maximum 95% humidity.
Truly open platform
Built on open architecture and technologies that accompany the .NET framework, these panels are capable of multi-brand controller connectivity. A multitude of connection options are available for local communication, expansion, remote access and more.
State-of-the-arts graphics
Vector-based, high-resolution graphics in TFL/LED display, with icon-based interface navigation and control.
Specifications:
The table below describes the parameters of the PP877K 3BSE069274R1 Keypad Membrane Touchscreen HMI Panel 800.
| Display Resolution: | 800 × 480 pixels |
| Display Type: | TFT LCD |
| Part Number: | PP877K 3BSE069274R1 |
| Size: | 10 inches |
| Warranty: | 365 Days |
| Active Area of Display: | 211.2 × 158.4 mm |
| Backlight Colors: | 64 k colors |
| Backlight Lifetime: | 50,000 hours |
| Touch Material: | Polyester on glass, resistive |
| Screen Brightness: | 450 cd/m2 |
Related HMI Panel 800 Terminals Part No. :
| HMI Panel 800 | Description | Inventory status |
| PP874 3BSE069271R2 | Panel 800 PP874 Front Overlay Touch Membrane | In Stock |
| PP874K 3BSE069273R1 | Panel 800 Series PP874K Membrane Keypad Replacement Repair | In Stock |
| PP874M 3BSE069279R1 | Panel 800 Series PP874M Touch Digitizer Glass Overlay Repair | Available Now |
| PP875 3BSE092977R1 | Panel 800 PP875 HMI Panel Glass Protective Film Replacement | Available Now |
| PP875H 3BSE092983R1 | Panel 800 Series PP875H Touch Screen Monitor Front Overlay | In Stock |
| PP875M 3BSE092982R1 | Panel 800 Series PP875M Front Overlay MMI Touch Screen | In Stock |
| PP877 3BSE069272R1 | Panel 800 Series PP877 HMI Touch Screen Protective Film | Available Now |
| PP877 3BSE069272R2 | Panel 800 Series PP877 Protective Film Touchscreen Repair | In Stock |
| PP877K 3BSE069274R1 | Panel 800 Series PP877K HMI Membrane Switch Touch Screen Glass | Available Now |
| PP880R 3BSE069295R1 | Panel 800 Series PP880R Front Overlay Touch Screen Panel Repair | In Stock |
| PP881 3BSE092978R1 | Panel 800 Series PP881 Touch Screen Protective Film Replacement | In Stock |
| PP882 3BSE069275R1 | Panel 800 Series PP882 Front Overlay Touch Digitizer Glass | Available Now |
| PP883 3BSE092979R1 | Panel 800 PP883 Protective Film HMI Panel Glass Replacement | In Stock |
| Panel 800 Repair | Description | Inventory status |
Panel 800 HMI Manuals PDF Download:
FAQ:
Question: What is the size of the PP877K 3BSE069274R1 Touch Screen Monitor and Switch Membrane?
Answer: The PP877K 3BSE069274R1 Membrane Keyboard Touch Membrane is 10-inch.
Question: Grounding the PP877K 3BSE069274R1 Terminal Keypad Touch Pad operator panel
Solution:
The mounting clamps of the operator panel do not provide a secure grounding connection between the panel and the device cabinet, see 1 in drawing above.
1. Connect a wire, that is sized correctly according to local electrical codes, between the quick-connect terminal connector on the operator panel and the chassis of the panel, see 2 in drawing above.
2. Connect a wire or grounding braid, that is sized correctly according to local electrical codes, between the chassis of the operator panel and the closest grounding point on the door, see 3 in drawing above.
3. Connect a strong but short grounding braid between the door and the device cabinet, see 4 in drawing above.
4. Twist the cables onto the 24 V DC feed, see 5 in drawing above.
2 turns around the ferrite core provide 4 times the suppression of 1 turn.
3 turns around the ferrite core provide 9 times the suppression of 1 turn.
A ferrite core suppresses disturbances to the 24 V feed, see 6 in drawing above.
The grounding wires should be short and the conductor should have a large area.
A long, thin grounding wire has a very high impedance (resistance) at high frequencies and does not guide disturbances to the ground.
Multi-wire conductors are better than single wire conductors with the same area.
A braided conductor wire with the same area is even better. The best is a short, thick grounding braid.
