PP875 3BSE092977R1 Screen Glass Front Overlay Repair
- Model
- PP875 3BSE092977R1
Item specifics
- Warranty
- 365 Days
- Product Line
- HMI Panel 800
- Types
- Touch Digitizer Glass and Protective Film
- Shipping
- 2-3 workdays
- Size
- 7 inches
Review
Description

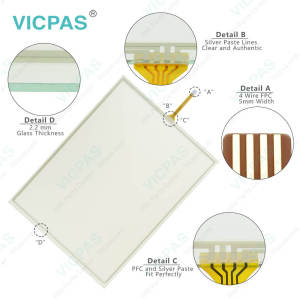

HMI Panel 800 PP875 3BSE092977R1 Touch Screen Monitor Front Overlay Repair Replacement
Order each part separately is available
The Features and benefits of the PP875 3BSE092977R1 operator terminal:
• Easy to use. A fully deployable HMI with comprehensive and integrated templates and libraries for every conceivable process. The Panel Builder tool, with familiar Microsoft® Windows® environment along with multiple language support results in quick, easy and efficient engineering.
• State-of-the-arts graphics. Vector-based, high-resolution graphics in TFL/LED display, with icon-based interface, navigation and control.
• Robust and reliable. Panel 800 is constructed in a strong yet lightweight diecast, powder-coated aluminum housing. Front casing withstands wet, dusty and demanding environments. Operating temperatures ranging between -10° C to + 60° C with maximum 85% humidity.
• Truly open platform. Built on open architecture and technologies that accompany the .NET framework, these panels are capable of multi-brand controller connectivity. A multitude of connection options are available for local communication, expansion, remote access and more.
• Try your application before you use it. Nice possibility to simulate and run the application directly from the Panel Builder 800 before you use it.
VICPAS supply HMI Panel 800 PP875 3BSE092977R1 Resistive Touch Screen and Protective Film with 365 Days warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the PP875 3BSE092977R1 HMI Panel 800.
| Part Number: | PP875 3BSE092977R1 |
| Interaction type: | Resistive touch |
| Active Area Of Display: | 152.4 x 91.4 mm |
| Operating Temperature: | -10 … +60 °C |
| Storage Temperature: | -20 … +70 °C |
| Size: | 7 inches |
| Relative Humidity: | 5 - 85 % non-condensed |
| Display Resolution: | 800 × 480 pixels |
| Display Type: | TFT-LCD |
| Warranty: | 365 Days |
Related HMI Panel 800 Terminals Part No. :
| HMI Panel 800 | Description | Inventory status |
| PP885 3BSE069276R1 | Panel 800 PP885 Front Overlay Touch Membrane | In Stock |
| PP885A 3BSE042238R2 | Panel 800 Series PP885A Touch Glass Front Overlay Repair | In Stock |
| PP885H 3BSE069281R1 | Panel 800 Series PP885H Touch Digitizer Glass Overlay Repair | Available Now |
| PP885M 3BSE069280R1 | Panel 800 PP885M HMI Panel Glass Protective Film | Available Now |
| PP885R 3BSE069296R1 | Panel 800 Series PP885R Touch Screen Monitor Front Overlay | In Stock |
| PP886 3BSE092980R1 | Panel 800 Series PP886 Front Overlay MMI Touch Screen Replacement | In Stock |
| PP886H 3BSE069297R1 | Panel 800 Series PP886H HMI Touch Screen Protective Film | Available Now |
| PP886M 3BSE092984R1 | Panel 800 Series PP886M Protective Film Touchscreen Repair | In Stock |
| PP886R 3BSE092985R12 | Panel 800 Series PP886R HMI Protective Film Touch Screen Glass | Available Now |
| PP887H 3BSE092986R1 | Panel 800 Series PP887H Front Overlay Touch Screen Panel Repair | In Stock |
| PP887S 3BSE092987R1 | Panel 800 Series PP887S Touch Screen Protective Film Replacement | In Stock |
| PP893 3BSE069277R1 | Panel 800 Series PP893 Touch Screen Monitor Front Overlay Replacement | In Stock |
| PP895 3BSE092981R1 | Panel 800 Series PP895 Front Overlay Touch Digitizer Glass | Available Now |
| PP896 3BSE069278R1 | Panel 800 PP896 Protective Film HMI Panel Glass Replacement | In Stock |
| Panel 800 Repair | Description | Inventory status |
Panel 800 HMI Manuals PDF Download:
FAQ:
Question: How to install an internal Compact Flash card in the PP875 3BSE092977R1 operator panel?
Answer:
1. Turn off the power to the panel.
2. Remove the back cover on the operator panel, using a torx screwdriver (T10*50).
3. Flip the back cover; the CPU board is mounted inside the back cover.
4. Insert the Compact Flash memory card in its slot on the CPU board.
5. Re-attach the back cover to the operator panel.
6. Turn on the power to the operator panel.
7. When the operator panel starts up, you will be asked if you like to move the files to the internal card; select YES to this question.
Question: What is the price of PP875 3BSE092977R1 Resistive Touch Screen and Front Overlay?
Answer: Submit a fast quote, send VICPAS an email for best price.
Question: What is the size of the PP875 3BSE092977R1 Touch Digitizer Glass and Protective Film?
Answer: The PP875 3BSE092977R1 Touch Screen Film is 7-inch.
