Model
0005-4050-408

Item specifics

Brand
Siemens
Warranty
365 Days
Product Line
Siemens C7 series
Width
257.5mm
Height
229mm
Supply
Siemens C7 series Touchscreen Membrane Keyboard Plastic Shell
model
0005-4050-408

Review

Description

0005-4050-408 SIPLUS C7-635 Key GEA for medial exposure based on 6ES7635-2SB02-0AC0

Order each part separately is available

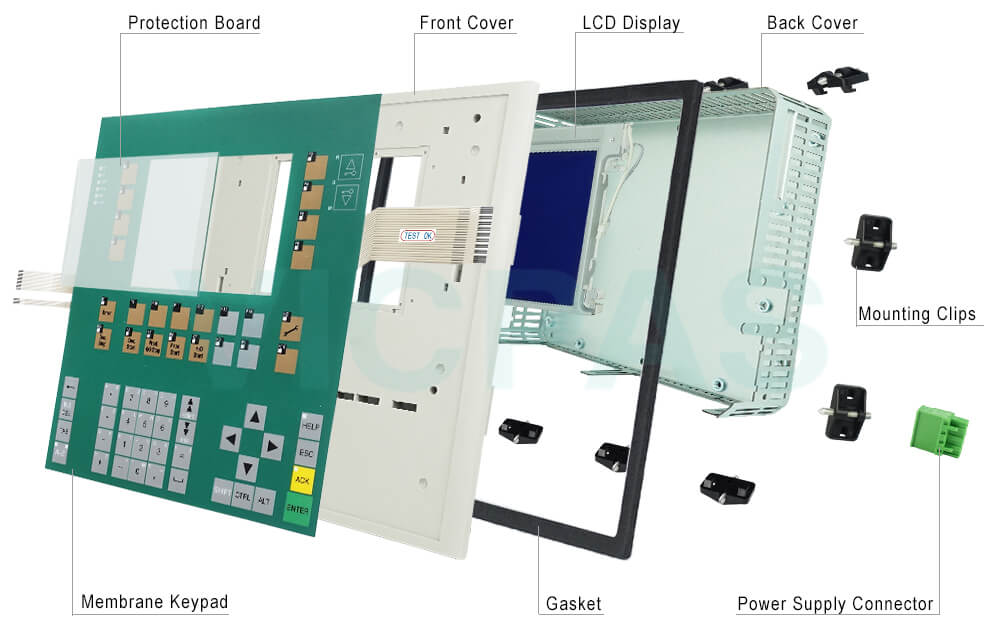

0005-4050-408 Siemens SIMATIC HMI C7-635 Touchscreen, Membrane Keyboard, Plastic Shell, LCD Display Screen, Mounting Clips, Gasket and Power Supply Connector Repair Replacement

The individual components integrated in the SIMATIC C7-635 0005-4050-408 Membrane Keypad Keyboard correspond to the components that can also be used for modular configurations consisting of CPU-314C-2DP, TP170 B, and OP170 B. The basic mode of operation is also similar to the operation of a configuration with standard modules from the programmable controller and TP/OP family; the individual components function independently, and each processor has its own dedicated memory. The C7-CPU and the C7-TP/OP communicate internally over the MPI interface. The C7-CPU is independent of the C7-TP/OP. The C7-TP/OP continues to run, for example, if the C7-CPU enters the STOP mode.

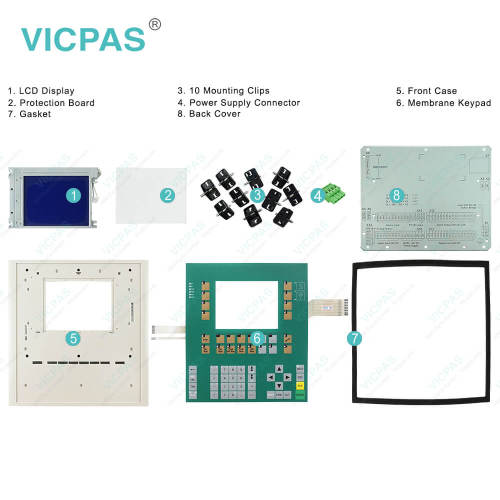

VICPAS supply 0005-4050-408 Siemens C7 635 membrane switch, plastic case cover body, LCD Screen, Gasket, Mounting Clips and Power Supply Connector and optical glass with 365 days warranty and support Urgent Worldwide Shipping.





Specifications:

The table below describes the parameters of the 0005-4050-408 Siemens c7-635 HMI Parts.

Part Number : 0005-4050-408
Firmware version: V2.0.12
Programming: STEP 7 V5.2 + SP1
Warranty: 6-Months Warranty
Product Line: Siemens c7-635
Rated value (DC): 24 V
Number of digital outputs: 16
Design as touch screen: YES
Keyboard fonts: US English
Interface type: Integrated RS 485 interface


Related Siemens Simatic C7-635 Part No. :

Siemens C7-635 Description Inventory status
6ES7635-2SB00-0AC0 GEA C7-635 Siemens Available Now
6ES7635-2SB01-0AC0 SIMATIC C7-635 GEA In Stock
6ES7635-2SB02-0AC0 SIMATIC C7-635 GEA In Stock
0005-4050-400 SIPLUS GEA C7-635 In Stock
0005-4050-408 SIMATIC GEA C7-635 In Stock
0005-4050-608 SIPLUS GEA C7-635 Available Now
0005-4050-630 SIPLUS C7-635 GEA In Stock
SIMATIC C7 635 Description Inventory status

Siemens C7 635 series HMI Manuals PDF Download:

  • 6AG1635-2SB02-4AC0 SIMATIC HMI c7 635 datasheet pdf
  • Siemens Simatic c7-635 series HMI operator panel keypad manual


  • FAQ:

    Question: When installing a C7-635 0005-4050-408 Keyboard Membrane Plastic Shell Terminal, what should we pay attention to?

    Answer:
    • The sheet thickness of a control cabinet door can be 2 to 4 mm. You must ensure that the gasket seals tightly around the entire device.
    • A distance of at least 50 mm and 70 mm respectively must be maintained on the sides of the C7-635 for outgoing cables and to allow for air circulation, as is shown in Figure 3-9.
    • Make sure the gasket is correctly seated on the front panel.
    • The C7-635 must be protected from direct exposure to sunlight (the device should not be operated outside of enclosed areas).
    When installing a C7-635 0005-4050-408 Keyboard Membrane Plastic Shell Terminal, what should we pay attention to?


    Question: What is the 6AG1 635-2SB02-4AC0 Siemens C7-635 mebrane switch and shell HMI parts price?

    Answer: Submit a fast quote, send VICPAS an email for best price.
