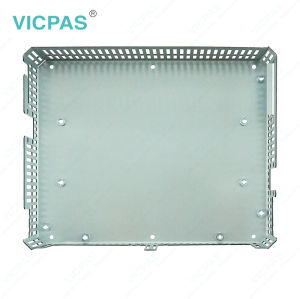

6ES7635-2SB02-0AC0 GEA Membrane Keypad Front Case
6ES7635-2SB02-0AC0 GEA Membrane Keypad Front Case
6ES7635-2SB02-0AC0 GEA Membrane Keypad Front Case
6ES7635-2SB02-0AC0 GEA Membrane Keypad Front Case
6ES7635-2SB02-0AC0 GEA Membrane Keypad Front Case
6ES7635-2SB02-0AC0 GEA Membrane Keypad Front Case
Model
6ES7 635-2SB02-0AC0

Item specifics

Brand
Siemens
Warranty
365 Days
Product Line
Siemens C7 series
Width
257.5mm
Height
229mm
Supply
Siemens C7 series Touchscreen Membrane Keyboard Plastic Shell
model
6ES7635-2SB02-0AC0

Review

Description

6ES7635-2SB02-0AC0 Siemens SIMATIC GEA C7-635 Membrane Keyboard Keypad, Protection Board, HMI Case, LCD Display, Gasket, Mounting Clips and Power Supply Connector Repair

Order each part separately is available

6ES7635-2SB02-0AC0 Siemens SIMATIC HMI C7-635 Touchscreen, Membrane Keyboard, Plastic Shell, LCD Display Panel, Mounting Clips, Gasket and Power Supply Connector Repair Replacement

6ES7 635-2SB02-0AC0 SIPLUS C7-635 GEA LOADING DUE TO POLLUTANT GAS BASED ON 6ES7635-2SB00-0AC0


The SIMATIC C7-635 consists of the following components::
• SIMATIC S7 314C-2 DP CPU
• SIMATIC touch panel TP170 B or operator panel OP170 B

The 6ES7635-2SB02-0AC0 touch panel and the operator panel of the C7-635 are based on the standardWindows CE operating system. You can visually display operating modes, current process values, and faults. You can also make entries on the C7-635. Simple machine diagnostic functions are also possible.

You can also incorporate your own graphics, digital pictures, and scanned images into your project. Moreover, you can represent elements such as temperature variations graphically using bar graphs and diagrams.


VICPAS supply 6ES7635-2SB02-0AC0 Siemens GEA C7 635 membrane switch, optical glass, LCD Display Screen, Mounting Clips, Gasket and Power Supply Connector and front case with 365 days warranty and support Urgent Worldwide Shipping.





Specifications:

The table below describes the parameters of the 6ES7635-2SB02-0AC0 Siemens c7-635 HMI Parts.

Part Number : 6ES7 635-2SB02-0AC0
Firmware version: V2.0.12
Programming: STEP 7 V5.2 + SP1
Warranty: 6-Months Warranty
Product Line: Siemens c7-635
Rated value (DC): 24 V
Number of digital outputs: 16
Design as touch screen: YES
Keyboard fonts: US English
Interface type: Integrated RS 485 interface


Related Siemens Simatic C7-635 Part No. :

Siemens C7-635 Description Inventory status
6ES7635-2SB00-0AC0 GEA C7-635 Siemens Available Now
6ES7635-2SB01-0AC0 SIMATIC C7-635 GEA In Stock
6ES7635-2SB02-0AC0 SIMATIC C7-635 GEA In Stock
0005-4050-400 SIPLUS GEA C7-635 In Stock
0005-4050-408 SIMATIC GEA C7-635 In Stock
0005-4050-608 SIPLUS GEA C7-635 Available Now
0005-4050-630 SIPLUS C7-635 GEA In Stock
SIMATIC C7 635 Description Inventory status

Siemens C7 635 series HMI Manuals PDF Download:

  • 6ES7 635-2SB02-0AC0 SIMATIC HMI c7 635 datasheet pdf
  • Siemens Simatic c7-635 series HMI operator panel keypad manual


  • FAQ:

    Question: How to install 6ES7 635-2SB02-0AC0 Simatic c7-635 ?

    Answer:1.C7-635 Touch:Make a cutout in the control cabinet door(dimensions 231+1.0 x 183+1.0 mm).
    C7-635 Key:Make a cutout in the control cabinet door(dimensions 231+1.0 x 257+1.0 mm).
    2.Ensure that no Compact Flash Card (CF Card) is inserted into the C7-635.The CF Card protrudes from the C7-635 and could be damaged when thedevice is installed.
    3.Place the C7-635 in the prepared cutout in the control cabinet door. Ensurethat the gasket is applied evenly to the metal plate.
    4.Guide the fastening hooks of the provided mounting supports (for theC7-635 Touch, 8 mounting supports; for the C7-635 Key, 10 mountingsupports) into the intended recesses in the C7-635 housing. Figure 3-2provides an example of the mechanical fastening of the C7-635 Touch.
    5.Using a screwdriver, tighten the C7-635 evenly and crosswise from behindin the control cabinet door until the front panel of the C7-635 rests on thecontrol cabinet door. Situate the device so that there is even spacing onall sides between the housing and the cutout section


    Question: What should we know when programing?

    Answer:You program the C7-635 Touch with STEP 7 as of V 5.2 + Service Pack 1 +Hardware Update C7-635 Touch V2.0.
    You program the C7-635 Key with STEP 7 as of V 5.2 + Service Pack 1 +Hardware Update C7-635 Key V2.0.


    Question: What is the 6ES7 635-2SB02-0AC0 Siemens C7-635 mebrane switch and shell HMI parts price?

    Answer: Submit a fast quote, send VICPAS an email for best price.



    Common misspellings:

    ES7635-2SB02-0AC0
    6S7635-2SB02-0AC0
    6E7635-2SB02-0AC0
    6ES635-2SB02-0AC0
    6ES735-2SB02-0AC0
    6ES765-2SB02-0AC0
    6ES763-2SB02-0AC0
