B&R PP65 4PP065.0351-K01 Keypad Touchscreen Repair
- Model
- 4PP065.0351-K01
Item specifics
- Brand
- B&R
- Size
- 3.5 inch
- Warranty
- 1 Year VICPAS Warranty
- Model
- B&R Power Panel 65 4PP065.0351-K01
- Shipping
- DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX
Review
Description

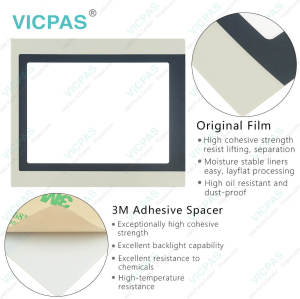

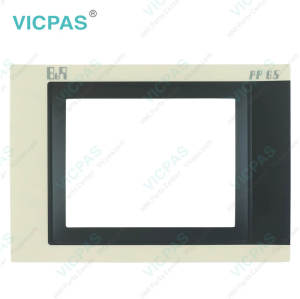

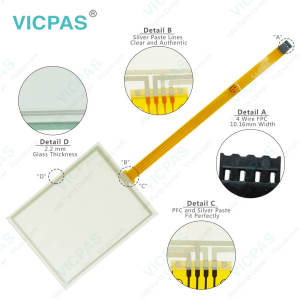

B&R Power Panel 65 4PP065.0351-K01 Membrane Keypad Touch Panel Repair Replacement
B&R PP65 4PP065.0351-K01 touch screen devices are equipped with a touch controller that supports hardware calibration. This means that devices are pre-calibrated when delivered. This feature is a particularly helpful advantage for replacement parts because recalibration is usually no longer necessary when replacing the device (identical model/type). Nevertheless, calibrating the device is still recommended in order to achieve the best results and to better adapt the touch screen to the user's preferences.
The PP65 4PP065.0351-K01 is equipped with a powerful Geode LX800 processor with 500 MHz clock frequency. With this computing power, the PP65 provides performance that was previously only achieved by the PP400. The PP65 is therefore especially suitable for multi-axis applications that require lots of computing power but only have limited space in the control cabinet. The compact dimensions of the PP45 have been taken over in this case.
The Power Panel 65 4PP065.0351-K01 is an especially compact addition to the proven Power Panel product family. Modular fieldbus interfaces ensure flexible integration in all configurations.
Ethernet, POWERLINK and X2X Link are used for the communication system. Additionally, these devices have been equipped with a slot for interface modules. Depending on requirements, the Power Panel 65 can be expanded with CAN bus, a PROFIBUS DP slave or an RS485/RS232 interface, making it perfectly suited for demanding tasks. Customized panel overlay designs are also available.
• Cost-effective complete solution
• Compact dimensions
• Integrates controller, visualization and I/O interface
Specifications:
The table below describes the parameters of the 4PP065.0351-K01 Power Panel 65 Touchscreen Panel Membrane Keypad.
| Part Number : | 4PP065.0351-K01 |
| Product Line: | Power Panel 65 |
| Screen diagonal | 3.5 in |
| Warranty: | 365 Days Warranty |
| Input Power | 24 VDC |
| Display Type: | TFT color |
| Mounting position: | vertical |
| Input Type: | Touchscreen/Keypad |
| Function keys: | 14 (with slide-in labels) |
| Storage | -20 to 70°C |
Related Power Panel 65 Series Part No. :
| Power Panel 65 | Description | Inventory status |
| 4PP065-0351-P74 | Power Panel 65 Membrane Keypad Keyboard Touch Screen Replacement | In Stock |
| 4PP065-0351-X74 | B&R PP65 Membrane Keypad Touchscreen Panel Replacement | Available Now |
| 4PP065-0351-K01 | B and R Power Panel 65 Touch Screen Panel Keyboard Membrane | Available Now |
| 4PP065-0571-K01 | Power Panel 65 B&R Touch Panel Protective Film Repair Kit | In Stock |
| 4PP065-0571-P74 | Power Panel 65 B and R Protective Film Touchscreen Glass | In Stock |
| 4PP065-0571-X74 | B and R PP65 HMI Touch Screen Panel Front Overlay Replacement | Available Now |
| 4PP065-0571-P4 | Power Panel 65 Touch Screen Panel Protective Film Replacement Kit | In Stock |
| 4PP065-0571-K28 | B and R Power Panel 65 Touchscreen Membrane Front Overlay Repair Kit | Available Now |
| 4PP065-0571-K58 | Power Panel 65 B and R Touch Screen Protective Film Replacement | In Stock |
| 4PP065-0571-K02 | B and R Power Panel 65 Touch Screen Panel Glass Replacement | Available Now |
| 4PP065-0571-K03 | B and R Power Panel 65 Touch Membrane Repair Replacement | Available Now |
| 4PP065-0571-K04 | Power Panel 65 B&R Touch Screen Panel Replacement Repair | Available Now |
| B&R PP65 HMI | Description | Inventory status |
B&R Power Panel 65 Manuals PDF Download:
FAQ:
Question:How to removing the Power Panel 65 4PP065.0351-K01 CompactFlash card?
Answer:
Rotate the orange CompactFlash safety latch away from the CompactFlash slot (1). Then press the CompactFlash ejection lever (2) with a screwdriver until the CompactFlash card is ejected. The CompactFlash card can now be removed by hand (3).
Question: How to install the B and R PP65 4PP065.0351-K01 interface modules?
Answer:
1) Remove the screws from the cover.
2) Remove the cover.
3) Insert the interface module into the PP65.
4) Apply light pressure until the interface module is inserted all the way.
5) Secure the interface module with the screws (max. 0.6 Nm).
Question:How can B and R Power Panel 65 4PP065.0351-K01 screen burn-in be avoided?
Answer:
There is no perfect solution. There are ways to significantly reduce this effect, however:
• Avoid static images or screen content.
• Use screensavers (animated) if the display is not in use.
• Frequent picture change
• Turn off the display when not in use.
Turning off the backlight does not help prevent screen burn-in.
