Touchscreen panel for 4PP065.0571-X74 touch screen membrane touch sensor glass replacement repair
Touchscreen panel for 4PP065.0571-X74 touch screen membrane touch sensor glass replacement repair
Touchscreen panel for 4PP065.0571-X74 touch screen membrane touch sensor glass replacement repair
Touchscreen panel for 4PP065.0571-X74 touch screen membrane touch sensor glass replacement repair
Touchscreen panel for 4PP065.0571-X74 touch screen membrane touch sensor glass replacement repair
Touchscreen panel for 4PP065.0571-X74 touch screen membrane touch sensor glass replacement repair
Model
4PP065.0571-X74

Item specifics

Brand
B&R
Size
5.7 inch
Warranty
1 Year VICPAS Warranty
Model
B&R Power Panel 65 4PP065.0571-X74
Shipping
DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX

Review

Description

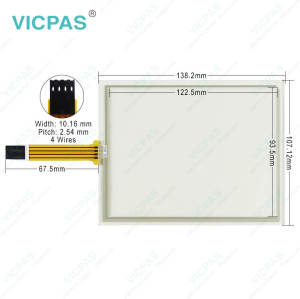

B&R Power Panel 65 4PP065.0571-X74 Protective Film Touch Screen Glass Repair Replacement

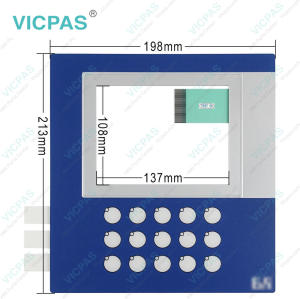

Power Panel 65 4PP065.0571-X74 Touch Screen Panel Front Overlay

The PP65 4PP065.0571-X74 is both a controller and an operator panel. Any necessary peripherals can be connected using the integrated X2X interface. Using the optional interface modules, it is also possible to connect other B&R products or even to integrate the PP65 into control systems from other manufacturers. All components are situated in a compact housing with a 3.5" or 5.7" QVGA TFT display.


4PP065.0571-X74 Equipped with 2 USB interfaces and a Fast Ethernet port for exchanging data with higher level systems, the PP65 4PP065.0571-X74 is also available with integrated X2X or POWERLINK interface options for connecting remote I/O modules and drives. These systems can be further extended with RS232/RS485, CAN and PROFIBUS DP slave interfaces to meet any requirement.


VICPAS supply B and R Power Panel 65 4PP065.0571-X74 HMI part to replace, make the HMI running. We provide a 1-year warranty of the most product, which include most of touch screen panel, front overlay and display.



  Contact Best Price


Specifications:

The table below describes the parameters of the 4PP065.0571-X74 Power Panel 65 Touchscreen Panel Protective Film.

Part Number : 4PP065.0571-X74
Product Line:Power Panel 65
Screen diagonal5.7 in
Warranty: 365 Days Warranty
Input Power24 VDC
Display Type:TFT color
Mounting position: vertical
Input Type: Touchscreen
Remanent Variables:32 kB
Storage -20 to 70°C


Related Power Panel 65 Series Part No. :

Power Panel 65 Description Inventory status
4PP065-0351-P74 Power Panel 65 Membrane Keypad Keyboard Touch Screen Replacement In Stock
4PP065-0351-X74 B&R PP65 Membrane Keypad Touchscreen Panel Replacement Available Now
4PP065-0351-K01 B and R Power Panel 65 Touch Screen Panel Keyboard Membrane Available Now
4PP065-0571-K01 Power Panel 65 B&R Touch Panel Protective Film Repair Kit In Stock
4PP065-0571-P74 Power Panel 65 B and R Protective Film Touchscreen Glass In Stock
4PP065-0571-X74 B and R PP65 HMI Touch Screen Panel Front Overlay Replacement Available Now
4PP065-0571-P4 Power Panel 65 Touch Screen Panel Protective Film Replacement Kit In Stock
4PP065-0571-K28 B and R Power Panel 65 Touchscreen Membrane Front Overlay Repair Kit Available Now
4PP065-0571-K58 Power Panel 65 B and R Touch Screen Protective Film Replacement In Stock
4PP065-0571-K02 B and R Power Panel 65 Touch Screen Panel Glass Replacement Available Now
4PP065-0571-K03 B and R Power Panel 65 Touch Membrane Repair Replacement Available Now
4PP065-0571-K04 Power Panel 65 B&R Touch Screen Panel Replacement Repair Available Now
B&R PP65 HMI Description Inventory status

B&R Power Panel 65 Manuals PDF Download:

  • B and R PP65 4PP065.0571-X74 Data Sheet
  • B&R Power Panel 65 4PP065.0571-X74 User's Manual

  • FAQ:

    Question:What is the procedure for replacing the B&R Power Panel 65 4PP065.0571-X74 battery?

    Answer:
    • Disconnect the power supply to the Power Panel.
    • Touch the housing or ground connection in order to discharge any electrostatic charge from your body.
    • Remove the battery cover from the top of the Power Panel device using a screwdriver (1).
    What is the procedure for replacing the B&R Power Panel 65 4PP065.0571-X74 battery?
    • Carefully remove the used battery from its fitting by pulling the removal strip (2).
    What is the procedure for replacing the B&R Power Panel 65 4PP065.0571-X74 battery?
    • In order to prevent a short circuit, do not touch the new battery with pliers or uninsulated tweezers. The battery should not be held by its edges.
    What is the procedure for replacing the B&R Power Panel 65 4PP065.0571-X74 battery?
    • Insert the new battery with the correct polarity. To make the next battery change easier, be sure the removal strip is in place when inserting the battery.
    • Replace the battery cover.
    • Reconnect the power supply to the Power Panel.
    • Reset the date and time (using B&R Automation Studio).
    What is the procedure for replacing the B&R Power Panel 65 4PP065.0571-X74 battery?


    Question:How to clean B&R Power Panel 4PP065.0571-X74 devices?

    Answer:
    How to clean B&R Power Panel 4PP065.0571-X74 devices?
    Power Panel devices should be cleaned with a moist cloth. The cloth should be moistened with water and detergent, a screen cleaning agent or alcohol (ethanol). The cleaning agent should be applied to the cloth beforehand, not sprayed directly on the Power Panel! Never use aggressive solvents, chemicals, scouring agents, pressurized air or steam-jet air ejectors.
    How to clean B&R Power Panel 4PP065.0571-X74 devices?


    Question: What is the 4PP065.0571-X74 B&R PP65 touch screen panel price?

    Answer: Submit a fast quote, send VICPAS an email for best price.
