Model
4PP065.0571-K01

Item specifics

Brand
B&R
Size
5.7 inch
Warranty
1 Year VICPAS Warranty
Model
B&R Power Panel 65 4PP065.0571-K01
Shipping
DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX

Review

Description

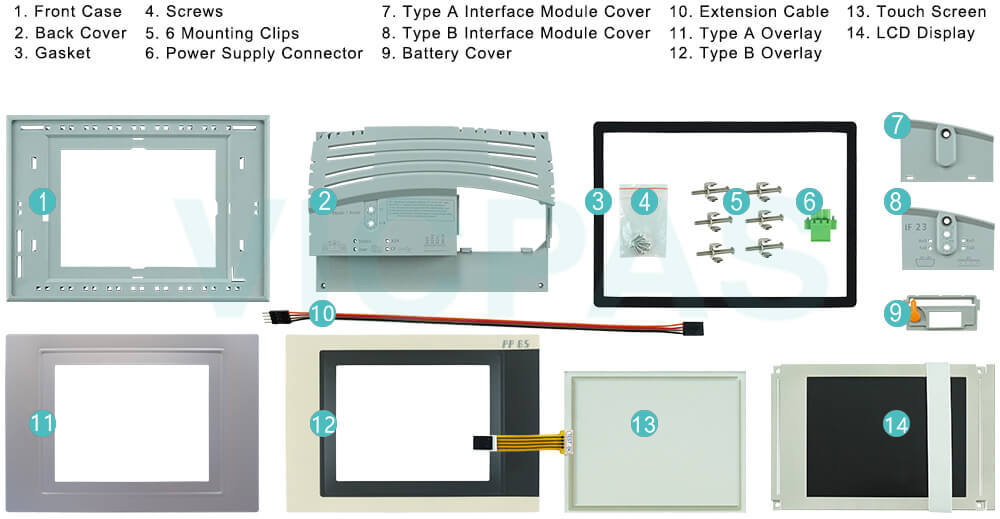

B&R Power Panel 65 4PP065.0571-K01 Front Overlay Touch Screen Glass Repair Replacement

Power Panel 65 4PP065.0571-K01 Touch Screen Panel Protective Film

B&R 4PP065.0571-K01 touch screen devices are equipped with a touch controller that supports hardware calibration. This means that devices are pre-calibrated when delivered. This feature is a particularly helpful advantage for replacement parts because recalibration is usually no longer necessary when replacing the device (identical model/type). Nevertheless, calibrating the device is still recommended in order to achieve the best results and to better adapt the touch screen to the user's preferences.


Depending on the installed interfaces (Ethernet, X2X, USB), Power Panel 65 4PP065.0571-K01 devices also provide an extra slot for interface modules. Depending on requirements, the Power Panel 65 can be expanded with CAN bus, a PROFIBUS DP slave or an RS485/RS232 interface, making it perfectly suited for demanding tasks.


The PP65 4PP065.0571-K01 is both a controller and an operator panel. Any necessary peripherals can be connected using the integrated X2X interface. Using the optional interface modules, it is also possible to connect other B&R products or even to integrate the PP65 into control systems from other manufacturers. All components are situated in a compact housing with a 3.5" or 5.7" QVGA TFT display.



  Contact Best Price


Specifications:

The table below describes the parameters of the 4PP065.0571-K01 Power Panel 65 Touchscreen Panel Front Overlay.

Part Number : 4PP065.0571-K01
Product Line:Power Panel 65
Screen diagonal5.7 in
Warranty: 365 Days Warranty
Input Power24 VDC
Display Type:TFT color
Mounting position: vertical
Input Type: Touchscreen
Remanent Variables:32 kB
Storage -20 to 70°C


Related Power Panel 65 Series Part No. :

Power Panel 65 Description Inventory status
4PP065-0351-P74 Power Panel 65 Membrane Keypad Keyboard Touch Screen Replacement In Stock
4PP065-0351-X74 B&R PP65 Membrane Keypad Touchscreen Panel Replacement Available Now
4PP065-0351-K01 B and R Power Panel 65 Touch Screen Panel Keyboard Membrane Available Now
4PP065-0571-K01 Power Panel 65 B&R Touch Panel Protective Film Repair Kit In Stock
4PP065-0571-P74 Power Panel 65 B and R Protective Film Touchscreen Glass In Stock
4PP065-0571-X74 B and R PP65 HMI Touch Screen Panel Front Overlay Replacement Available Now
4PP065-0571-P4 Power Panel 65 Touch Screen Panel Protective Film Replacement Kit In Stock
4PP065-0571-K28 B and R Power Panel 65 Touchscreen Membrane Front Overlay Repair Kit Available Now
4PP065-0571-K58 Power Panel 65 B and R Touch Screen Protective Film Replacement In Stock
4PP065-0571-K02 B and R Power Panel 65 Touch Screen Panel Glass Replacement Available Now
4PP065-0571-K03 B and R Power Panel 65 Touch Membrane Repair Replacement Available Now
4PP065-0571-K04 Power Panel 65 B&R Touch Screen Panel Replacement Repair Available Now
B&R PP65 HMI Description Inventory status

B&R Power Panel 65 Manuals PDF Download:

  • B&R Power Panel 65 User's Manual

  • FAQ:

    Question:How can Power Panel 65 4PP065.0571-K01 screen burn-in be avoided?

    Answer:
    There is no perfect solution. There are ways to significantly reduce this effect, however:
    • Avoid static images or screen content.
    • Use screensavers (animated) if the display is not in use.
    • Frequent picture change
    • Turn off the display when not in use.
    Turning off the backlight does not help prevent screen burn-in.


    Question:How to inserting the PP65 4PP065.0571-K01 CompactFlash card?

    Answer:
    How to inserting the PP65 4PP065.0571-K01 CompactFlash card?
    How to inserting the PP65 4PP065.0571-K01 CompactFlash card?
    How to inserting the PP65 4PP065.0571-K01 CompactFlash card?
    Insert the CompactFlash card by hand (contact side first) into the CompactFlash slot until it is flush with the front of the device (1). This will push the ejection lever out to the same level (2). The CompactFlash slot is mechanically designed to prevent the card from being inserted incorrectly. If inserted incorrectly, the CompactFlash card will not go in all the way and the ejection lever will not extend out. Finally, rotate the safety latch over the CompactFlash slot (3) to secure the CompactFlash card (4).


    Question:How to clean B&R Power Panel 65 4PP065.0571-K01 devices?

    Answer:
    How to clean B&R Power Panel 4PP065.0571-K01 devices?
    Power Panel devices should be cleaned with a moist cloth. The cloth should be moistened with water and detergent, a screen cleaning agent or alcohol (ethanol). The cleaning agent should be applied to the cloth beforehand, not sprayed directly on the Power Panel! Never use aggressive solvents, chemicals, scouring agents, pressurized air or steam-jet air ejectors.
    How to clean B&R Power Panel 4PP065.0571-K01 devices?
