6AV6545-0AH10-0AX1 Siemens MP270 Touchscreen Panel Film
6AV6545-0AH10-0AX1 Siemens MP270 Touchscreen Panel Film
6AV6545-0AH10-0AX1 Siemens MP270 Touchscreen Panel Film
6AV6545-0AH10-0AX1 Siemens MP270 Touchscreen Panel Film
6AV6545-0AH10-0AX1 Siemens MP270 Touchscreen Panel Film
6AV6545-0AH10-0AX1 Siemens MP270 Touchscreen Panel Film
Model
6AV6545-0AH10-0AX1

Item specifics

Warranty
365 Days
Brand
Siemens
Product Line
MP270
Supply
Siemens MP270 HMI Touch Panel LCD Display
Size
5.7 inch
model
6AV6545-0AH10-0AX1

Review

Description

6AV6545-0AH10-0AX1 Siemens HMI MP270 Touchscreen Panel Glass and Overlay Repair Replacement

Order each part separately is available

6AV6545-0AH10-0AX1 Siemens HMI MP270 Plastic Shell Housing Repair Replacement
6AV6545-0AH10-0AX1 Siemens HMI MP270 Protective Film, Lcd display and Touchscreen Panel Glass Repair Replacement


6AV6545-0AH10-0AX1 SIMATIC MP270B 6" TOUCH MULTI PANEL5.7" TFT DISPLAY 4 MB CONFIGURING MEMORY,CONFIGURABLE WITH WINCC FLEXIBLE STANDARD V1.0 ORHIGHER


The MP270 enables operating statuses, current process values and errorsconcerning a connected PLC to be graphically displayed and the relevant machineor system to be easily monitored and operated. Display and operation of theMP270 can be adapted optimally for the respective process requirements by usingthe ProTool CS configuration software and, for example, extended by user-definedfunctions with the user’s own scripts.

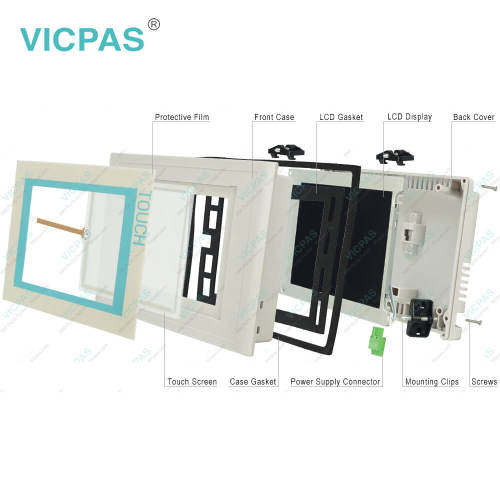

VICPAS supply 6AV6545-0AH10-0AX1 Siemens MP270 6" touch panel, front overlay, LCD display and Plastic Shell Housing. All of them with VICPAS 365 days warranty and support Urgent Worldwide Shipping.






Specifications:

The table below describes the parameters of the 6AV6545-0AH10-0AX1 Siemens MP270 HMI Parts.

Part Number : 6AV6545-0AH10-0AX1
Screen diagonal: 5.7 in
Design of display: TFT
Warranty: 365 days Warranty
Product Line: Siemens MP270
Active power input, typ.: 12 W
MTBF backlighting (at 25 °C): 50 000 h
Number of colors: 65 536
Mounting position: vertical
Type of supply voltage DC


Related Simatic MP270 Part No. :

Siemens Multi Panel 270 Description Inventory status
6AV6545-0AH10-0AX0 MP270 6 TFT TOUCH In Stock
6AV6545-0AH10-0AX1 MP270 6 TFT TOUCH In Stock
6AV6545-6CA00-0BW0 MP270 6 TFT TOUCH In Stock
SIMATIC Multi Panel 270 Description Inventory status

Siemens MP270 HMI Manuals PDF Download:

  • 6AV6545-0AH10-0AX1 Siemens MP270 datasheet pdf
  • Siemens Simatic MP270 Panel manual


  • FAQ:

    Question: Which software for Siemens MP270 programming software?

    Answer:WinCC.WinCC (TIA Portal) is an engineering software for configuring SIMATIC Panels, SIMATIC Industrial PCs, and Standard PCs with the WinCC Runtime Advanced or the SCADA System.WinCC Runtime Professional visualization software.WinCC (TIA Portal) is available in four editions, depending on the configurable operator control.


    Question: What is the size of Siemens MP270 touch panel??

    Answer:The Siemens MP270 TouchScreen is 5.7-inch.It is 138.1 millimeter long and 109.4 millimeters wide.


    Question: What is the 6AV6545-0AH10-0AX1 Siemens MP270 HMI parts price?

    Answer: Submit a fast quote, send VICPAS an email for best price.
