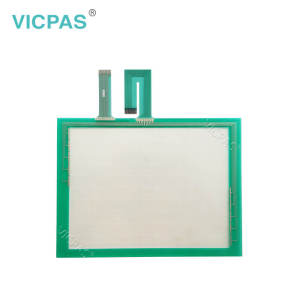

Schneider Magelis HMIGTO2300 HMI-GTO2300 Touch Screen Panel Protective Film repair replacement

Order each part separately is available

Schneider Magelis HMIGTO2300 HMI-GTO2300 Touch Screen Panel protective film

The HMIGTO2300 HMI touchscreen is a Schneider Magelis GTO HMI Panels 5.7" HMI that make use of a resistive touch screen panel. It come with a 5.7-inch analog resistive 4-wire touch screen and Dig 16 inputs/10 outputs. It also belongs to the monochrome controller pane.


When connecting the XBTZGI232, the COM port's pin 9 setting should be VCC. You can define COM port settings in Vijeo Designer or in the HMIGTO's offline menu. The RS-232C Isolation Unit works with only RS-422/485 (4 wire) communication.Cable-Gateway for Siemens Profibus / MPI (XBT ZG9292) is not supported by HMIGTO2300.


The Magelis HMIGTO2300touch panel 5.7 inch color touch controller panel - Dig 8 inputs/8 outputs +Ana 4 In/2 Out. The STN dispaly backlight allows dimming and energy efficient and the Pixel resolution with 320 x 240 pixels QVGA. The integrated design of the Magelis GTO HMI touchscreen delivers maximum functionality while keeping installation easy. Especially suitable for small machines and simple process control, its state-of-the-art display provides a crystal-clear readability.



Specifications:

The table below describes the parameters of the HMIGTO2300 touchscreen protective film.

Part Number : HMIGTO2300
Product Line: Magelis GTO Series
Touchscreen Size: 5.7 in.
Warranty: 1-Year Warranty
Touch Technology: Resistive Film (analog)
Resolution: DC 5V 1mA
Operating Temp.: 1024 X 1024
Storage Temp.: -20℃~+70℃
lineation test: ≥1.000.000 times
Input Type: ≥100.000 times
