6ES7272-1AA10-0YA0 Siemens TD200C Membrane Switch Shell
- Model
- 6ES7272-1AA10-0YA0
Item specifics
- Brand
- Siemens
- Warranty
- 180 Days
- Product Line
- Siemens TD 200C
- Width
- 137.5mm
- Height
- 65.5mm
- Supply
- Siemens TD200C membrane keyboard
- Model
- 6ES7272-1AA10-0YA0
Review
Description

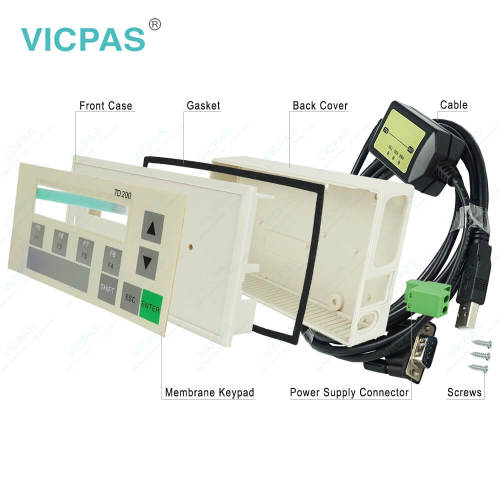

6ES7272-1AA10-0YA0 Siemens SIMATIC HMI TD200C Text display Membrane Keyboard, Power Supply Connector, Screws, Plastic Case Shell Repair Replacement
Order each part separately is available
6ES7272-1AA10-0YA0 SIMATIC S7-200, TD200C ADJUSTABLE Text Display for S7-200, 2-line, with cable (2.5m) and installation accessories, Configuration: with STEP 7-Micro/WIN
The Text Display 200 (TD 200) is a text display and operator interface for theS7-200 family of programmable logic controllers. This manual uses the termsprogrammable logic controller and S7-200 CPU (or CPU) interchangeably.
The following is a list of TD 200 features:
• Displays messages read from the S7-200 CPU.
• Allows adjustment of designated program variables.
• Provides ability to force/unforce I/O points.
• Provides ability to set the time and date for CPUs that have real-time clock
The TD 200 receives its power either from the S7-200 CPU through the TD/CPUcable or from a separate power supply.
VICPAS supply 6ES7272-1AA10-0YA0 Siemens TD200C membrane switch, Screws, Power Supply Connector and Enclosure with 6 months warranty and support Urgent Worldwide Shipping.
Specifications:
The table below describes the parameters of the 6ES7272-1AA10-0YA0 Siemens TD200C HMI Parts.
| Part Number : | 6ES7272-1AA10-0YA0 |
| Number of lines: | 2 |
| Character size: | 5 mm |
| Warranty: | 6-Months Warranty |
| Product Line: | Siemens TD200C |
| Rated value (DC): | 24 V |
| Number of digital outputs: | 16 |
| System keys: | YES |
| Keyboard fonts: | US English |
| Number of analog outputs | 2 |
Related Siemens Simatic TD200C Part No. :
| Siemens TD200C | Description | Inventory status |
| 6AG1272-1AA10-2YA1 | SIPLUS S7-200 TD200C | In Stock |
| 6AG1272-0AA30-2YA0 | SIPLUS S7-200 TD200 | In Stock |
| 6ES7272-1AA10-0YA1 | TD200C CUSTOMIZABLE TEXT DISPLAY,2 LINES | Available Now |
| 6ES7272-1AF00-7AA0 | TD200C FRONT FILM, BLANK | Available Now |
| 6ES7272-1AA10-0YA0 | TD200C CUSTOMIZABLE TEXT DISPLAY,2 LINES | Available Now |
| SIMATIC TD200C | Description | Inventory status |
Siemens TD200C series HMI Manuals PDF Download:
FAQ:
Question: What is the dimension of 6ES7272-1AA10-0YA0 Siemens TD200C membrane switch??
Answer:It is 137.5 millimeter long and 65.5 millimeters wide.
Question: Which software Support for Configuring a TD 200 ?
Answer:Some programming packages include a configuration utility for entering theparameter block and messages for the TD 200. For example, version 1.2.1 ofSTEP 7-Micro/DOS uses Utility 24 for configuring the TD 200. STEP 7-Micro/WINprovides a “wizard” that makes it easy to configure the parameter block and themessages in the data memory area of the S7-200 CPU (see Chapter 2). Refer toyour programming software and its documentation to determine whether itsupports a TD 200 configuration utility.
Question: What is the 6ES7272-1AA10-0YA0 Siemens TD200C mebrane switch and shell HMI parts price?
Answer: Submit a fast quote, send VICPAS an email for best price.
