B&R 5MP050.0653-03 Panel Glass Keypad Repair
- Model
- 5MP050.0653-03
Item specifics
- Brand
- B&R
- Size
- 6.5 inch
- Model
- B&R Mobile Panel 50 5MP050.0653-03
- Warranty
- 1 Year VICPAS Warranty
- Shipping
- DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX
Review
Description

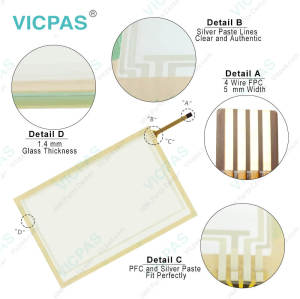

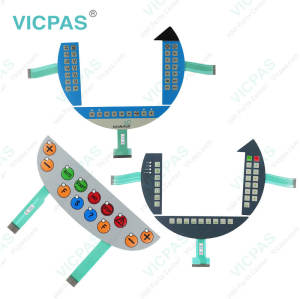

B&R Mobile Panel 50 5MP050.0653-03 Membrane Keypad Keyboard Touch Screen Glass Repair
Order each part separately is available
Mobile Panel 50 5MP050.0653-03 devices are wired systems, i.e. they are connected to the control cabinet using a cable. The following individual components are needed for operation:
• Control device including handle
• Attachment cables
The Mobile Panel 50 5MP050.0653-03 is equipped with two enable switches that are arranged on both sides of the device. It allows both left- and right-handed operation. Both enable switches are connected in parallel and have the exact safe effect on the shared safety circuits in the attachment cable. Only one enable switch must be enabled. The enable switch consists of a three-position control element and separate evaluation electronics. An important feature is the uniform dual-circuit design that spans everything from the control elements to the connection terminals. The evaluation circuits have been implemented using various technologies and switching circuitry. The electronic design of the switching contacts means that their service life remains independent of the load up to their rated values (resistive, inductive and capacitive).
Specifications:
The table below describes the parameters of the 5MP050.0653-03 Mobile Panel 50 Touchscreen Panel Membrane Keypad Keyboard.
| Part Number : | 5MP050.0653-03 |
| Product Line: | Mobile Panel 50 |
| Screen diagonal | 6.5 in |
| Warranty: | 365 Days Warranty |
| Input Power | 24 VDC |
| Display Type: | TFT color |
| Mounting position: | Vertical |
| Input Type: | Keypad |
| Serial interface Type: | RS232 |
| Storage | -20 to 70°C |
Related B&R Series Part No. :
| B&R Mobile Panel 50 | Description | Inventory status |
| 5MP050.0653-01 | B&R Mobile Panel 50 Touch Screen Panel Glass Operator Keyboard | In Stock |
| 5MP050.0653-02 | Mobile Panel 50 Touch Panel Glass Keyboard Membrane Replacement | Available Now |
| 5MP050.0653-03 | B&R Mobile Panel 50 Touch Screen Panel Switch Membrane Repair | In Stock |
| 5MP050.0653-04 | B and R Mobile Panel 50 Touch Digitizer Membrane Switch Replacement | Available Now |
| 5MP050.0653-K01 | Mobile Panel 50 HMI Touch Screen Organizer Switch Membrane | Available Now |
| 5MP050.0653-K03 | Mobile Panel 50 Touch Panel Keyboard Membrane Repair | In Stock |
| B and R MP50 | Description | Inventory status |
B&R Mobile Panel 50 Manuals PDF Download:
FAQ:
Question:How to creating a B&R Mobile Panel 50 DOS boot diskette in 5MP050.0653-03 Windows XP?
Answer:
• Place an empty 1.44 MB HD diskette in the disk drive.
• Open Windows Explorer.
• Right-click on the 3?" floppy icon and select "Format...".
• Then select the checkbox "Create an MS-DOS startup disk", press "Start" and acknowledge the warning message with "OK".
After creating the startup disk, some of the files must be deleted because of the size of the update. When doing this, all files (hidden, system files, etc.) must be shown on the diskette. In Explorer, go to the Tools menu, select Folder Options... and open the View tab. Now deactivate the option Hide protected operating system files (Recommended) (activated by default) and activate the option Show hidden files and folders.
Now all files (marked) except Command.com, IO.sys and MSDOS.sys can be deleted.
Question:How can the Mobile Panel 50 5MP050.0653-03 service life of backlights be extended?
Answer:
• Set the display brightness to the lowest value comfortable for the eyes.
• Use dark images.
• Reducing the brightness by 50% can increase the half-brightness time by approximately 50%.
