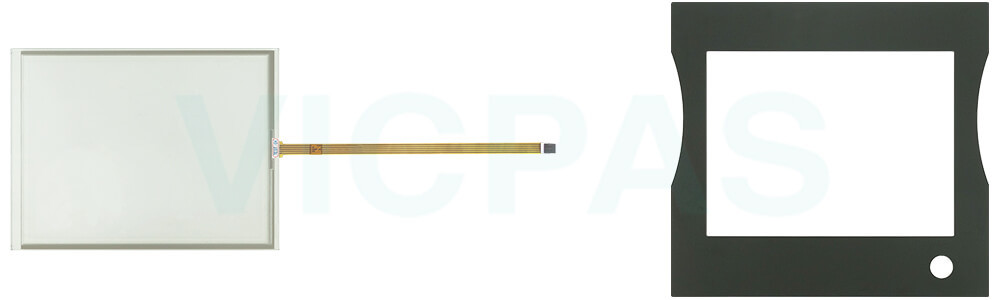

CP7202-0021-0010 CP7202-0021-0020 CP7202-0021-0030 Touchscreen Front Overlay
- Model
- CP7202-0021-0010 CP7202-0021-0020 CP7202-0021-0030
Item specifics
- Product Line
- CP72XX
- LCD Type
- TFT
- Shipping Time
- 3-5 Days
- Supply Parts
- Protective Film Touch Screen Panel
- Environment
- Free From Corrosive Gases
- Size
- 15''
Review
Description
Beckhoff CP7202-0021-0010 CP7202-0021-0020 CP7202-0021-0030 Touch Digitizer Protective Film Replacement
Order each part separately is available
Proceed as follows to attach Beckhoff HMI CP7202-0021-0010 CP7202-0021-0020 CP7202-0021-0030 Protective Film to the touch screen:
1. Ensure that the environment is as dust-free as possible.
2. Thoroughly clean the surface of CP7202-0021-0010 CP7202-0021-0020 CP7202-0021-0030 Touch Panel to be fitted with the film and remove all grease residues.
3. Detach the film from the backing at the short edge and place it on the surface.
4. Gradually remove the film from the backing. At the same time, use a doctor blade or other object with a soft rubber or felt edge to apply the film.
5. Brush away air bubbles towards the edge with a doctor blade or other object with a soft rubber or felt edge.
Beckhoff Touch Panel CP7202-0021-0010 CP7202-0021-0020 CP7202-0021-0030 Front Overlay is now fitted. You can use the Dimming, Screensaver and Cleaning mode functions with the Display Control Tool.
Proceed as follows to unpack Beckhoff Touch Screen CP7202-0021-0010 CP7202-0021-0020 CP7202-0021-0030 Touch Screen Tablet Protective Film:
1. Check the packaging for transport damage.
2. Remove packaging.
3. Keep the packaging for possible future transport.
4. Check your delivery for completeness by comparing it with your order.
5. Check the contents for visible shipping damage.
6. In case of discrepancies between the package contents and the order, or in case of transport damage, please inform Vicpas.
Specifications:
The table below describes the parameters of Beckhoff CP7202-0021-0010 CP7202-0021-0020 CP7202-0021-0030 Front Overlay Touch Screen Monitor.
| Storage Temperature: | -25 °C ... +65 °C |
| Warranty: | 365 Days |
| Operating Temperature: | 0 °C ... +55 °C |
| Brand: | Vicpas |
| Product Line: | CP72XX |
| Size: | 15'' |
| LCD Type: | TFT |
| Cooling Method: | Natural Air Cooling |
| Relative Humidity: | 95% |
| Environment: | Free From Corrosive Gases |
Related Beckhoff Part No. :
| Beckhoff HMI | Description | Inventory status |
| Beckhoff HMI | Description | Inventory status |
Beckhoff CP72XX Manuals PDF Download:
FAQ:
Question: What are the environment conditions during replacing my Beckhoff CP7202-0021-0010 CP7202-0021-0020 CP7202-0021-0030 HMI Touch Glass Front Overlay?
Answer:
• Keep CP7202-0021-0010 CP7202-0021-0020 CP7202-0021-0030 Protective Film Touchscreen away from extreme environmental conditions.
• Shield it from dust, moisture, and excessive heat.
• Avoid installing it in areas with poor air circulation.
Question: Can I replace my existing Beckhoff Touchscreen with VICPAS products myself?
Answer:Yes. VICPAS provides high-quality Touch Panel compatible with Beckhoff devices. They are designed for easy self-installation or replacement of older, non-functioning components, helping extend the life of your equipment while ensuring reliable performance.
Question: What is the price of Beckhoff CP7202-0021-0010 CP7202-0021-0020 CP7202-0021-0030 Front Overlay Touch Digitizer Glass?
Answer: Submit a fast quote, send VICPAS an email for best price.
