CP6701-0000-0040 CP6701-0001-0040 CP6701-0020-0040 CP6701-0021-0040 HMI Touch Glass
- Model
- CP6701-0000-0040 CP6701-0001-0040 CP6701-0020-0040 CP6701-0021-0040
Item specifics
- Product Line
- CP67XX
- LCD Type
- TFT
- Shipping Time
- 3-5 Days
- Supply Parts
- Touch Digitizer Glass
- Environment
- Free From Corrosive Gases
- Size
- 12''
Review
Description

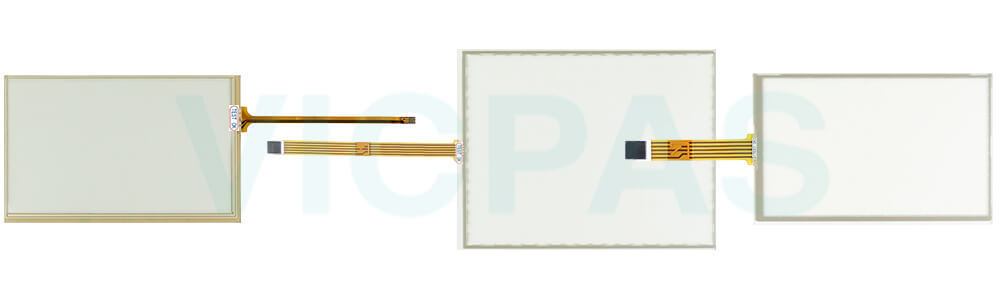

Beckhoff CP6701-0000-0040 CP6701-0001-0040 CP6701-0020-0040 CP6701-0021-0040 Touch Membrane Repair
Order each part separately is available
Application conditions
• Do not replace CP6701-0000-0040 CP6701-0001-0040 CP6701-0020-0040 CP6701-0021-0040 Touch Screen Display under extreme environmental conditions.
• Only use the device in hazardous areas if it is explicitly designed for this purpose.
• Never plug or unplug connectors during thunderstorms. There is a risk of electric shock.
• Ensure that the device has a protective and functional earth connection during replace Beckhoff HMI CP6701-0000-0040 CP6701-0001-0040 CP6701-0020-0040 CP6701-0021-0040 Touch Panel.
Damage to property, loss of data and impairment of functions
• If you change the hardware and software configurations, you must keep within the specified limits of power consumption and power loss (please refer to the respective data sheet).
• Ensure that only trained specialists with a control and automation engineering background, replace Beckhoff Touch Screen CP6701-0000-0040 CP6701-0001-0040 CP6701-0020-0040 CP6701-0021-0040 Touch Digitizer Glass. Use by unauthorized persons can lead to damage to property and loss of data.
• In the case of a 24 V DC power supply unit, fuse the power supply line according to its cross-section to protect the supply line in the event of a short circuit.
• In case of fire, extinguish the device with powder or nitrogen.
Vicpas supplies Beckhoff CP6701-0000-0040 CP6701-0001-0040 CP6701-0020-0040 CP6701-0021-0040 Touch Membrane with 365-day warranty and support urgent worldwide shipping.
Specifications:
The table below describes the parameters of Beckhoff CP6701-0000-0040 CP6701-0001-0040 CP6701-0020-0040 CP6701-0021-0040 Touch Screen Display.
| Light Transmission: | Above 75% |
| LCD Type: | TFT |
| Environment: | Free From Corrosive Gases |
| Cooling Method: | Natural Air Cooling |
| Brand: | Vicpas |
| Product Line: | CP67XX |
| Warranty: | 365 Days |
| Storage Temperature: | -25 °C ... +65 °C |
| Relative Humidity: | 95% |
| Operating Temperature: | 0 °C ... +55 °C |
Related Beckhoff Part No. :
| Beckhoff HMI | Description | Inventory status |
| Beckhoff HMI | Description | Inventory status |
Beckhoff CP67XX Manuals PDF Download:
FAQ:
Question: What should I pay attention to when installing CP6701-0000-0040 CP6701-0001-0040 CP6701-0020-0040 CP6701-0021-0040 HMI Touch Glass Terminal Keypad?
Answer:
• Position the Panel PC in such a way that reflections on the screen are avoided as far as possible.
• Use the position of the screen as a guide for the correct installation height; it should be optimally visible for the user at all times.
• The Panel PC should not be exposed to direct sunlight.
• When the unit is in its mounting position, the ventilation openings must not be obstructed.
• Extreme environmental conditions should be avoided as far as possible. Protect the Panel PC from dust, moisture and heat.
• The ventilation slots of the Panel PC must not be covered.
Question: What should I do when I received the package of Beckhoff CP6701-0000-0040 CP6701-0001-0040 CP6701-0020-0040 CP6701-0021-0040 Touch Digitizer Glass?
1. Inspect the packaging for any damage that may have occurred during transit.
2. Carefully remove the packaging.
3. Keep the packaging for potential future shipping.
4. Verify that all items are included by comparing the delivery with your order.
5. Check the contents for any visible shipping damage.
6. If any items are missing or damaged, please contact VICPAS immediately.
