ATV212HD11M3X ATV212HD11N4 Schneider Operator Panel Keypad
- Model
- ATV212HD11M3X ATV212HD11N4
Item specifics
- Brand
- Schneider
- Warranty
- 365 Days
- Supply
- Schneider ATV212HD11M3X Operator Keyboard
- Supply
- ATV212HD11N4 Keypad Membrane Replacement
- Product Line
- Schneider ATV212
Review
Description

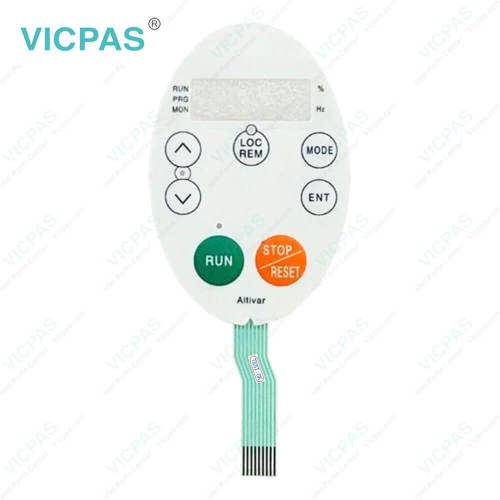

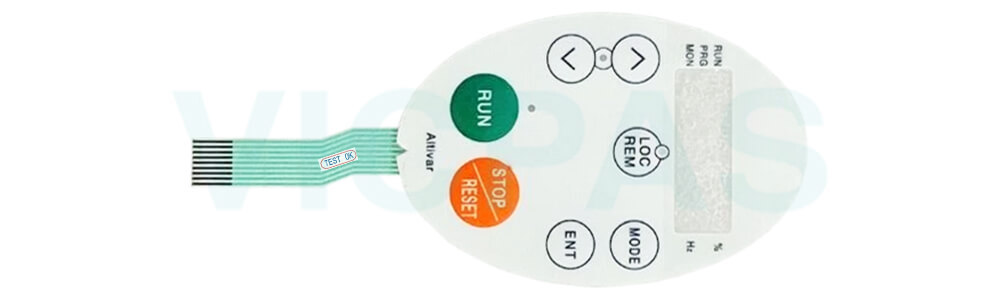

Schneider Altivar 212 ATV212HD11M3X ATV212HD11N4 Keypad Membrane Switch Repair Replacement
The membrane keypad switch for Schneider Electric Altivar 212 variable speed drives (models ATV212HD11M3X and ATV212HD11N4), available from VICPAS, is a robust and space-saving human-machine interface designed specifically for controlling asynchronous motors in HVAC, pumping, and industrial applications.
Featuring a durable seven-key membrane layout, this ATV212HD11M3X ATV212HD11N4 Terminal Keypad offers quick setup, basic drive operation, and fault reset functionality. Its sealed, tactile surface protects against dust, humidity, and repeated use—ideal for demanding environments such as conveyor systems, fans, and industrial automation panels.
Compatible with Modbus RTU communication (via integrated RS485 port), the keypad allows real-time parameter access and easy system integration. This ATV212HD11M3X ATV212HD11N4 Keyboard Membrane can offer a streamlined solution for operators needing straightforward interaction with Altivar 212 drives. Trust VICPAS for quality components tailored to your automation needs.
Specifications:
The table below describes the parameters of the Schneider ATV212HD11M3X ATV212HD11N4 Operator Panel Keypad.
| Part Number: | ATV212HD11M3X ATV212HD11N4 |
| Motor Power Rating: | 11 kW / 15 HP |
| Warranty: | 365 Days Warranty |
| Ingress Protection: | IP21 (cabinet-mounted) |
| Range of Product: | Altivar 212 |
| Operating Temp.: | -10°C to +50°C |
| Storage Temp.: | -25 °C to 70 °C |
| Relative Humidity: | ≤95% non-condensing |
Related Schneider Altivar 212 Part No. :
| Schneider Altivar 212 | Description | Inventory status |
| Schneider ATV212 | Description | Inventory status |
Schneider ATV212 HMI Manuals PDF Download:
FAQ:
Question: What is RTU mode?
Answer: ATV212 supports RTU mode.
The Modbus RTU frame contains no message header byte, nor end of message bytes.
It is defined as follows:
The data is transmitted in binary code.
CRC16: Cyclic redundancy check parameter.
The end of the frame is detected on a silence greater than or equal to 3 characters.
The master must not introduce a space of more than 3.5 characters in a frame; otherwise the drive may
recognize it as a start of new frame.
Question: Is the keyboard of the ATV212HD11M3X ATV212HD11N4 unit replaceable?
Answer: Yes, the membrane keypad of ATV212HD11M3X ATV212HD11N4 can be replaceable.
