5PC725.1505-00 5PC725.1505-01 Protective Film Touch Glass
- Model
- 5PC725.1505-00 5PC725.1505-01
Item specifics
- Touch screen panel type
- Resistance touch screen
- Size
- 15 inch
- Brand
- B&R
- Warranty
- 1 Year VICPAS Warranty
- Model
- B&R Panel PC 725 5PC725.1505-00 5PC725.1505-01
- Shipping
- DHL/FedEx/UPS/TNT/EMS/Aramex /DPEX
Review
Description

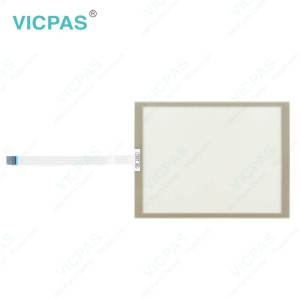

B&R Panel PC 725 5PC725.1505-00 5PC725.1505-01 Touch Panel Protective Film Repair
Order each part separately is available
The 5PC725.1505-00 5PC725.1505-01 Front Overlay Touch Digitizer Panel PC 725 is designed exclusively for operation in the field. Built with IP65 protection from all sides, it can easily handle splashed water, impacts and vibrations. Support arm mounting allows flexible positioning, providing an ergonomic user interface even in cramped spaces. Panel PCs with IP65 protection usually require expensive IP65 connectors, whereas the cabling for the Panel PC 725 is fed through the flange. This makes it possible to use inexpensive standard cables.
The 5PC725.1505-00 5PC725.1505-01 Protective Film Touch Screen Panel PC 725 provides extensive PC resources in a highly compact design. With two Ethernet interfaces, three USB 2.0 ports and a serial interface, communication is ensured both at the machine level as well as across the company network. Interfaces are easy to access behind the flange cover. A separate cover conceals the battery and CompactFlash card, making servicing a cinch.
Specifications:
The table below describes the parameters of the 5PC725.1505-00 5PC725.1505-01 Panel PC 725 Touchscreen Panel Front Overlay.
| Part Number: | 5PC725.1505-00/01 |
| Product Line: | Panel PC 725 |
| Screen Diagonal: | 15 in |
| Warranty: | 365 Days Warranty |
| Input Power: | 24 VDC |
| Display Type: | TFT color |
| Touch Screen Type: | AMT |
| Panel Overlay: | Polyester |
| Touchscreen Technology: | Analog, resistive |
| Storage Temperature: | -20 to 60°C |
Related B&R Panel PC Series Part No. :
| Panel PC Series | Description | Inventory status |
| 5PC725.1505-00 | Panel PC 725 Touch Screen Glass Protective Film Replacement | In Stock |
| 5PC725.1505-01 | PPC725 B and R Touch Panel Glass Front Overlay Repair | Available Now |
| 5PC725.1505-K01 | B&R Panel PC 725 Front Overlay Touch Screen Panel Replacement | In Stock |
| 5PC725.1505-K03 | B and R Panel PC 725 Protective Film Touch Digitizer Repair | In Stock |
| 5PC725.1505-K06 | Panel PC 725 B&R HMI Touch Screen Organizer Front Overlay Replacement | In Stock |
| 5PC725.1505-K09 | B and R Panel PC 725 Touch Panel Glass Repair Replace | In Stock |
| 5PC725.1505-K14 | PPC725 B&R Touch Screen Panel Repair Replacement | Available Now |
| 5PC725.1505-K15 | Panel PC 725 B&R Touch Membrane Replacement Repair | In Stock |
| 5PC725.1505-K18 | B and R Panel PC 725 Touch Digitizer Glass Replacement | Available Now |
| 5PC781.1043-00 | Panel PC 781 B&R HMI Touch Screen Organizer Replacement Repair | In Stock |
| 5PC781.1505-00 | B and R Panel PC 781 Touch Panel Glass Replacement | In Stock |
| 5PC782.1043-00 | PPC782 B&R Touch Screen Organizer Repair Replacement | Available Now |
| B and R PPC | Description | Inventory status |
B&R Panel PC Manuals PDF Download:
FAQ:
Question: How to replace the 5PC725.1505-00 5PC725.1505-01 battery?
Answer:
• Disconnect the power supply to the B&R 5PC725.1505-00 5PC725.1505-01 Industrial PC.
• Touch the 5PC725.1505-00 5PC725.1505-01 housing or ground connection in order to discharge any electrostatic charge from your body.
• Remove the 5PC725.1505-00 5PC725.1505-01 cover from the battery compartment and carefully pull out the battery using the removal strip.
• The battery should not be held by its edges. Insulated tweezers may also be used to insert the battery.
• Insert the new battery with the correct polarity.
• To make the next battery replacement easier, be sure the removal strip is in place when inserting the battery.
• Reconnect the power supply to the B&R Industrial PC (plug in the power cable).
• Reset the date and time in BIOS.
