MT509 MT509MV4EV-2 MT509LV4EV Touchscreen Protective Film
- Model
- MT509 MT509MV4EV-2 MT509LV4EV
Item specifics
- Warranty
- 365 Days
- Shipping
- 2-4 workdays
- Brand
- Weinview
- Product Line
- MT500 Series
- Supply Parts
- Front Overlay Touch Membrane
- Size
- 9''
- Touch Type
- Resistive
Review
Description

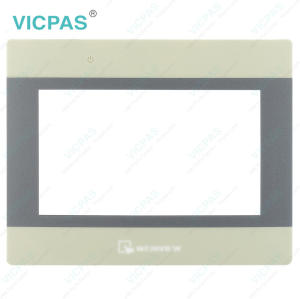

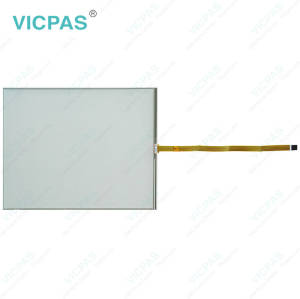

Weinview MT500 Series MT509 MT509MV4EV-2 MT509LV4EV Touch Panel Front Overlay Repair
Precautions
Please observe the following precautions when installing the Weintek Weinview MT500 Series. Failure to comply with these restrictions could result in loss of life, serious personal injury, or MT509 MT509MV4EV-2 MT509LV4EV Touch Screen Monitor Protective Film damage.
1. Do not operate the device in areas subject to explosion due to flammable gases, vapors, or dusts. It will also do harm to MT509 MT509MV4EV-2 MT509LV4EV Touchscreen Front Overlay.
2. Do not connect the unit to an AC power source. You will cause permanent damage to it.
3. Do not attempt to use a DC power supply that does not meet the power requirements. You may cause malfunction or permanent damage.
4. Do not power the device with a DC power supply used for inductive loads or for input circuitry to the programmable logic controller. Severe voltage spikes caused by these devices may cause the damage to MT509 MT509MV4EV-2 MT509LV4EV Protective Film Touch Screen Tablet.
5. Care should be taken when locating Weinview HMI MT509 MT509MV4EV-2 MT509LV4EV Front Overlay MMI Panel Screen behind the device to ensure that AC power wiring, PLC output modules, contactors, starters, relay and any other source of electrical interference are located away from the unit. Particular care should be taken to locate variable speed drives and switching power supplies away from the MT500 Series.
Specifications:
The table below describes the parameters of the Weinview MT500 Series MT509 MT509MV4EV-2 MT509LV4EV Touch Screen Glass Protective Film.
| Touch Size: | 9'' |
| Display Type : | TFT LCD |
| Brand: | Weinview |
| Relative Humidity: | 10% ~ 90% |
| Environment: | Free From Corrosive Gases |
| Touch Panel: | 4-Wire Resistive Type |
| Light transmission: | Above 80% |
| Product Line: | MT500 Series |
| Operating Temperature: | 0~45°C |
| Storage Temperature: | -20~60°C |
Related Weinview HMI No. :
| Weinview HMI | Description | Inventory status |
| MT508TE45 MT508TV45 MT508SE4 | Weinview MT500 Series Touchscreen Front Overlay Replacement | In Stock |
| MT508TV45GEV MT508TV45GWV MT508TV45WV | Weinview MT500 Series Protective Film Touch Digitizer Repair | Available Now |
| MT508TV5WV | Weinview MT500 Series Front Overlay Touch Panel Replacement | In Stock |
| MT509 MT509MV4EV-2 MT509LV4EV | Weinview MT500 Series MMI Panel Screen Protective Film Repair | Available Now |
| MT509L MT509MV MT509MV4EV | Weinview MT500 Series Front Overlay Touch Membrane Replacement | In Stock |
| MT509LV3EV MT509LV3CN MT509LV4CN | Weinview MT500 Series HMI Touch Glass Protective Film Repair | Available Now |
| MT510 MT510L MT510TE MT510TV5WV 001 | Weinview MT500 Series Touch Screen Monitor Front Overlay Replacement | In Stock |
| MT510SV4MV MT510SV4EN MT510LV4CN | Weinview MT500 Series Protective Film Touch Screen Tablet Repair | Available Now |
| MT510T MT510TV3CN MT510TV4WV MT510TV4CN | Weinview MT500 Series Touch Screen Film Front Overlay Replacement | In Stock |
| MT510TE4 MT510TV4CH MT510VT4CN | Weinview MT500 Series Protective Film Touch Membrane Replacement | In Stock |
| MT510TV4EV MT510TV4GWV MT510SV3CN | Weinview MT500 Series Front Overlay Touch Screen Glass Repair | Available Now |
| Weinview HMI | Description | Inventory status |
Weinview HMI Manuals PDF Download:
FAQ:
Question: How can I protect the Weinview MT509 MT509MV4EV-2 MT509LV4EV Touch Screen Panel Front Overlay?
Answer:
• Avoid Direct Sunlight: Keep the touch screen out of prolonged exposure to direct sunlight, which can cause overheating and degrade the screen material over time.
• Moisture Protection: Ensure the device is stored in a dry environment. High humidity or condensation can lead to damage, including electrical short circuits and screen malfunction.
• Physical Protection: Avoid placing heavy objects on the screen, as pressure can damage the front overlay, leading to cracks or impairing touch sensitivity.
• Clean Properly: Use a soft, lint-free cloth for cleaning the touch screen. Do not use harsh chemicals or abrasive materials that could scratch or damage the protective film.
Question: What is the price of Weinview MT509 MT509MV4EV-2 MT509LV4EV Protective Film HMI Touch Glass?
Answer: Submit a fast quote, send VICPAS an email for best price.
