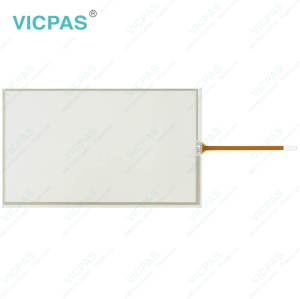

1302-253 CTTI 1302-253 C TTI Touch Digitizer Glass
1302-253 CTTI 1302-253 C TTI Touch Digitizer Glass
Model
1302-253 CTTI 1302-253 C TTI

Item specifics

Brand
TTI Touch Screen
Warranty
365 Days
Supply
TTI HMI Touchscreen Panel
Touch Screen Type
Resistance touch screen
Part Number
1302-253 CTTI 1302-253 C TTI

Review

Description

1302-253 CTTI 1302-253 C TTI MMI Touch Glass Replacement Repair


1302-253 CTTI 1302-253 C TTI Touch Screen Panel Replacement

Please pay attention for the matter as stated below at mounting design of 1302-253 CTTI 1302-253 C TTI touch panel & enclosure:
1. Enclosure support to fix 1302-253 CTTI 1302-253 C TTI touch panel glass must be out of view (transparent) area. (Do not design enclosure presses the view area to protect from miss input).
2. Enclosure edge must be between view area & guaranteed active area. (Enclosure edge must not touch with view area).
3. We recommend the material of support to fix 1302-253 CTTI 1302-253 C TTI touch screen panel is an elastic material.
4. Do not bond top surface (film) of 1302-253 CTTI 1302-253 C TTI panel glass with enclosure.
5. The corner parts (fig.*) have conductivity. Do not touch any metal part after mounting.
6. Special design is required for water resistance use.
7. Cleaning 1302-253 CTTI 1302-253 C TTI Touch Digitizer by Air gun, pressure 2kg/cm2 below is suggested. This is preventing FPC to peel off when air is blowing to FPC from 1302-253 CTTI 1302-253 C TTI touch screen monitor side.
8. The mounting structure must have a reserved space for the FPC tail and never touch or squeeze the FPC by case or other components preventing FPC to peel off. Assembly space is recommended at least 4mm.


VICPAS supply 1302-253 CTTI 1302-253 C TTI touch panel glass with 365 days warranty and support Urgent Worldwide Shipping.





Specifications:

The table below describes the parameters of the 1302-253 CTTI 1302-253 C TTI HMI Touch Membrane.

Part Number: 1302-253 CTTI 1302-253 C TTI
Warranty: 1-Year Warranty
Number of Touches: Single
Storage Temperature: -20˚C to 70˚C
Operating Temperature: -5˚C to 60˚C
Product Line: TTI Touch Panel
Tail Options: FPC tail
Response time: ≦ 30ms
Storage Humidity: 10% to 90% RH
Operating Humidity: 20% to 85% RH


Related TTI Touch Screen HMI Part No. :

TTI Touch Screen Description Inventory status
1302-250 BTTI TTI Touch Screen Monitor Repair In Stock
1302-253 CTTI TTI Touch Screen Glass Replacement In Stock
1302-254 ATTI TTI Touch Screen Panel Replacement Available Now
1302-524 CTTI TTI HMI Touch Panel Replacement Available Now
TTI Touch Panel Description Inventory status

FAQ:

Question: What is the dimension of the 1201-680 B TTI Touch Screen Monitor?

Answer: The 1302-253 CTTI 1302-253 C TTI touchscreen panel is 9.4 inch.


Question: What is the 1302-253 CTTI 1302-253 C TTI HMI Touch Screen Panel Glass price?

Answer: Submit a fast quote, send VICPAS an email for best price.
