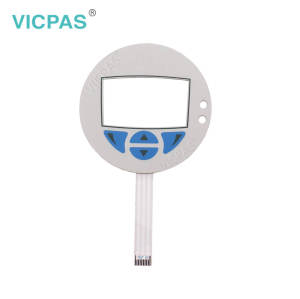

Process Panel 245 PP245 3BSC690103R2 Terminal Keypad
- Model
- PP245 3BSC690103R2
Item specifics
- Warranty
- 365 Days
- Product Line
- Process Panel 245
- Supply
- Membrane Keyboard
- Shipping
- 2-3 workdays
- Part Number
- PP245 3BSC690103R2
- Brand
- VICPAS
Review
Description
Process Panel PP245 3BSC690103R2 Operator Keyboard Repair Replacement
All Process Panel 245 are developed to satisfy the demands of human-machine communication. Built-in functions such as displaying and controlling text, dynamic indication, time channels, alarm and recipe handling are included. The Process Panel 245 works primarily in an object-oriented way, making it easy to understand and use. Configuration is carried out on a PC using the Panel Builder configuration tool. The project can then be transferred and stored in the operator panel itself.
During Use
• Keep the PP245 3BSC690103R2 Switch Membrane operator panel clean.
• Emergency stop and other safety functions may not be controlled from the operator panel.
• Do not use excessive force or sharp objects when PP245 3BSC690103R2 Terminal Keypad operating the touch screen.
The layer structure of the PP245 3BSC690103R2 touch screen contains air and in rare cases appearance of bubbles can arise. This is purely cosmetic and does not affect any functionality of the PP245 3BSC690103R2 Membrane Keyboard operator panel. The appearance can occur under certain environmental conditions such as temperature, humidity, and atmospheric pressure.
Specifications:
The table below describes the parameters of the PP245 3BSC690103R2 Membrane Keypad Process Panel 245 Terminal.
| Brand: | VICPAS |
| Part Number: | 3BSC690103R2 |
| Relative Humidity: | 5 - 85 % non-condensed |
| Warranty: | 365 Days |
| Display Type: | TFT-LCD |
| Backlight: | CCFL/LED |
| Backlight Lifetime: | 50,000 hours |
| Operating Temperature: | -10 °C to +60 °C |
| Screen Brightness: | 450 cd/m2 |
| Storage Temperature: | -20 °C to +70 °C |
Related Process Panel Terminals Part No. :
| Process Panel | Description | Inventory status |
| PP114 3BSC690097R1 | Process Panel 114 Membrane Keyboard Keypad Repair | In Stock |
| PP114 3BSC690097R2 | Process Panel 114 Operator Keyboard Replacement Repair | In Stock |
| PP210 3BSC690098R2 | Process Panel 210 Series Operator Panel Keypad Repair | Available Now |
| PP220 3BSC690099R1 | Process Panel 220 Membrane Keypad Switch Replacement | Available Now |
| PP220 3BSC690099R2 | Process Panel 220 Series Membrane Keyboard | In Stock |
| PP235 3BSC690102R1 | Process Panel 235 Series Membrane Keypad Replacement | In Stock |
| PP235 3BSC690102R2 | Process Panel 235 Series Terminal Keypad Replacement | Available Now |
| PP245 3BSC690103R1 | Process Panel 245 Series Keyboard Membrane Repair | In Stock |
| PP245 3BSC690103R2 | Process Panel 245 Series Keypad Membrane Replacement | Available Now |
| PP245B 3BSC690126R2 | Process Panel 245B Series Switch Membrane Repair | In Stock |
| PP320 3BSC690100R1 | Process Panel 320 Series Touch Screen Replacement | In Stock |
| PP320 3BSC690100R2 | Process Panel 320 Series Touch Screen Monitor Replacement | In Stock |
| PP325 3BSC690101R2 | Process Panel 325 Series Touch Digitizer Glass Repair | Available Now |
| PP345 3BSC690104R1 | Process Panel 345 HMI Panel Glass Replacement | In Stock |
| PP345 3BSC690104R2 | Process Panel 345 Series HMI Touch Glass Replacement | Available Now |
| PP345B 3BSC690127R2 | Process Panel 345B Series MMI Touch Panel Replacement | In Stock |
| Process Panel Repair | Description | Inventory status |
Process Panel HMI Manuals PDF Download:
FAQ:
Question: What is the price of PP245 Process Panel 245 3BSC690103R2 Membrane Switch?
Answer: Submit a fast quote, send VICPAS an email for best price.
Question: PP820A Installation Space Requirements
Solution:
• Maximum installation plate thickness: 1.5 - 7.5 mm (0.06 - 0.3 inch)
• Space requirements in millimeters when installing the PP820A Membrane Keyboard Keypad operator panel:
