Model
6AV2128-3KB06-0AX0

Item specifics

Brand
Siemens
Size
10.1 inch
Warranty
365 Days
Product Line
SIMATIC HMI Unified Comfort Panels Series
Supply

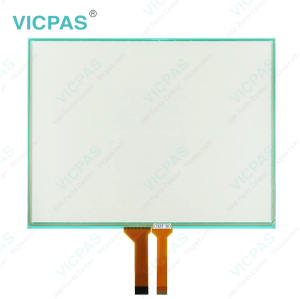

MTP1000 Touch Screen Panel Glass Front Overlay
Shipping
2-4 workdays
Part Number
6AV21283KB060AX0
Part Number
6AV2 128-3KB06-0AX0
Part Number
6AV2128-3KB06-0AX0

Review

Description

SIMATIC HMI Unified Comfort Panels 6AV2128-3KB06-0AX0 Touch Screen Protective Film Replacement

Order each part separately is available

SIMATIC HMI MTP1000 Unified Comfort 6AV2128-3KB06-0AX0 Touch Screen Front Overlay Repair Replacement

Functions of the 6AV2128-3KB06-0AX0 capacitive multi-touch screen

General functions
● Detection of up to 5 finger touches at a time.
● Recognition of the gestures supported by the operating system and the runtime software.
● You do not need to calibrate the 6AV2128-3KB06-0AX0 Touch Panel Front Overlay HMI capacitive multi-touch screen.

Security functions in an industrial environment
The 6AV2128-3KB06-0AX0 capacitive multi-touch screen is locked for security reasons when the following disturbances occur:
● There is a conductive liquid on the 6AV2128-3KB06-0AX0 touch screen with ground contact via the enclosure or the operator, for example.
● An electromagnetic disturbance that exceeds the specification in the technical data of the device exerts an influence.
Once the interference is over, the 6AV2128-3KB06-0AX0 Front Overlay Touch Screen Terminal capacitive multi-touch screen is no longer locked.


VICPAS supply SIMATIC HMI MTP1000 Unified Comfort 6AV21283KB060AX0 6AV2 128-3KB06-0AX0 6AV2128-3KB06-0AX0 Protective Film and Touch Panel with 365 days warranty and support Urgent Worldwide Shipping.




Specifications:

The table below describes the parameters of the SIMATIC HMI Unified Comfort Panels 6AV2128-3KB06-0AX0 Protective Film Touch Panel HMI Parts.

Ambient Humidity: 10 to 90 % RH
Backlight: LED
Brand: Siemens
Display Resolution: 1280 x 800 pixels
Display Colors: Up to 16.7 million
Part Number: 6AV2128-3KB06-0AX0
Product Line: HMI Unified Comfort Panels
Power supply: 24 V DC
Storage Temperature: -20°C (-4°F) to 60°C (140°F)
Warranty: 365 Days


Related SIMATIC HMI Unified Comfort Panels Series HMI Part No. :

Unified Comfort Panel Description Inventory status
6AV2128-3GB06-0AP0 SIMATIC HMI MTP700 Unified Comfort Touch Membrane Repair In Stock
6AV2128-3GB06-0AX0 SIMATIC HMI Unified Comfort Panels Series Touch Glass Repair In Stock
6AV2128-3GB06-0AX1 SIMATIC HMI Unified Comfort Panels Series Touch Digitizer Glass Repair Available Now
6AV2128-3GB36-0AX0 SIMATIC HMI MTP700 Unified Comfort HMI Panel Glass Replacement Available Now
6AV2128-3GB36-0AX1 SIMATIC HMI Unified Comfort Panels Series Touch Screen Monitor In Stock
6AV2128-3KB06-0AP0 SIMATIC HMI Unified Comfort Panels Series MMI Touch Screen Replacement In Stock
6AV2128-3KB06-0AX0 SIMATIC HMI Unified Comfort Panels Series HMI Touch Screen Panel Available Now
6AV2128-3KB06-0AX1 SIMATIC HMI Unified Comfort Panels Series Touchscreen Repair In Stock
6AV2128-3KB36-0AX0 SIMATIC HMI Unified Comfort Panels Series HMI Touch Screen Glass Available Now
6AV2128-3KB36-0AX1 SIMATIC HMI Unified Comfort Panels Series Touch Digitizer Repair In Stock
6AV2128-3MB06-0AP0 SIMATIC HMI MTP1200 Unified Comfort Series Touch Screen Replacement In Stock
6AV2128-3MB06-0AX0 SIMATIC HMI MTP1200 Unified Comfort Series Touch Panel Repair In Stock
6AV2128-3MB06-0AX1 SIMATIC HMI MTP1200 Unified Comfort Touch Membrane Repair Available Now
6AV2128-3MB36-0AX0 SIMATIC HMI Unified Comfort Panels Series HMI Panel Glass Repair In Stock
6AV2128-3MB36-0AX1 SIMATIC HMI Unified Comfort Panels Series Touch Digitizer Glass Available Now
SIMATIC MTP HMI Description Inventory status


SIMATIC HMI Unified Comfort Panels Series HMI Manuals PDF Download:

  • 6AV21283KB060AP0 Datasheet
  • 6AV21283KB060AX0 Datasheet
  • 6AV21283KB060AX1 Datasheet
  • 6AV21283KB360AX0 Datasheet
  • 6AV21283KB360AX1 Datasheet
  • HMI Unified Comfort Panels Operating Instructions
  • Presentation - WinCC Unified

  • FAQ:

    Question: What is the display size of SIMATIC HMI MTP1000 Unified Comfort Series 6AV2128-3KB06-0AX0 Touchscreen Panel Front Overlay?

    Answer: The 6AV2 128-3KB06-0AX0 Protective Film HMI Panel Glass is 10.1 inch.


    Question: How to remove the 6AV2128-3KB06-0AX0 device?

    Answer: Proceed as follows:
    1. If a project is running on the HMI device, close the project with the HMI device configured for this purpose. Wait until the Control Panel is displayed.
    2. Switch off power to the 6AV2 128-3KB06-0AX0 Front Overlay Touch Screen Monitor HMI device.
    3. When you use the HMI device in a hazardous area, make sure that one of the two following requirements is met: The area is no longer hazardous or the device and its plugin connections are de-energized.
    4. Remove all cable ties on the HMI device used for strain relief.
    5. Remove all plug-in connectors and the equipotential bonding cable from the HMI device.
    6. Secure the HMI device so that it cannot fall out of the mounting cutout.
    7. Loosen the screws of the mounting clips and remove all mounting clips.
    8. Take the 6AV21283KB060AX0 Touch Digitizer Glass Protective Film HMI device out of the mounting cutout.
